Basic Specifications
Application:
Drinks, Pharmaceutical & Medical
Type:
Forming Filling Sealing Machine
Packaging:
Cartons / Paper
Key Selling Points:
Easy to Operate

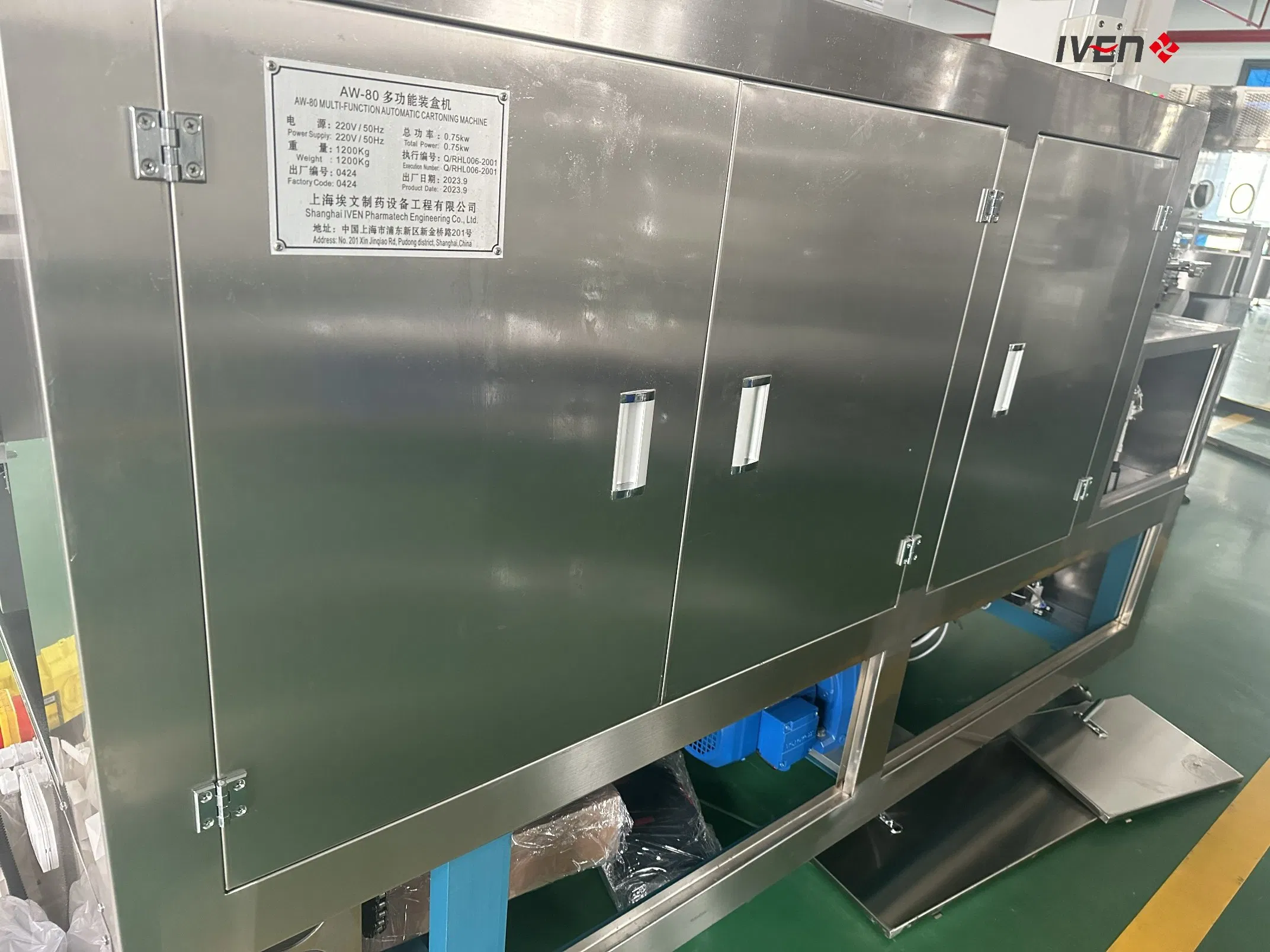

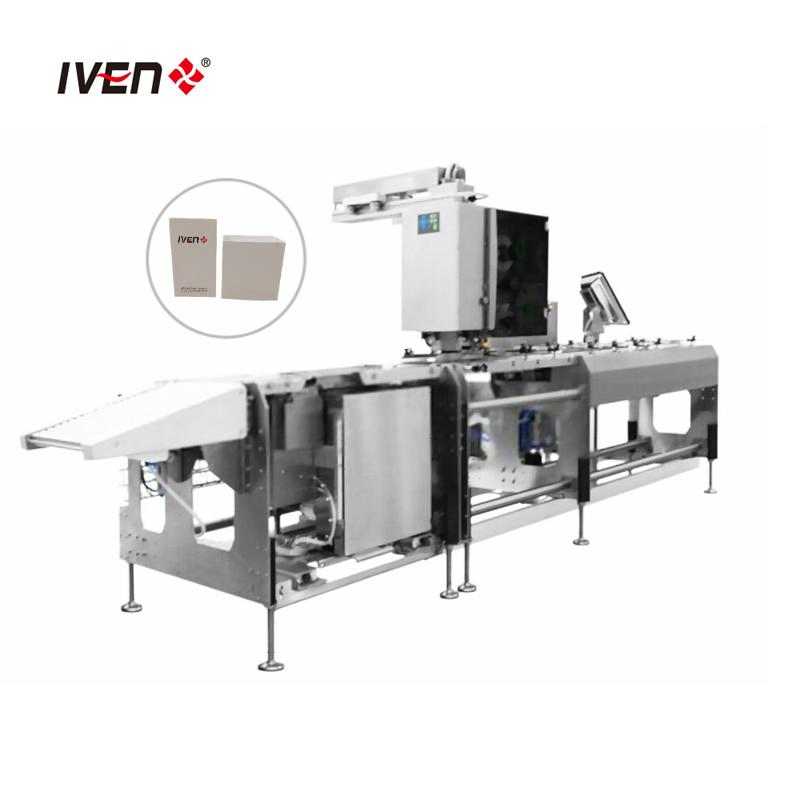

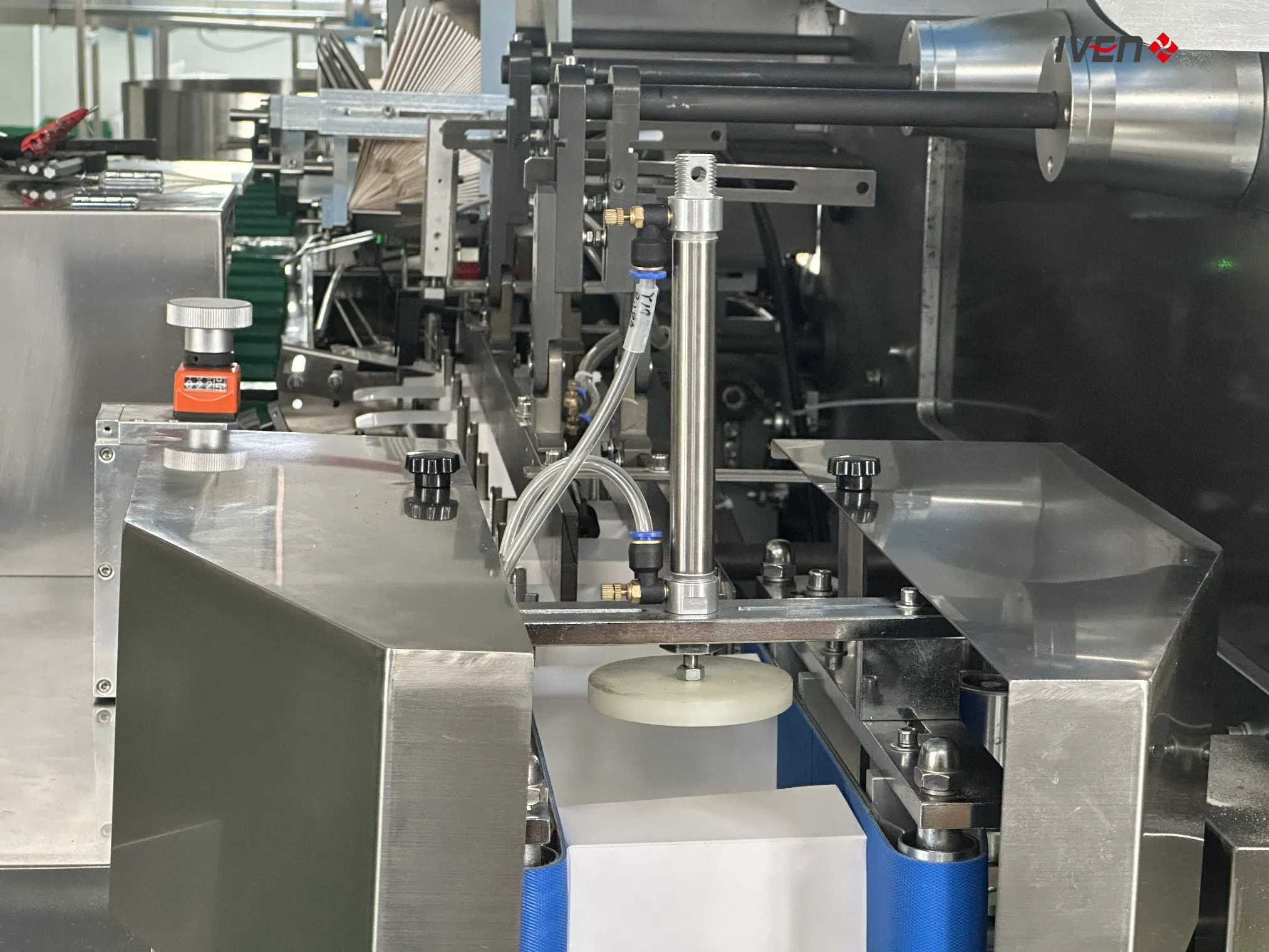

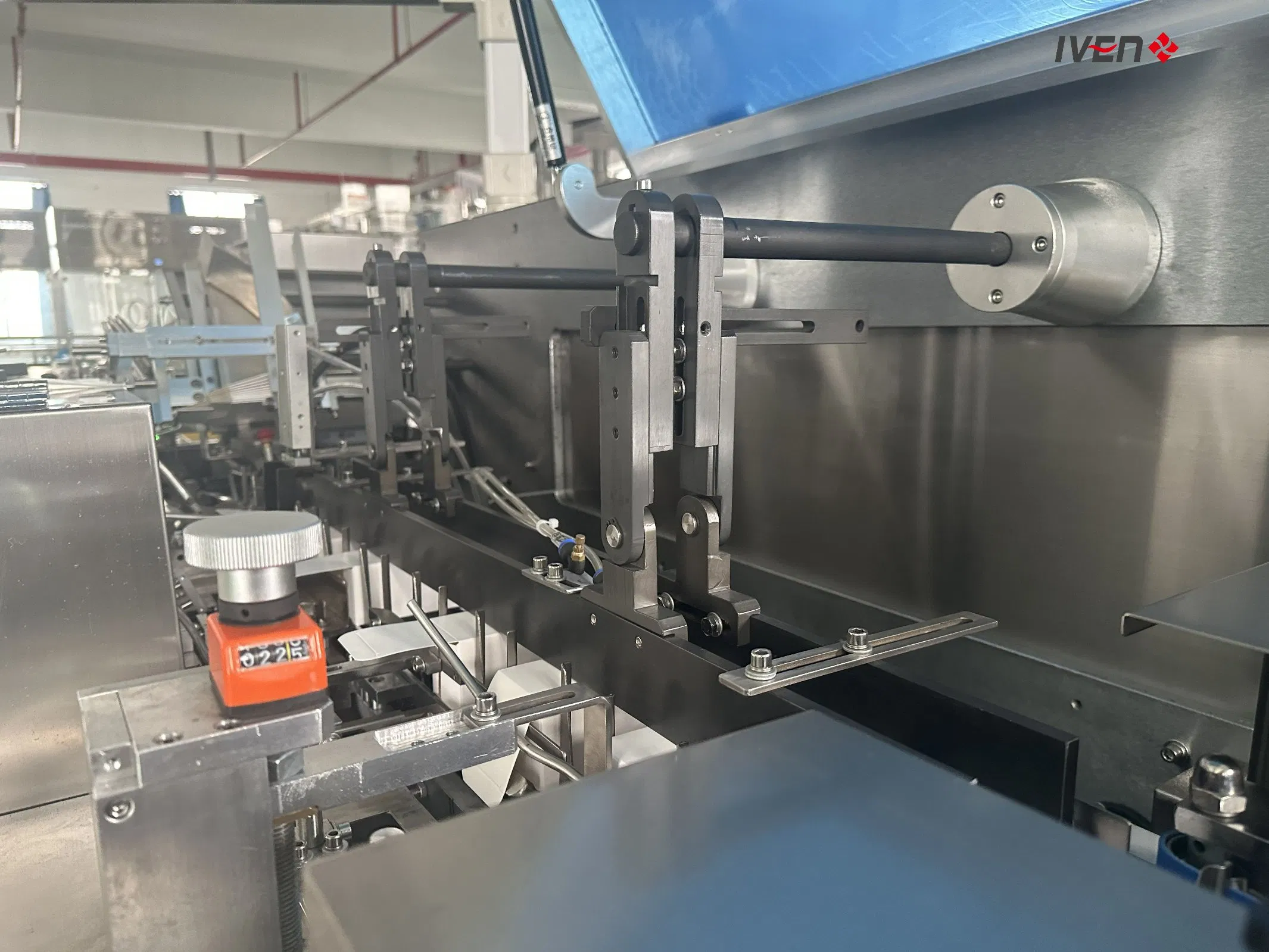

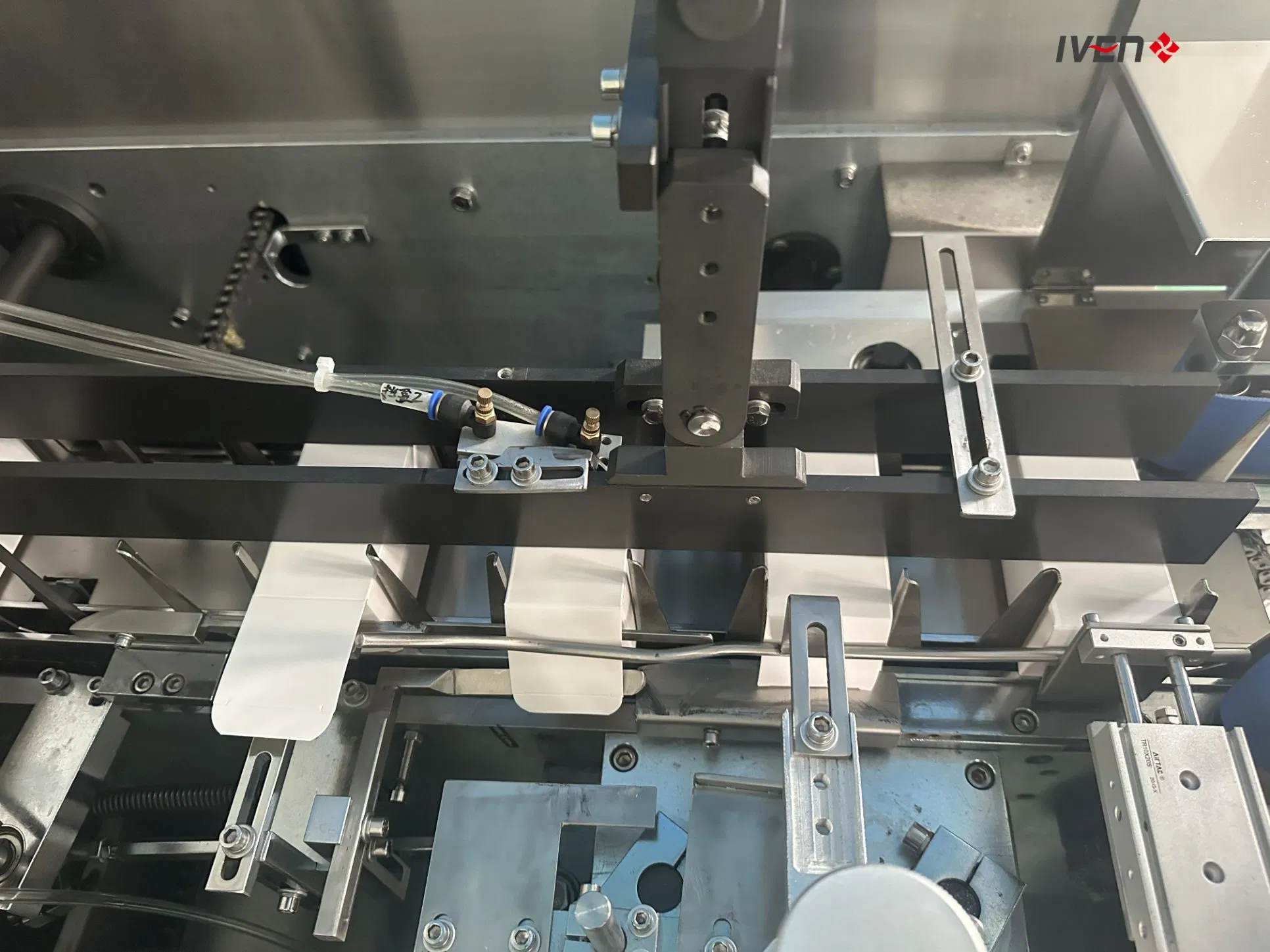

Flexible Carton Sealing and Labeling System
Heavy-duty Box Packaging Equipment with High Speed, designed for efficient forming, filling, and sealing processes across pharmaceutical and beverage industries.
Core Features & Functionalities
-
◈
Automatic Control: The formed heating plate automatically closes and opens, limiting material waste within a single version range.
-
◈

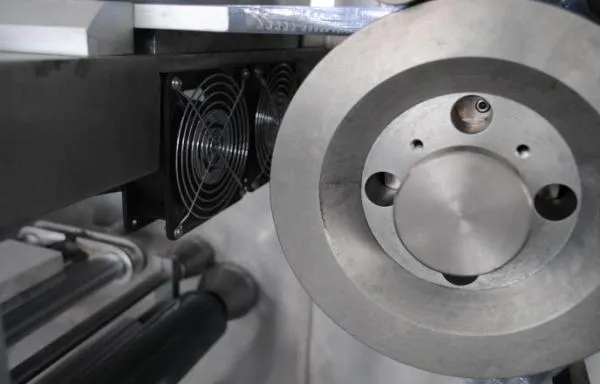

Advanced Heat Sealing: Rolling heat sealing with two rollers ensures a small contact area and large relative pressure for thorough sealing and faster speeds.
-
◈
Safety First: Equipped with automatic alarms and shutdown for PVC completion, fragment detection, and emergency stop devices.
-
◈
GMP Standard: All contact parts are made of 304 or 316 stainless steel and non-toxic materials, meeting strict GMP requirements.
-
◈

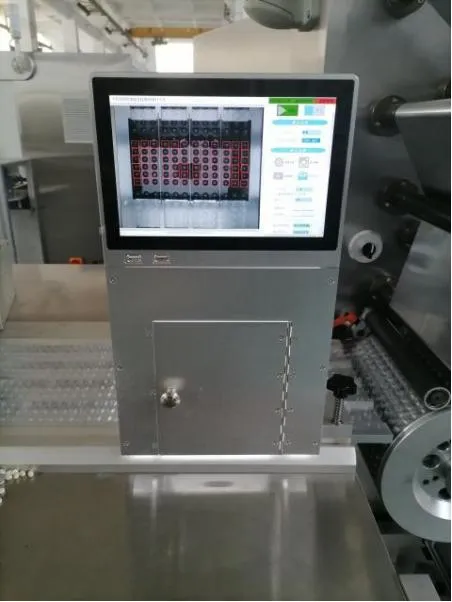

PLC Intelligence: The integrated PLC system provides helpful operational information and fault diagnostics on the touch screen.
Technology Parameters
| No. |
Description |
Specification |
| 1 | Punch frequency | 80-120 times/min |
| 2 | Capacity | 4 blisters/time |
| 3 | Max forming area | 230mm × 260 mm (L × W) |
| 4 | Max forming depth | 16 mm |
| 5 | Stroke | Stamping: 20-140 mm; Molding: 150-250mm |
| 6 | Standard blister | 80 × 57 mm (Customizable) |
| 7 | Total power supply | 20KW |
| 8 | Main motor | 3.2KW |
| 9 | Overall dimension | 4050 × 120 × 1970 mm |
| 10 | Weight | 3200Kg |
Main Advantages

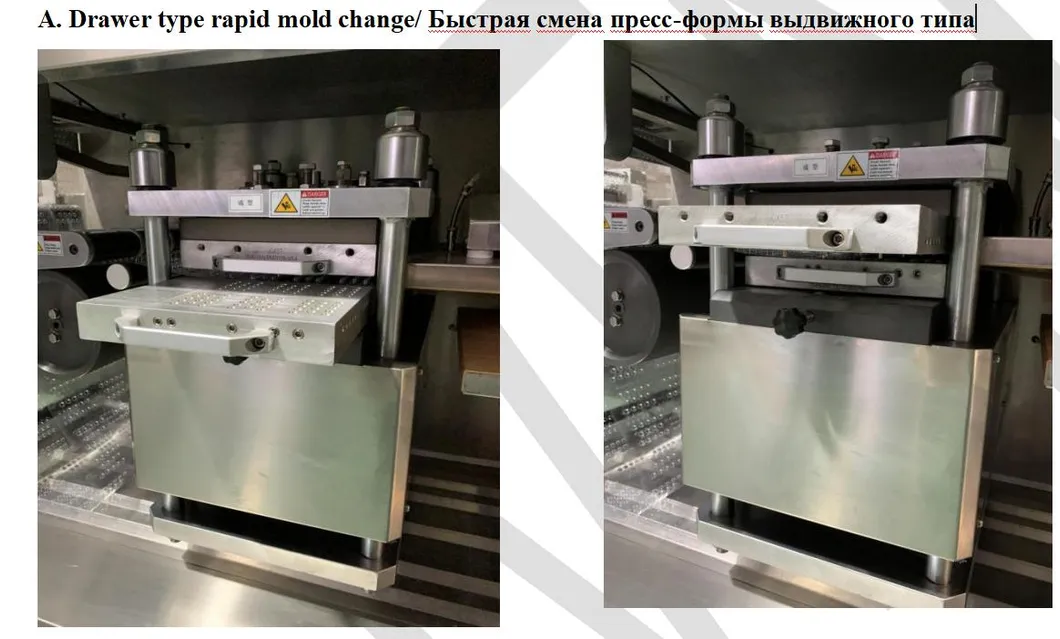

1. Quick Mold Change: Guided by a T-slot and adjustable handles, complete die sets can be changed within thirty minutes without specialized tools. Parallelism is automatically aligned.
2. Push-pull Rapid Heat Transfer: Removal and installation of the heat seal mold can be completed in just 1 minute by loosening simple hand nuts.

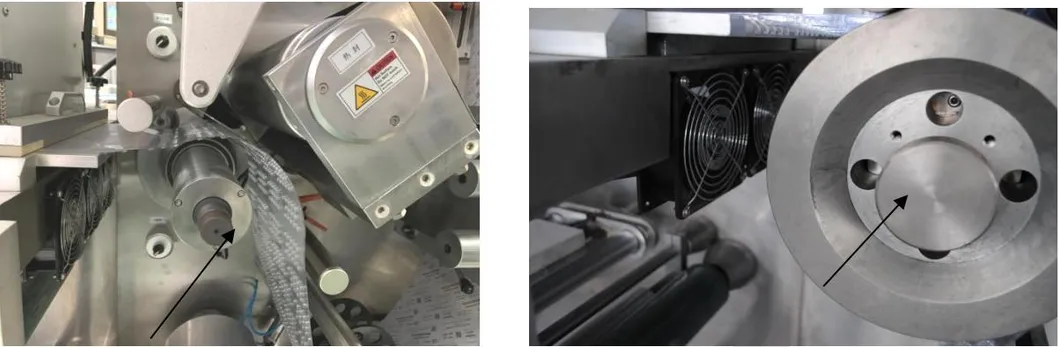

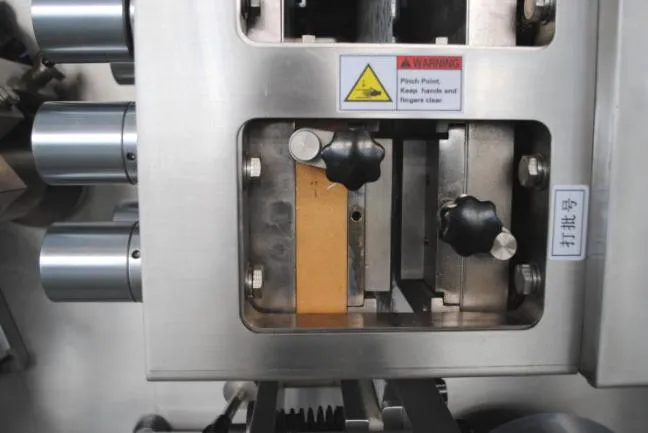

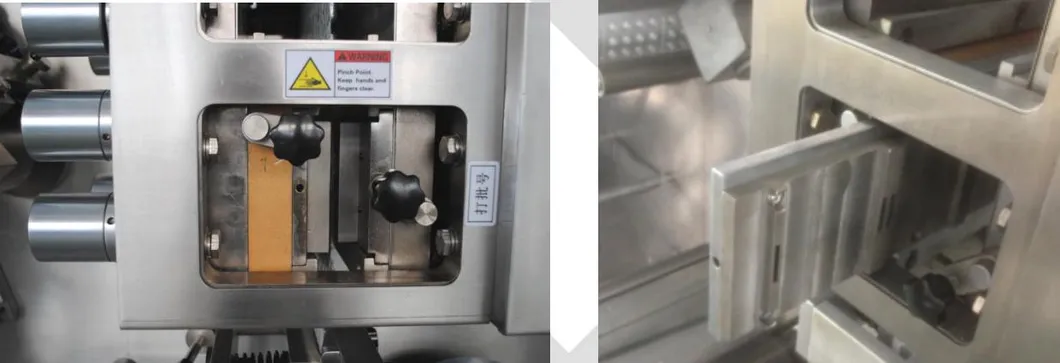

Drawer type quick batch number change system
Frequently Asked Questions
Q: What safety features are included for material handling?
A: The machine includes automatic alarms and shutdown functions for lack of PVC, aluminum foil, or drugs, as well as insufficient air pressure alerts.
Q: How does the machine prevent material deformation during stops?
A: It uses cylinder heat sealing where the anilox roller is automatically increased by the cylinder when stopped, eliminating deformation caused by thermal radiation.
Q: Are the materials used compliant with medical standards?
A: Yes, all parts in contact with drugs are made of 304 or 316 stainless steel and non-toxic materials, fully meeting GMP requirements.
Q: How long does a full mold change take?
A: Thanks to the T-slot guidance and quick-lock handles, a complete set of dies can be replaced within 30 minutes without requiring wrenches.
Q: What happens if there is a sudden power or gas failure?
A: The protection device ensures the heat sealing roller is detached from the mold and the hot plate is separated from the PVC to avoid scalding the products.
Q: How is the fault troubleshooting handled?
A: The PLC touch screen displays the specific fault situation and point of occurrence, allowing operators to easily troubleshoot issues.
