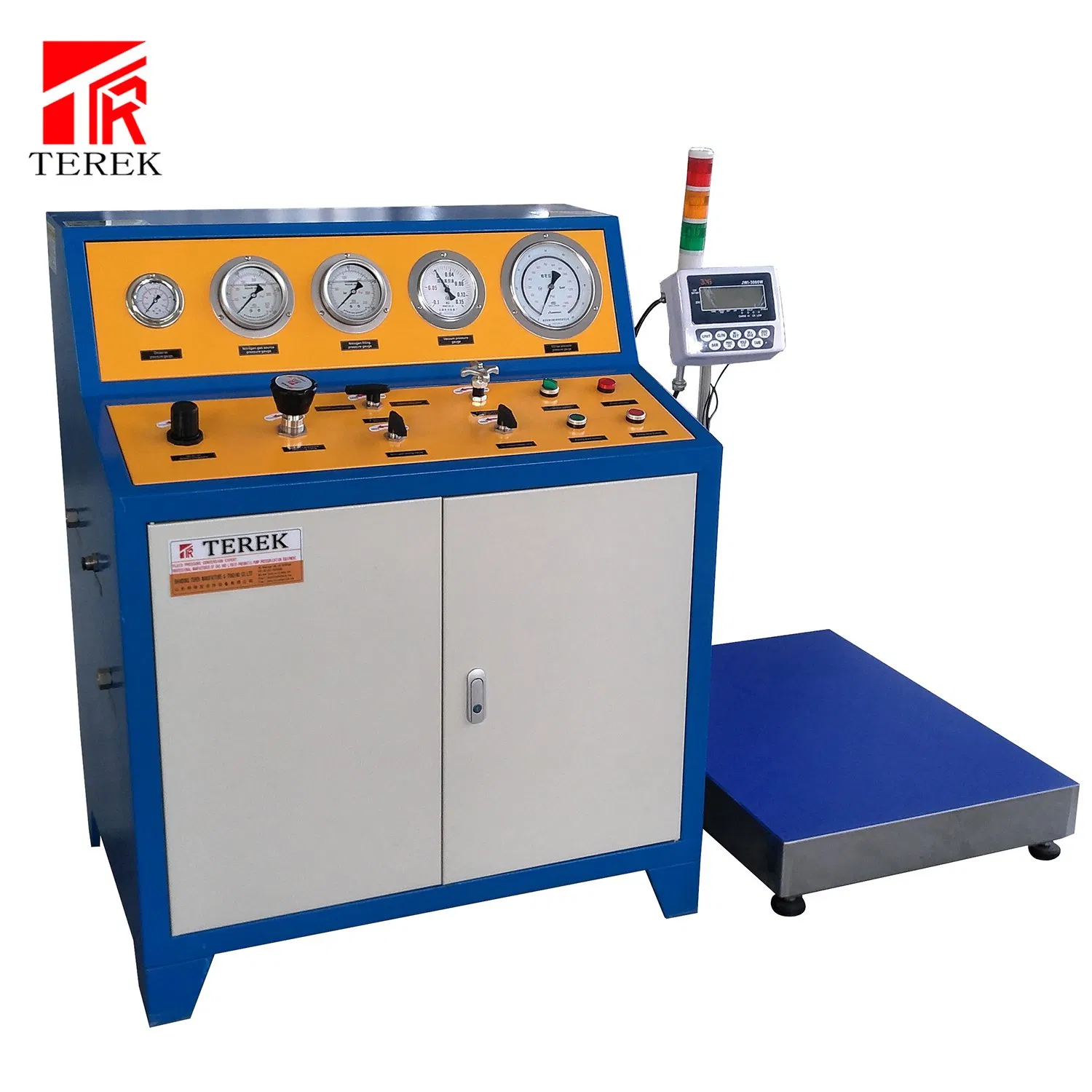

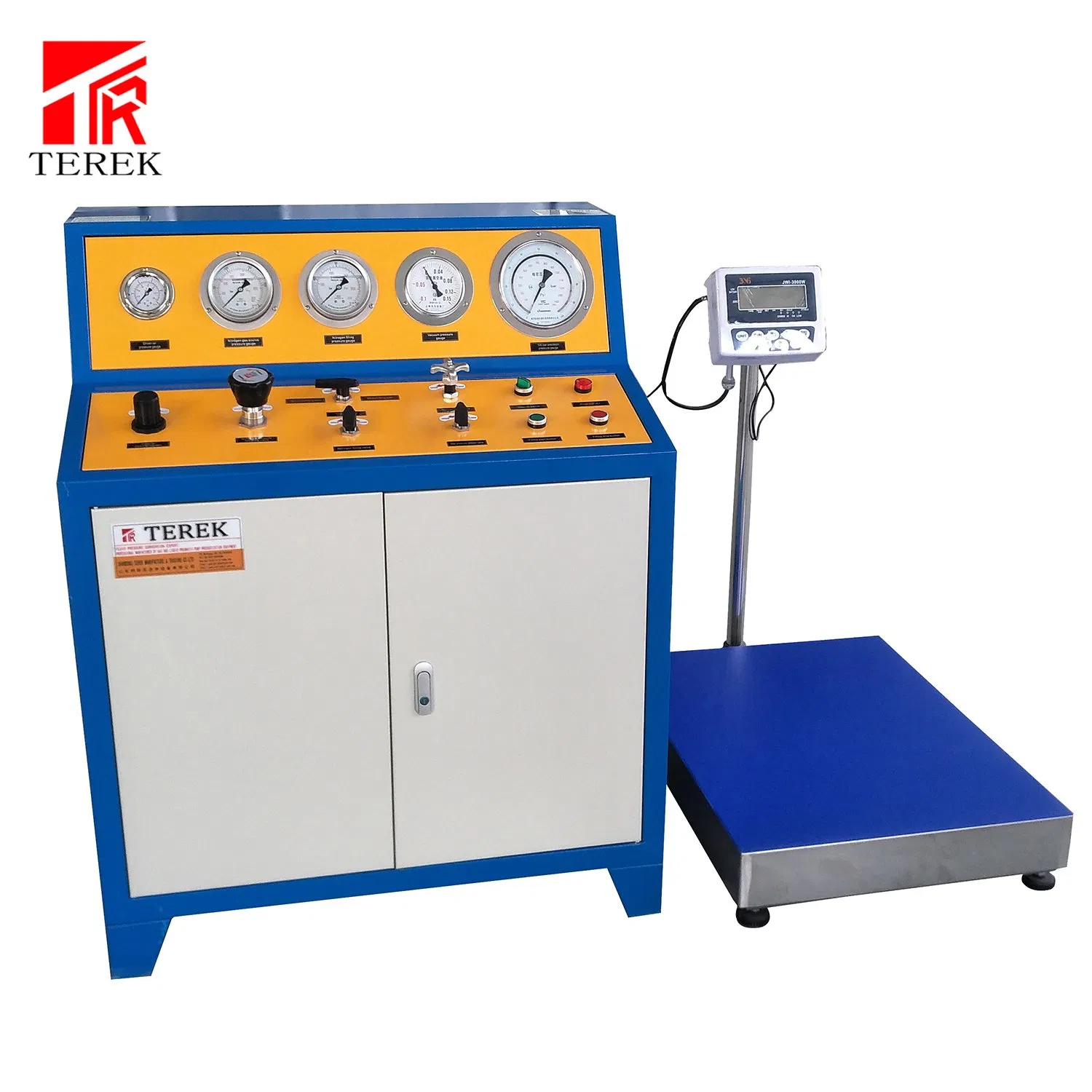

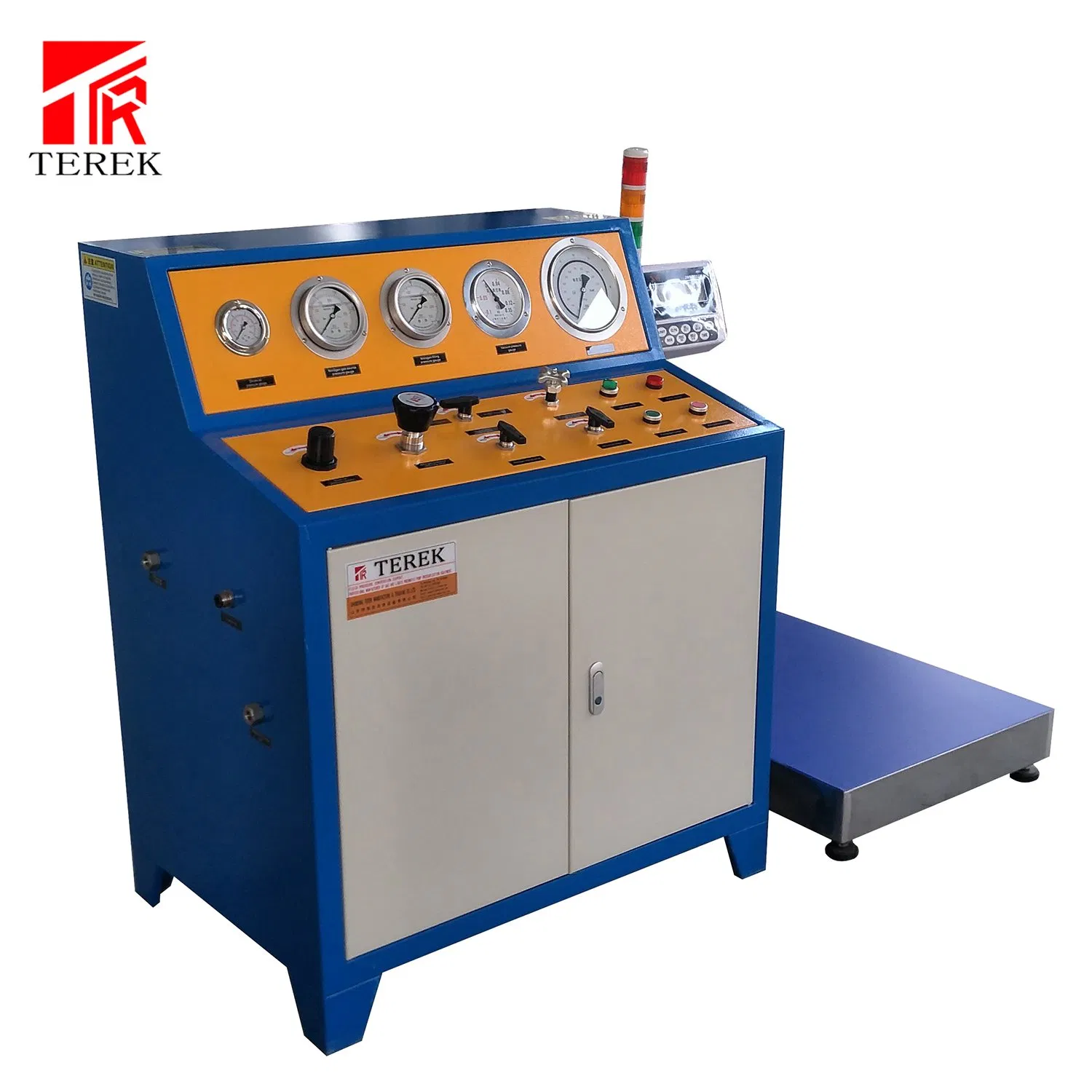

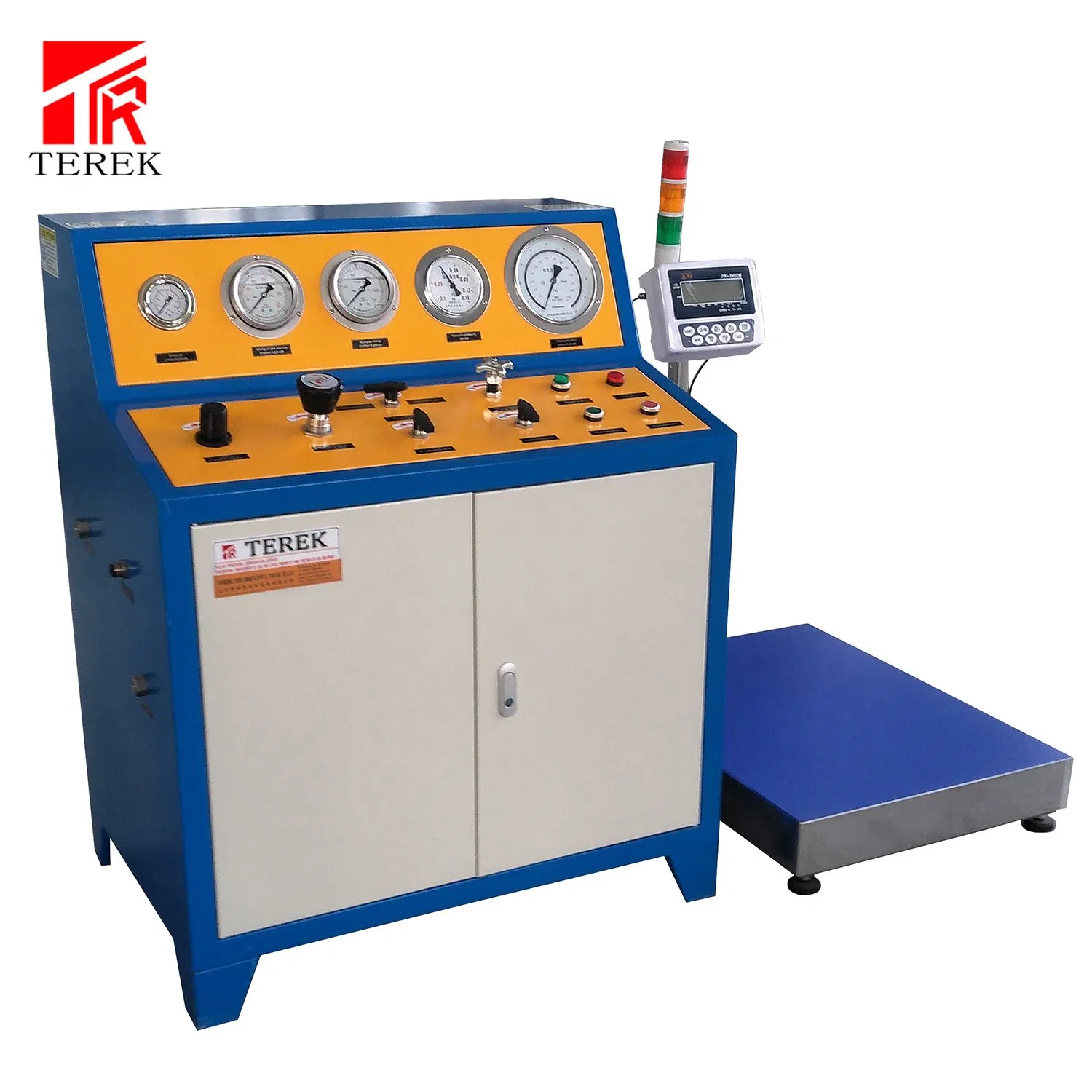

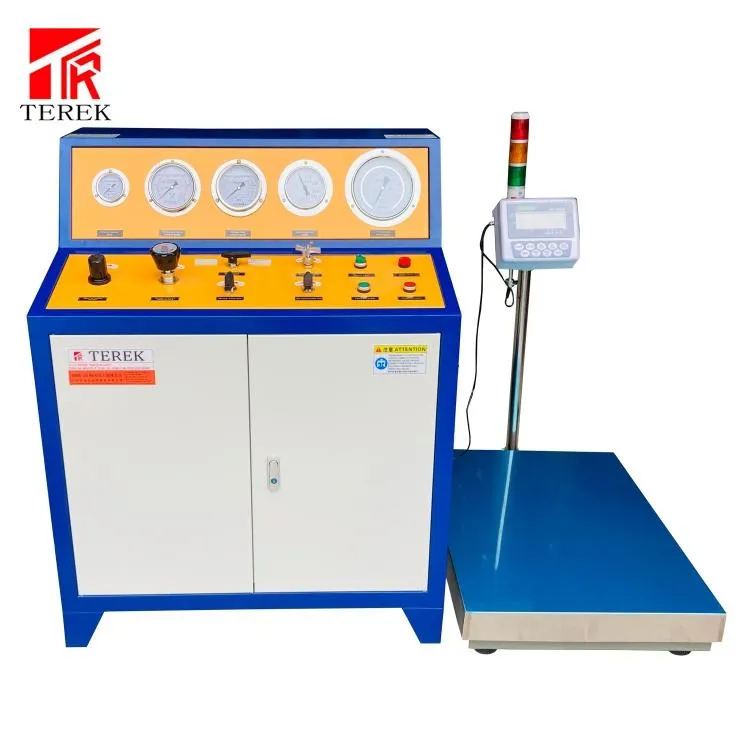

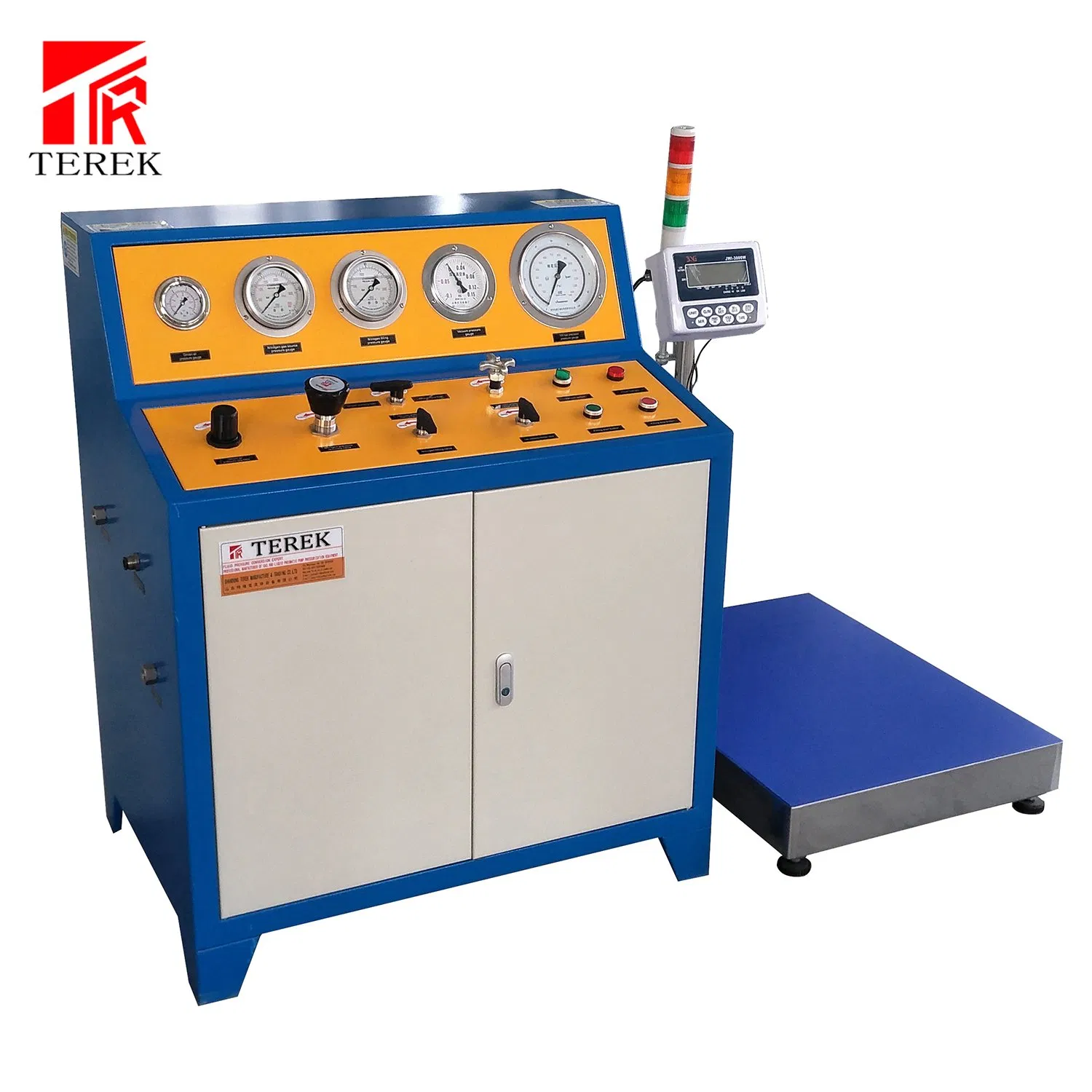

This pressurization and filling equipment features an automatic weight control function, utilizing pure compressed air as the driving power source. It employs a gas booster pump as the pressure source for media such as FM200, HFC-227ea, oxygen, nitrogen, N2O, CO2, and other gases.
The output pressure is proportional to the driving gas pressure. By adjusting the driving gas source, precise pressurized gas levels can be obtained. The system automatically stops when the preset pressure is reached, ensuring energy efficiency, explosion-proof safety, and reliable performance.
| Parameter | Details |
|---|---|
| Product Name | FM200 NOVEC Automatic Weight Control Filling Equipment |
| Pressure Ratio | 6:1 |
| Drive Air Pressure | 3-8 bar |
| Max. FM200 Outlet Pressure | 48 bar (4.8 MPA / 696 PSI) |
| Max. Nitrogen Filling Pressure | 100 bar (10 MPA / 1450 PSI) |
| Vacuum Coefficient | -0.086 MPA |
| Filling Weight Range | 0-500 Kgs |
| Weight Accuracy | ±1 Kg |
| Supply Voltage | 220V/ 50HZ (for control system) |
| Air Consumption | 0.8-1.2 M³/min |

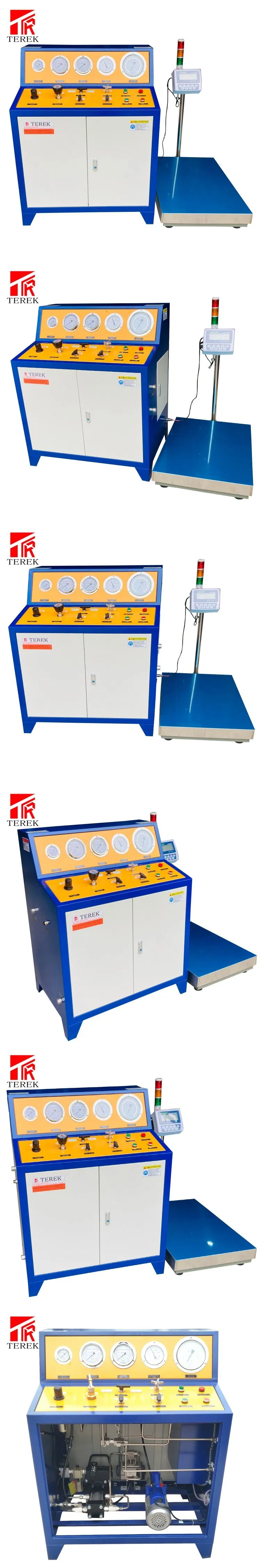

The system includes a pneumatic booster pump, vacuum pump, pressure gauges, air control valves, nitrogen regulating valves, high-pressure stainless steel pipelines, and an electronic weighing system with solenoid valve control.
Widely used for filling FM200 fire extinguisher cylinders and similar media. It significantly improves filling efficiency and weight accuracy for fire fighting equipment maintenance and production.
