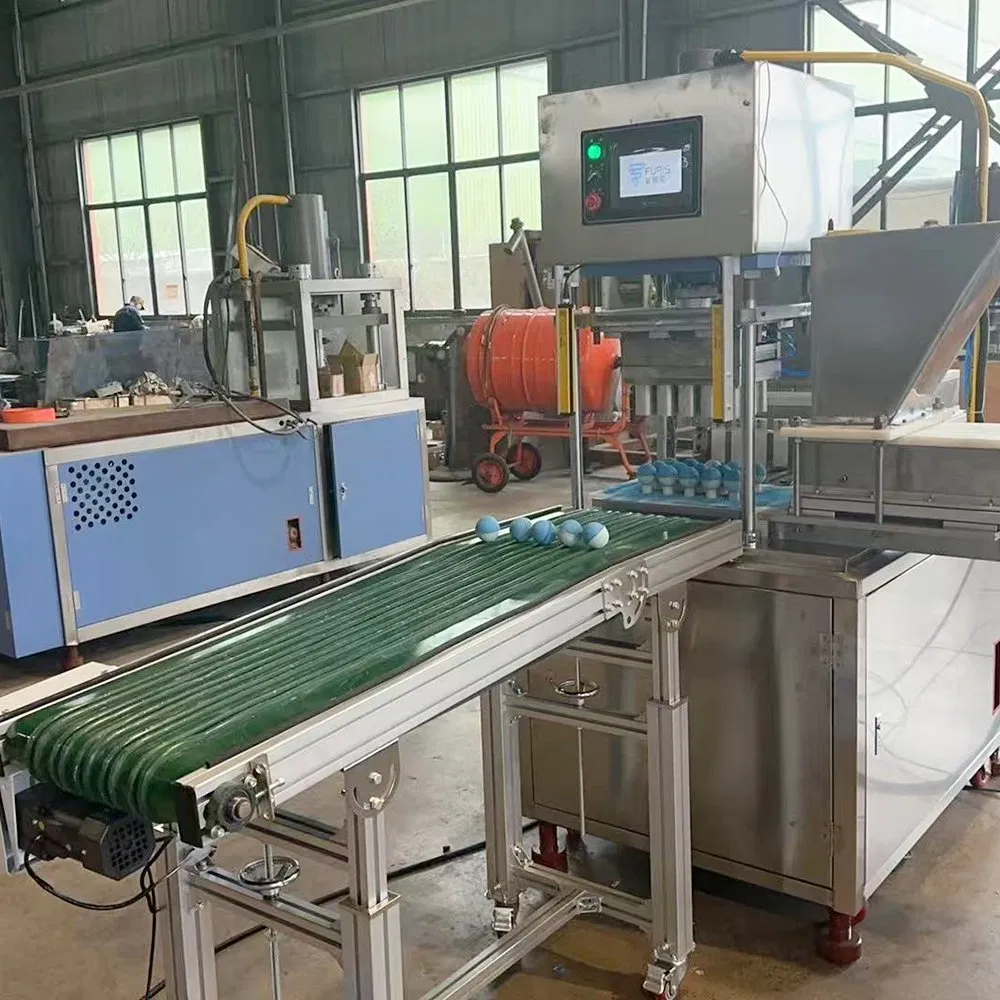

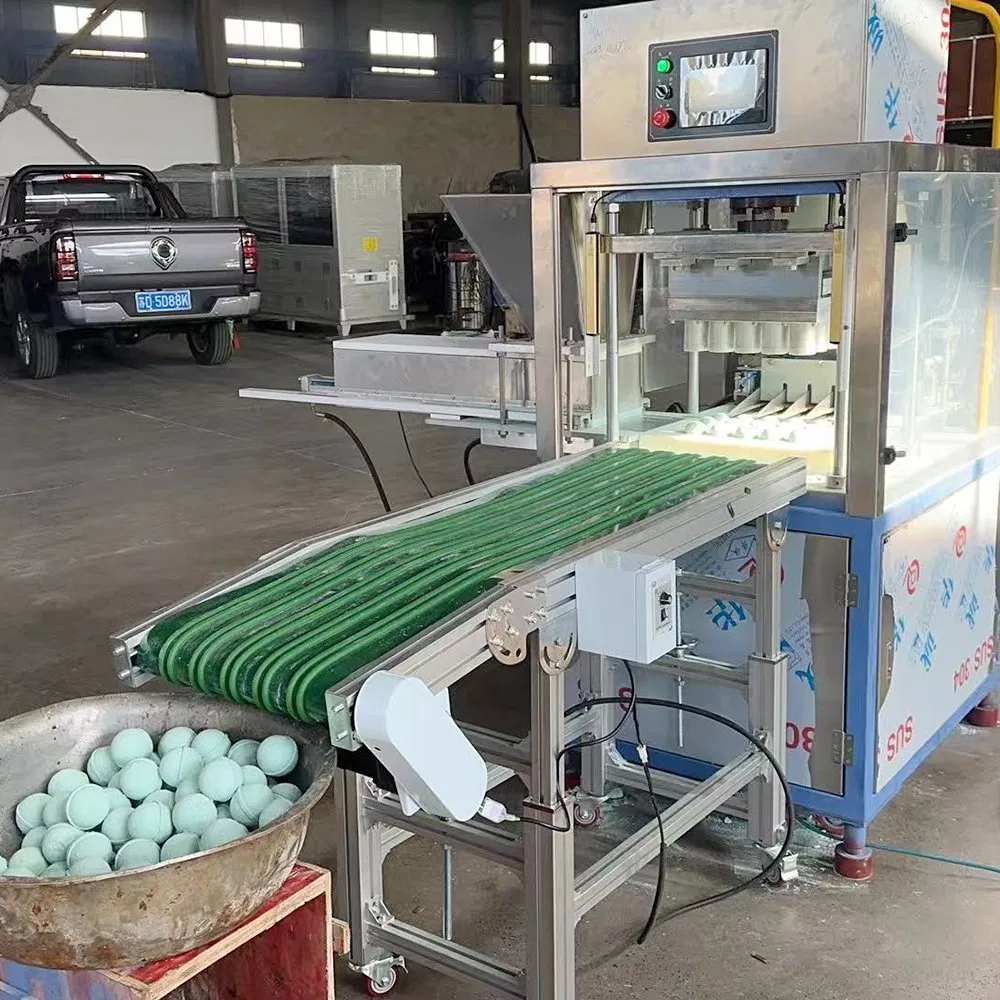

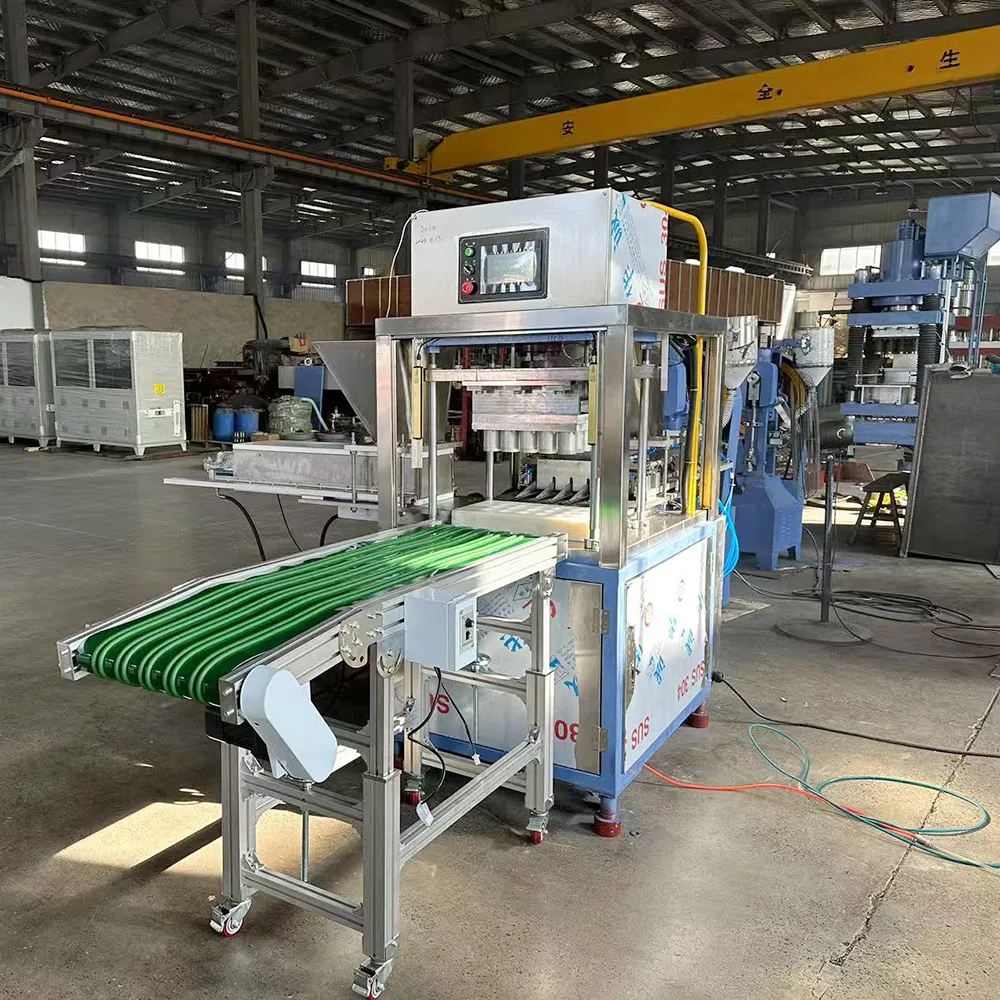

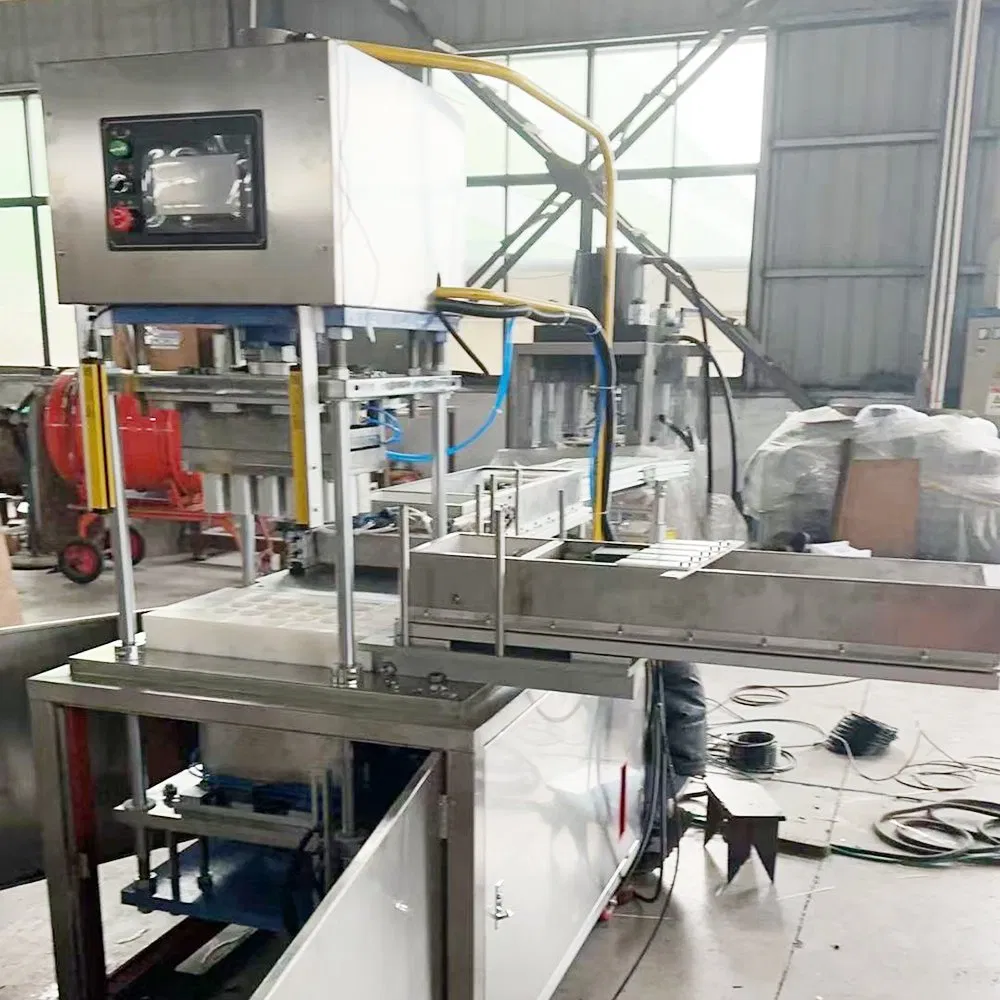

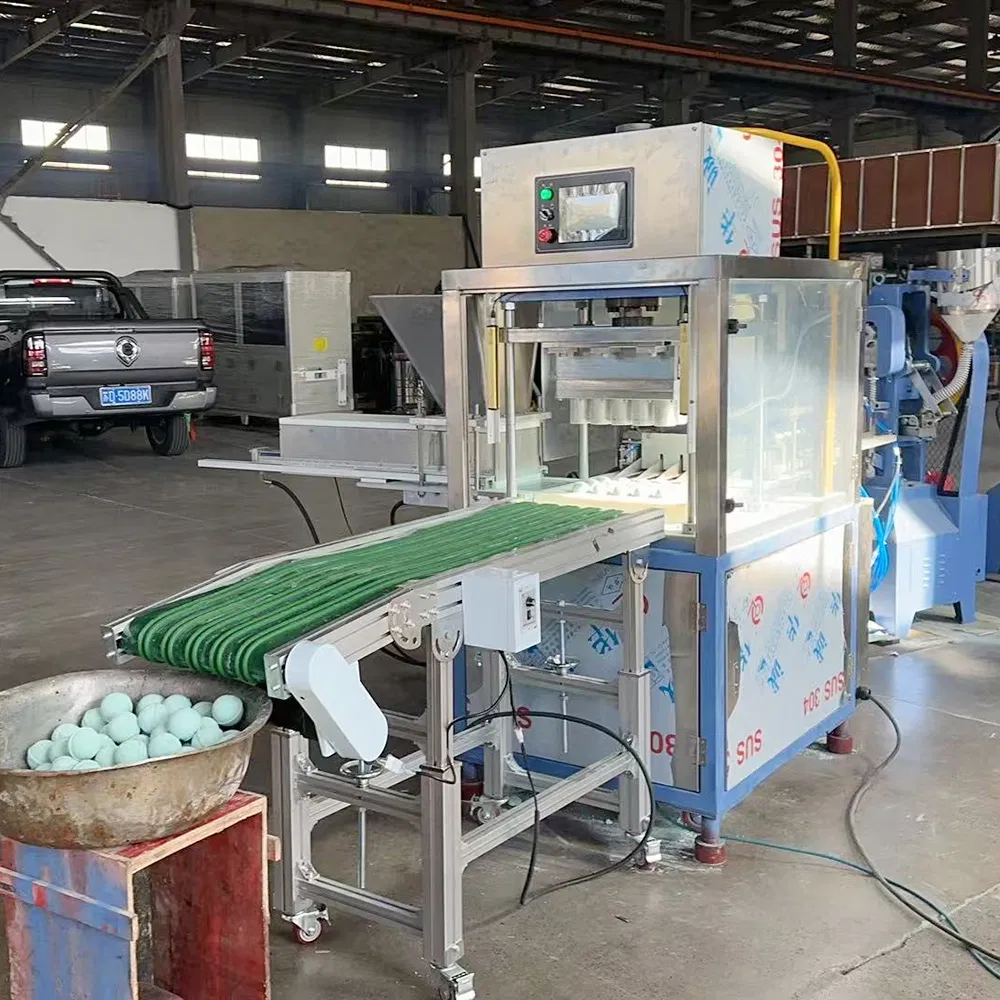

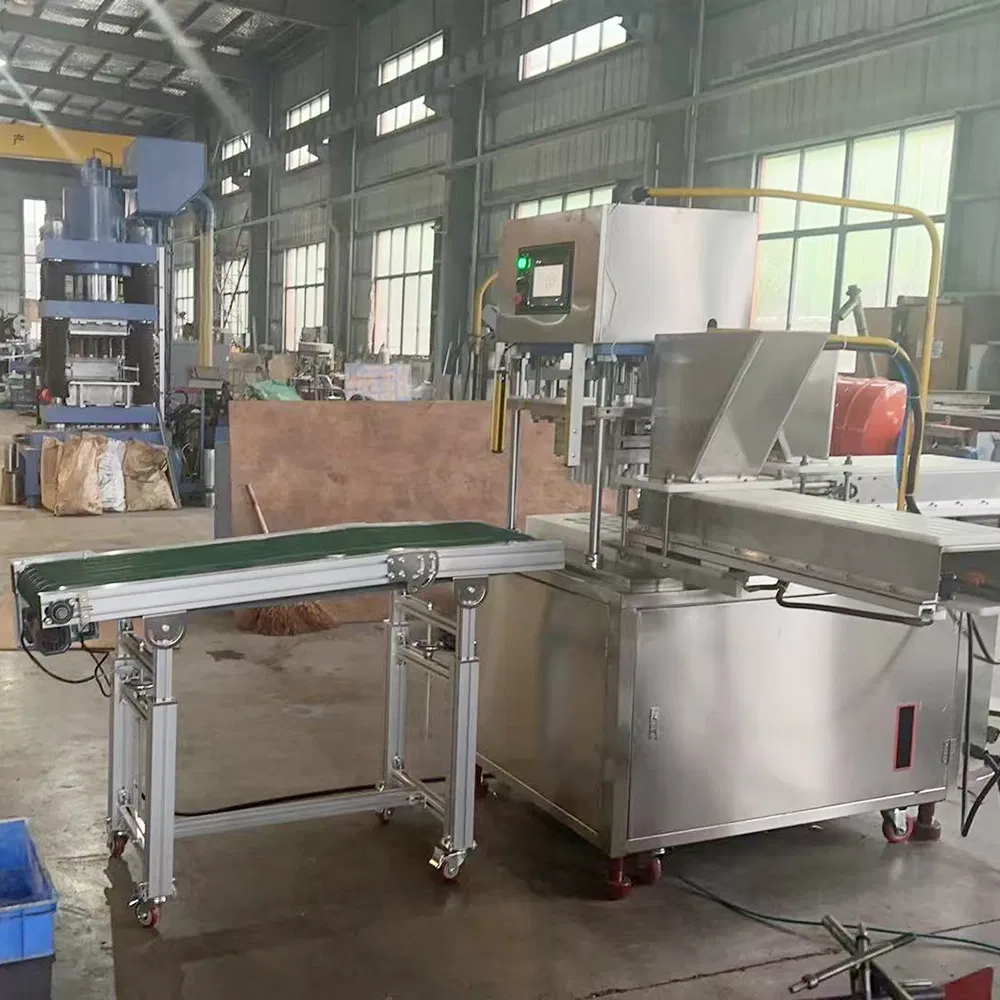

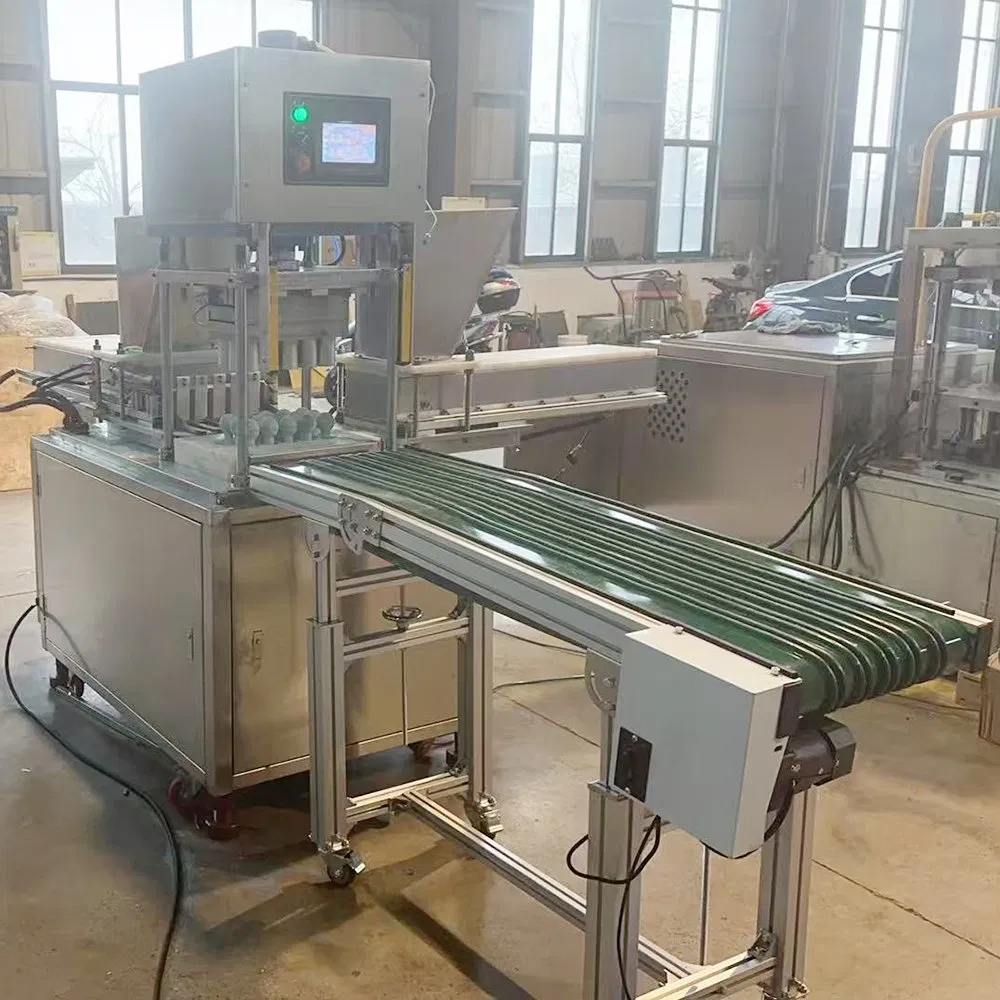

Bath salt ball briquetting machine
1. Application:

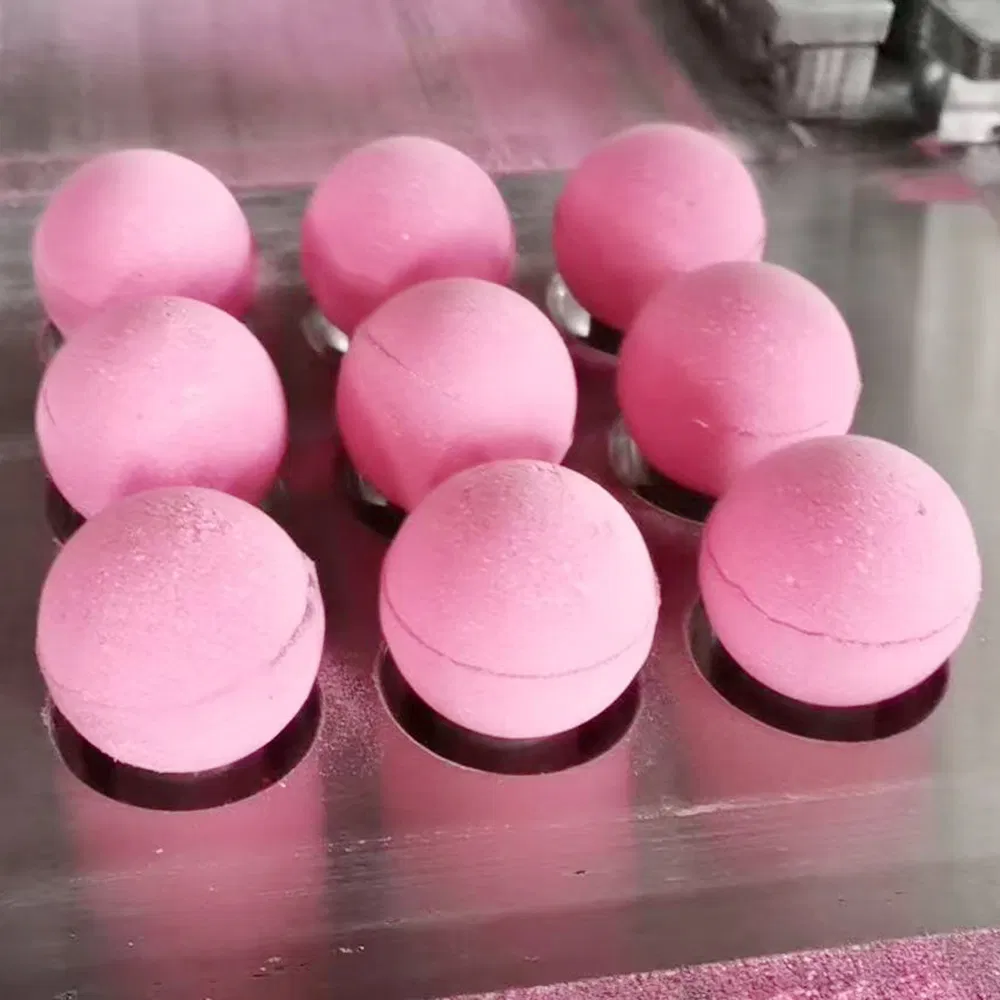

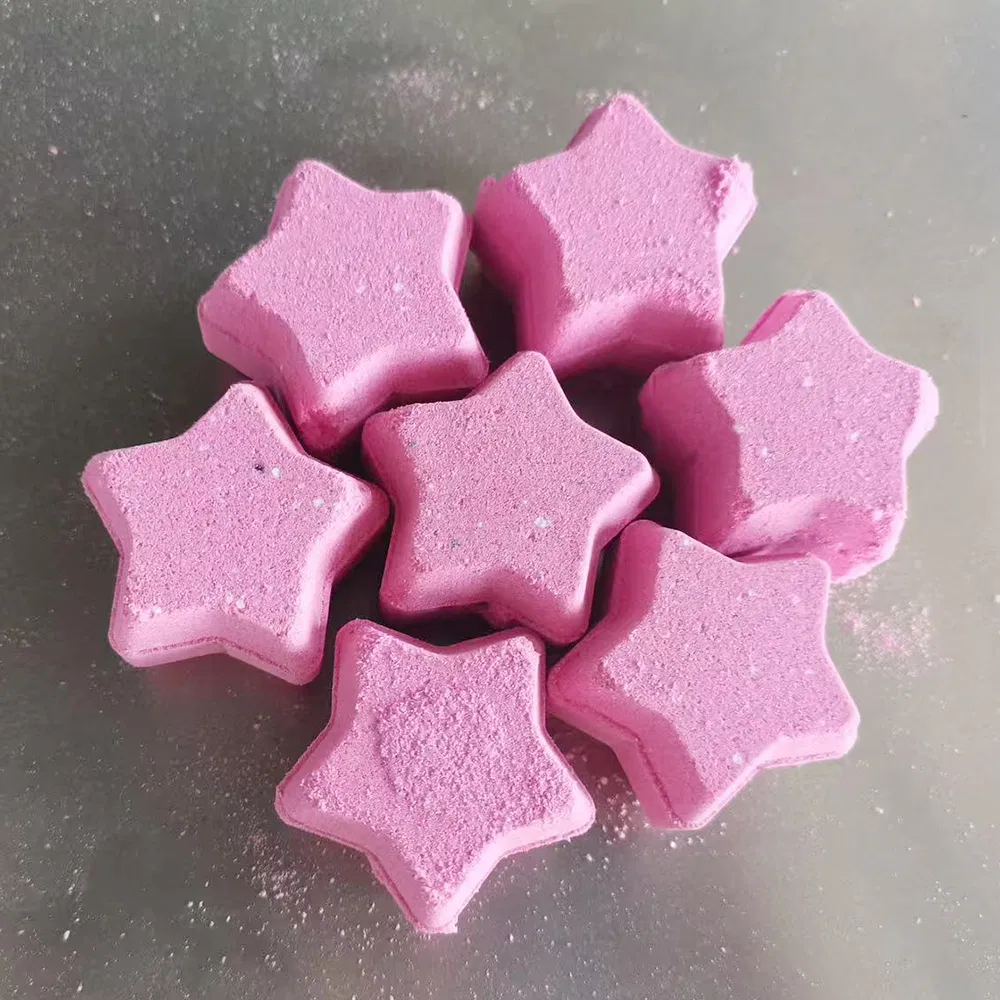

The automatic hydraulic press is mainly used for bath salt balls, bath salt blocks, multi-layer and multi-color bath salt blocks, and powder molding.
2. Working principle:

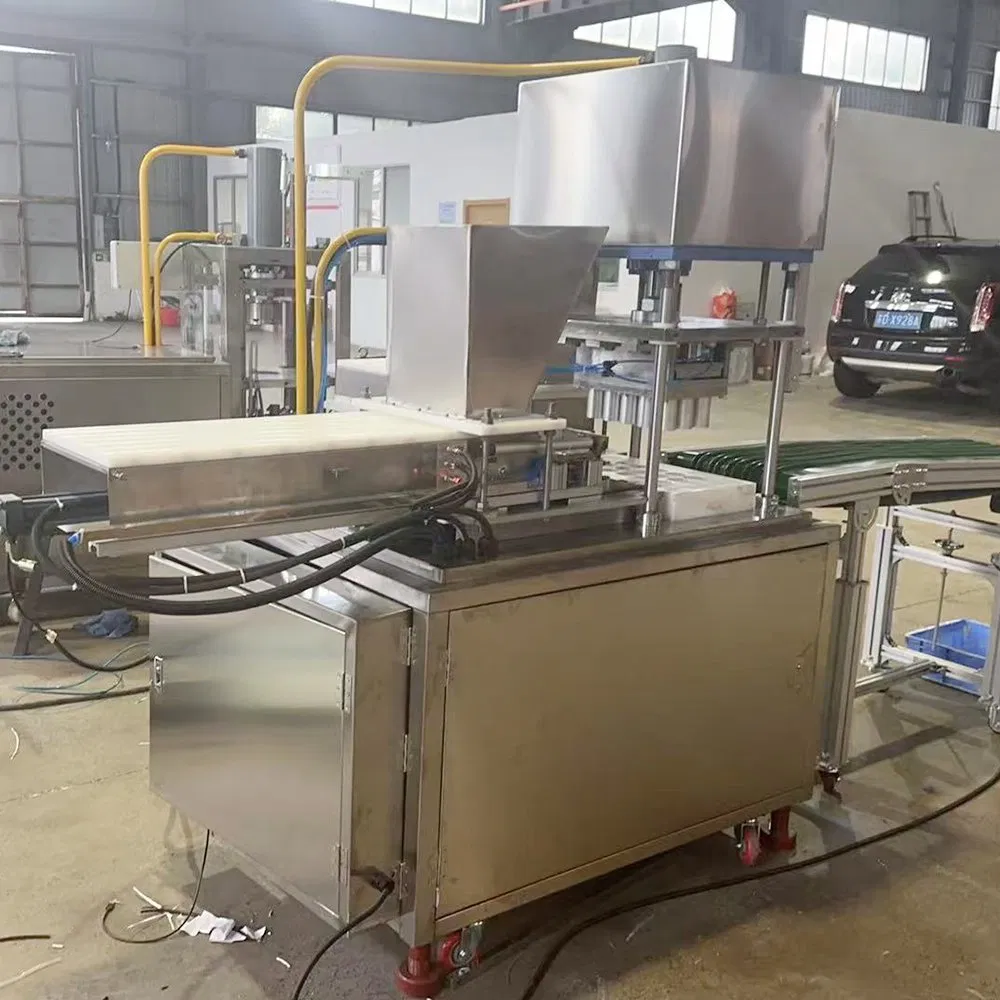

This type of machine features a four-column structure. The upper oil cylinder is a plunger cylinder placed on the top for pressing. The lower oil cylinder feeds the plunger and is placed at the bottom to complete the pressing action and eject the product. The machine offers adjustment, semi-automatic, and fully automatic working modes. All equipment is equipped with acrylic security devices to effectively protect operator safety.
| Parameter Item | Specification Details |
|---|---|
| Working pressure | 10T |
| Maximum stroke of upper punch | 100mm |
| Loading height | 100mm (customizable) |
| Working table | 600*600mm (customizable) |
| Maximum tablet diameter | 100mm (customizable) |
| Output | 3-5 times/min |
| Product error | ±0.2 |
| Motor power | 5.5Kw |
| Weight | 1.2 tons |
Electrical Components (Delixi Series)
| Control transformer | BK380V/220/24V/16V |
| Intermediate relay | POTTOM |
| Circuit breaker | DZ47 |
| Motor | Joint venture |
| Touch screen | Xinjie |
| PLC | Xinjie |
We are a professional machine manufacturer with more than 20 years of experience in China. Our main products include tablet press machines and filling machines, all of which are R&D and manufactured in-house. All machines are CE marked.
We supply various kinds of tablet press machines, such as animal licking salt block presses (1kg to 25kg), chlorine tablet presses, and large 500T~1200T hydraulic tablet presses. Our equipment is known for high stability, efficiency, and low operating costs.
Our filling machines are widely used for automated filling of thin liquids, semi-liquids, and viscous substances in the chemical, pharmaceutical, food, and cosmetic industries. We focus on core technology and innovation to break through technical bottlenecks, providing customized solutions for our global clients.
Standard exporting packing is used to ensure the safety of the equipment during international transit.
