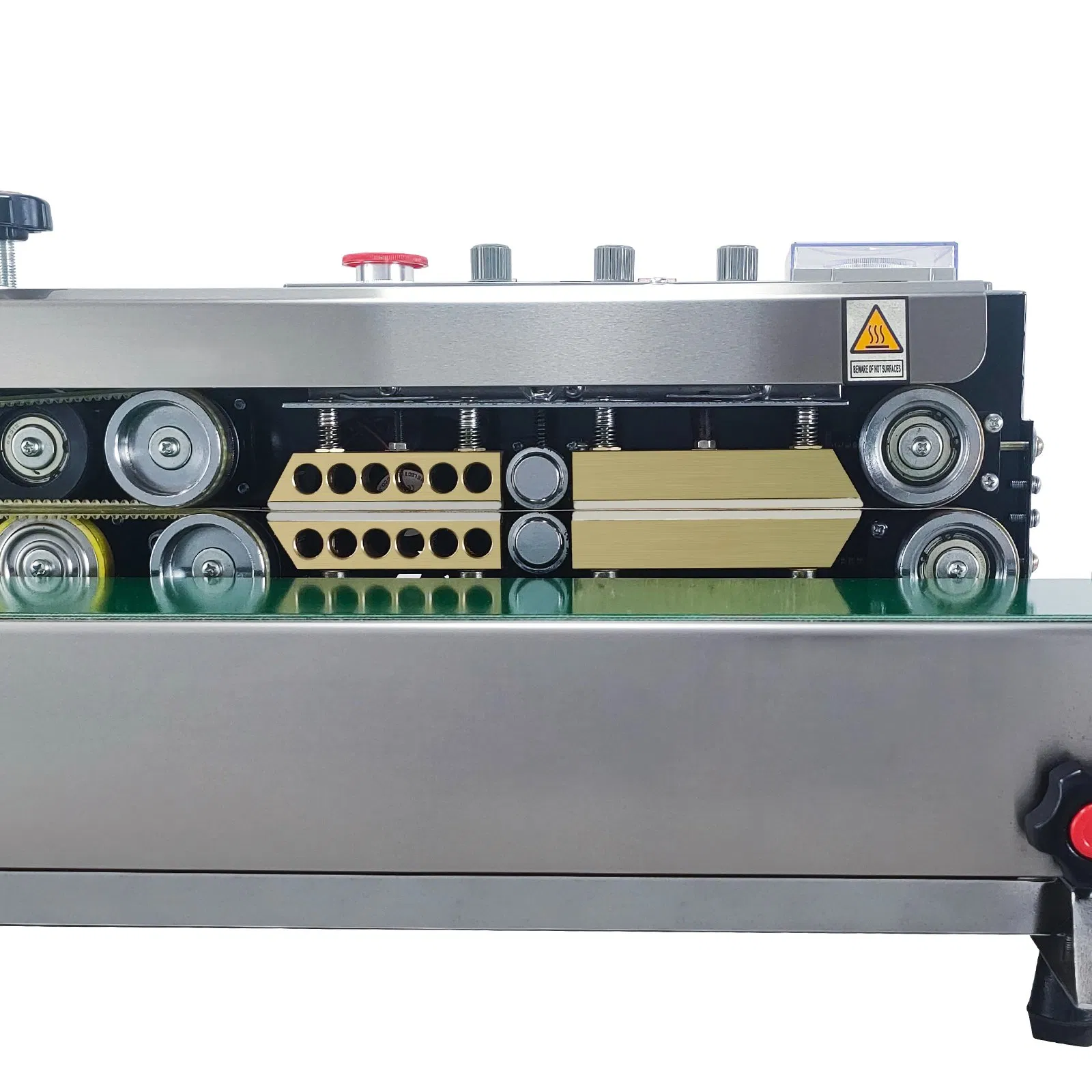

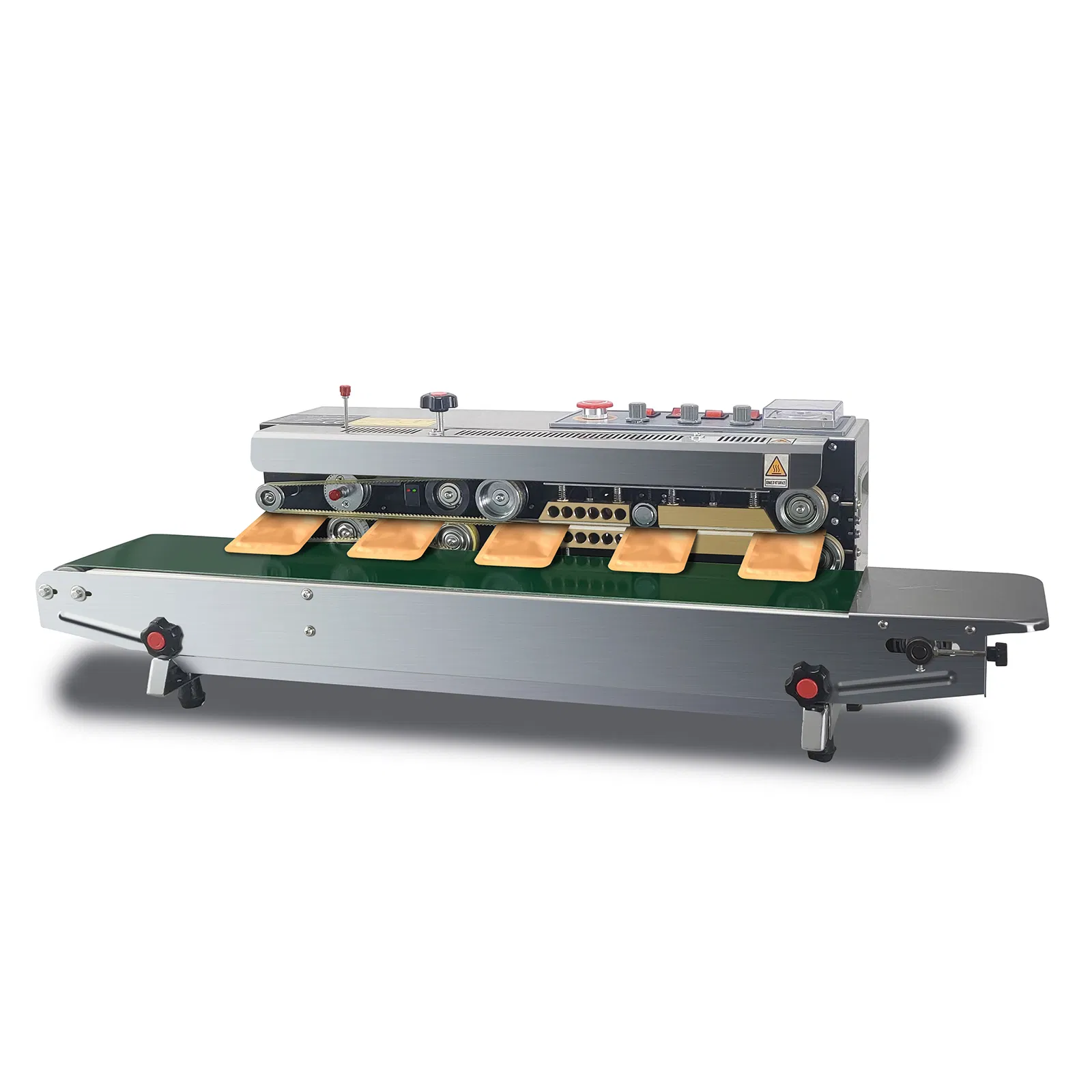

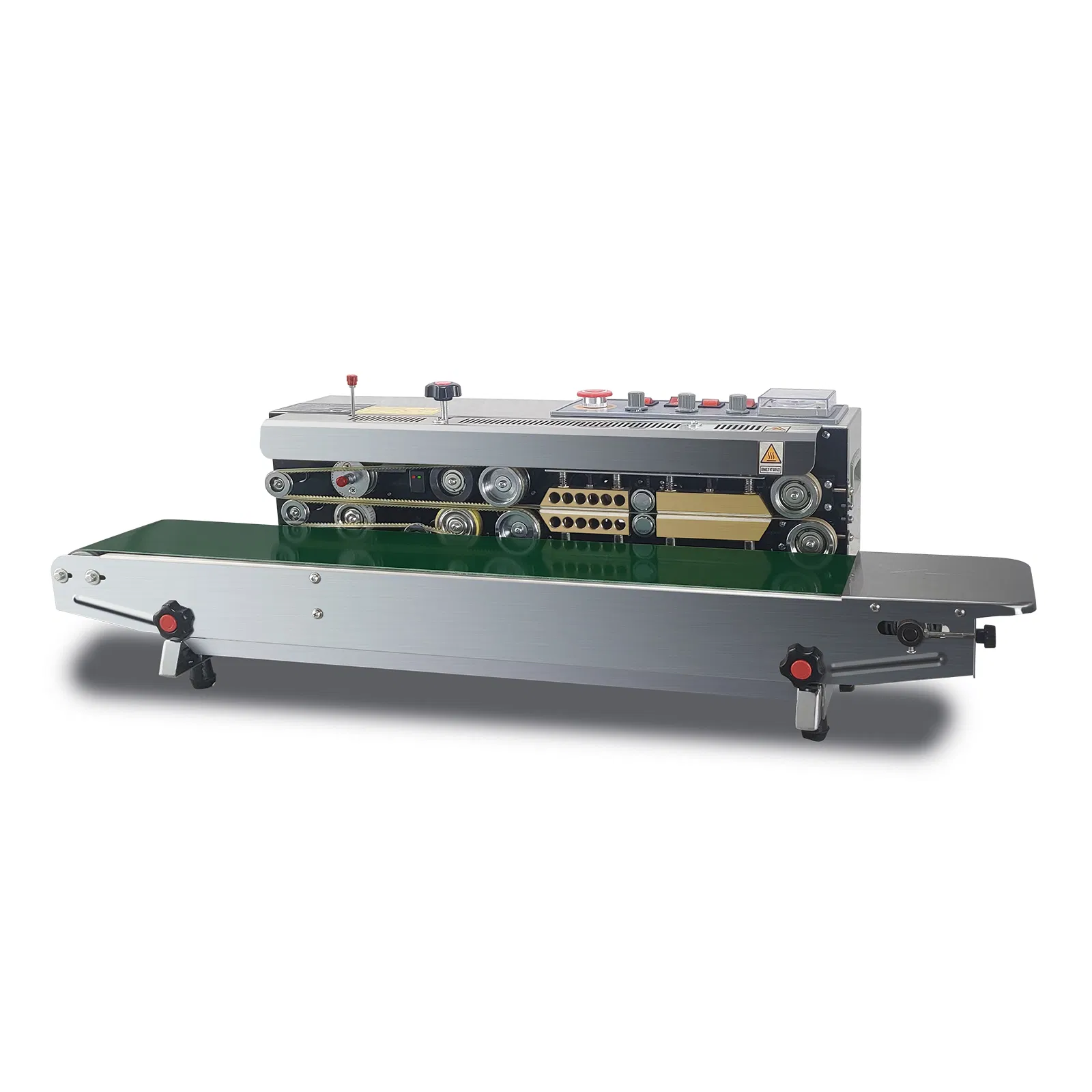

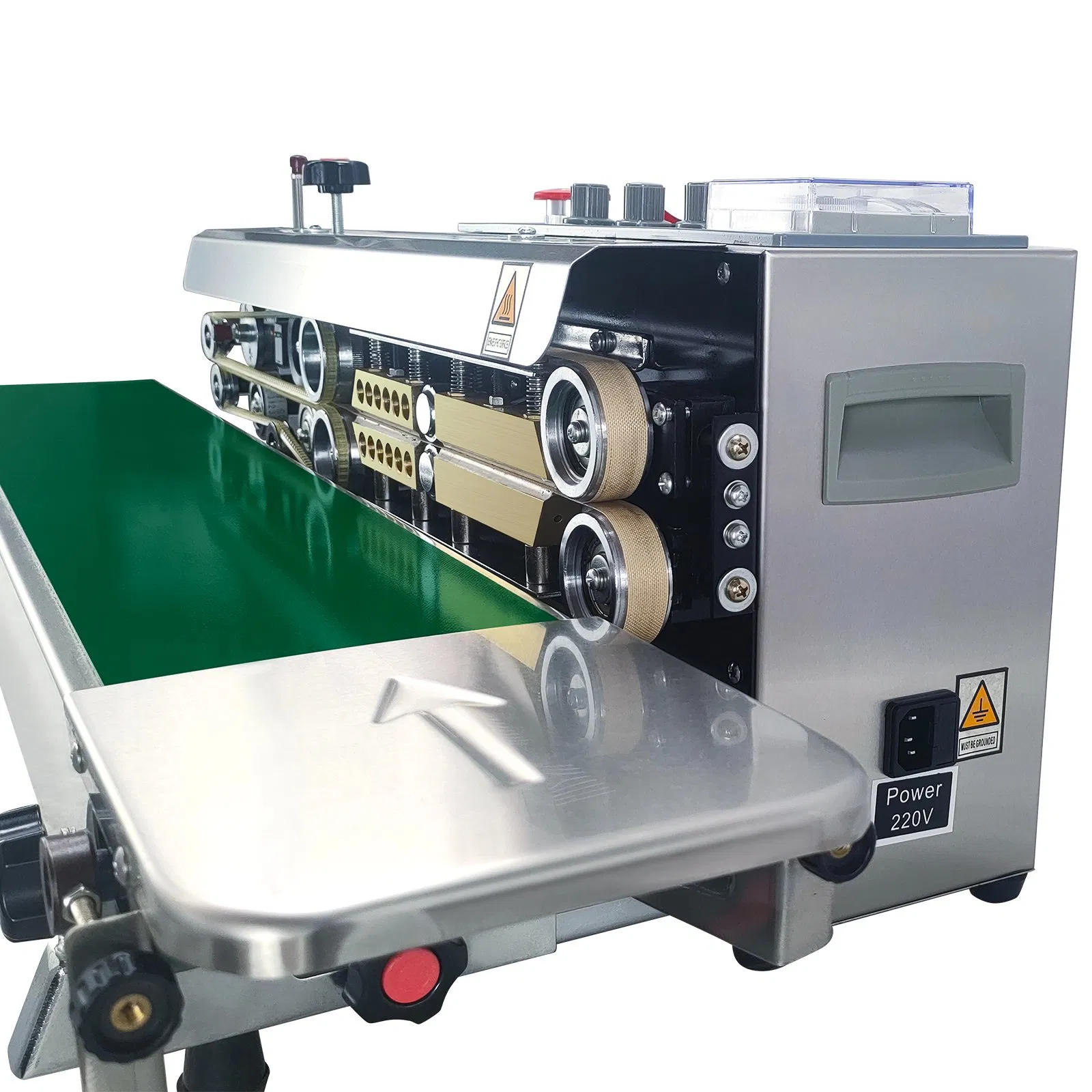

DBF-770 series continuous band sealer is designed to seal plastic films made from various materials continuously. It provides a reliable and efficient sealing solution for industrial packaging needs. This series can be equipped with an embossing printing device and a counting device for advanced production tracking.
| Parameter | DBF-770W | DBF-770WL | DBF-770LD |
|---|---|---|---|
| Voltage (V/Hz) | AC 220/50 110/60 | ||
| Motor Power (W) | 50 | ||
| Sealing Power (W) | 300 × 2 | ||
| Sealing Speed (m/min) | 0-12 (0-16) | ||
| Sealing Width (mm) | 8, 10 | ||
| Temperature Range (℃) | 0-300 | ||

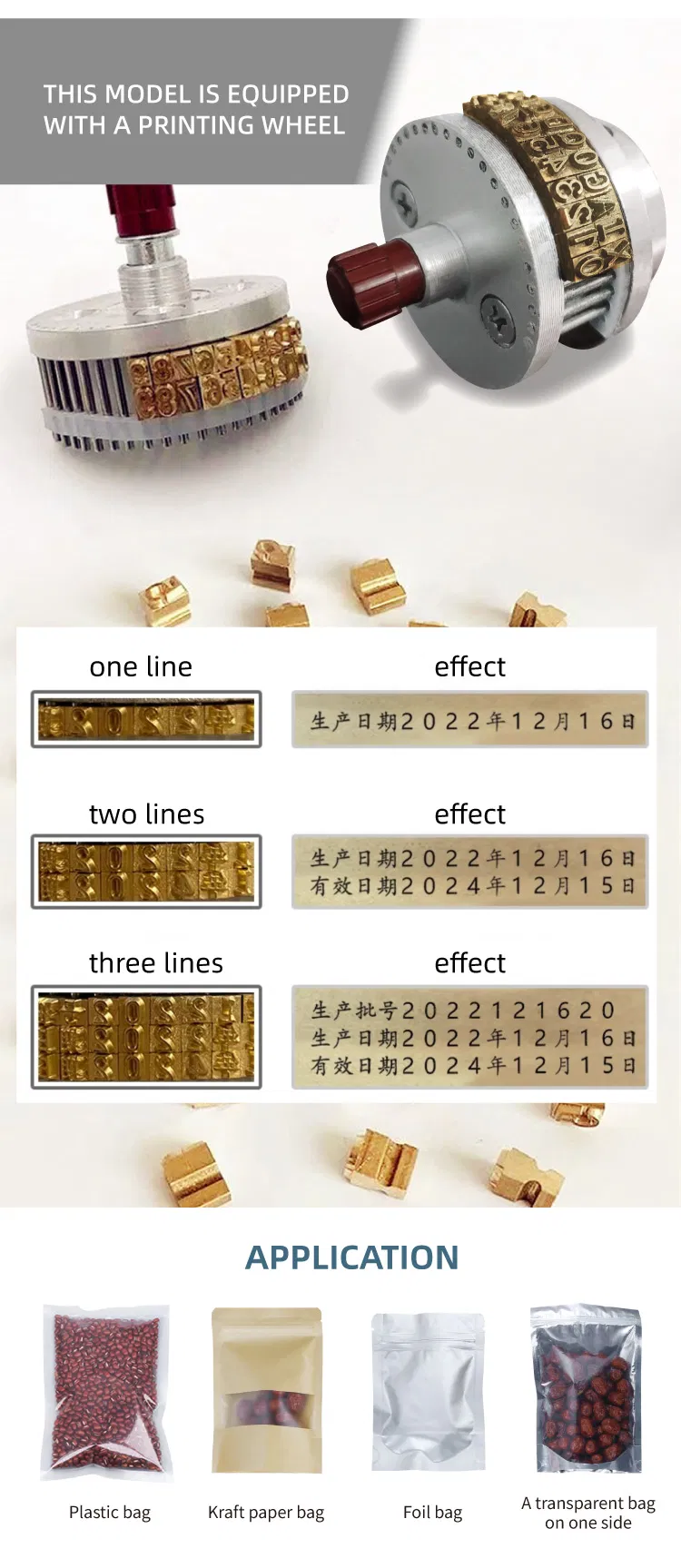

| Printing Type | Steel wheel for embossing printing (optional) | ||
| Conveyor Table Size (L×W) | 844 × 153 mm | ||
| Max. Single Package Load | ≤ 1 kg | ||
| Overall Conveyor Load | ≤ 3 kg | ||
| Dimensions (L×W×H) | 844×385×290 mm | 844×360×575 mm | 844×550×950 mm |
| Net Weight (kg) | 32 | 37 | 40 |
