Basic Specifications
Type
Volumetric Filling Machine
Filling Principle
Atmospheric Pressure
Packaging Material
PE, Metal, Plastic, Glass, Etc.
Product Description

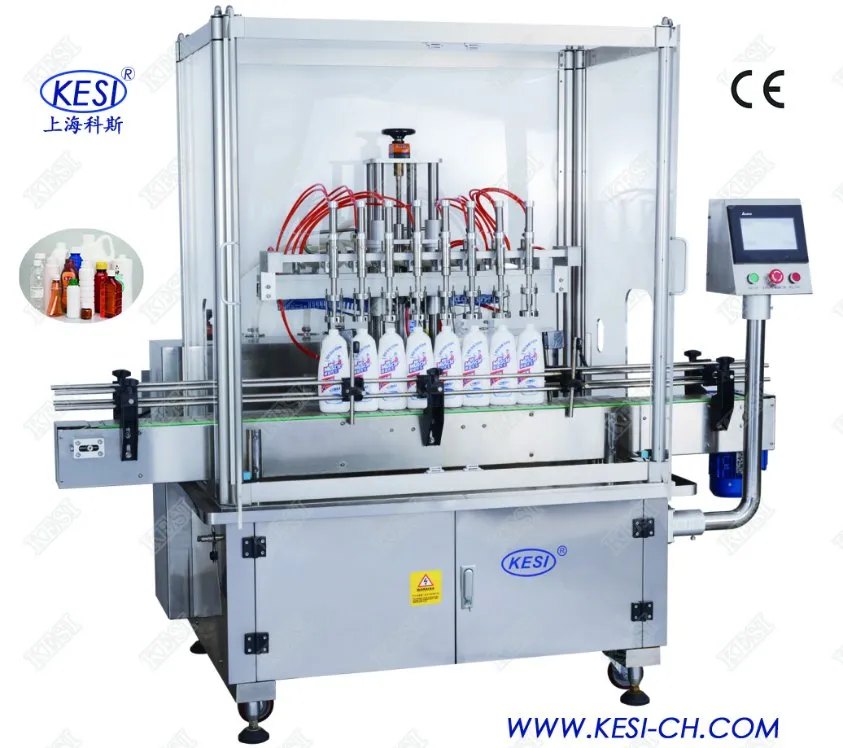

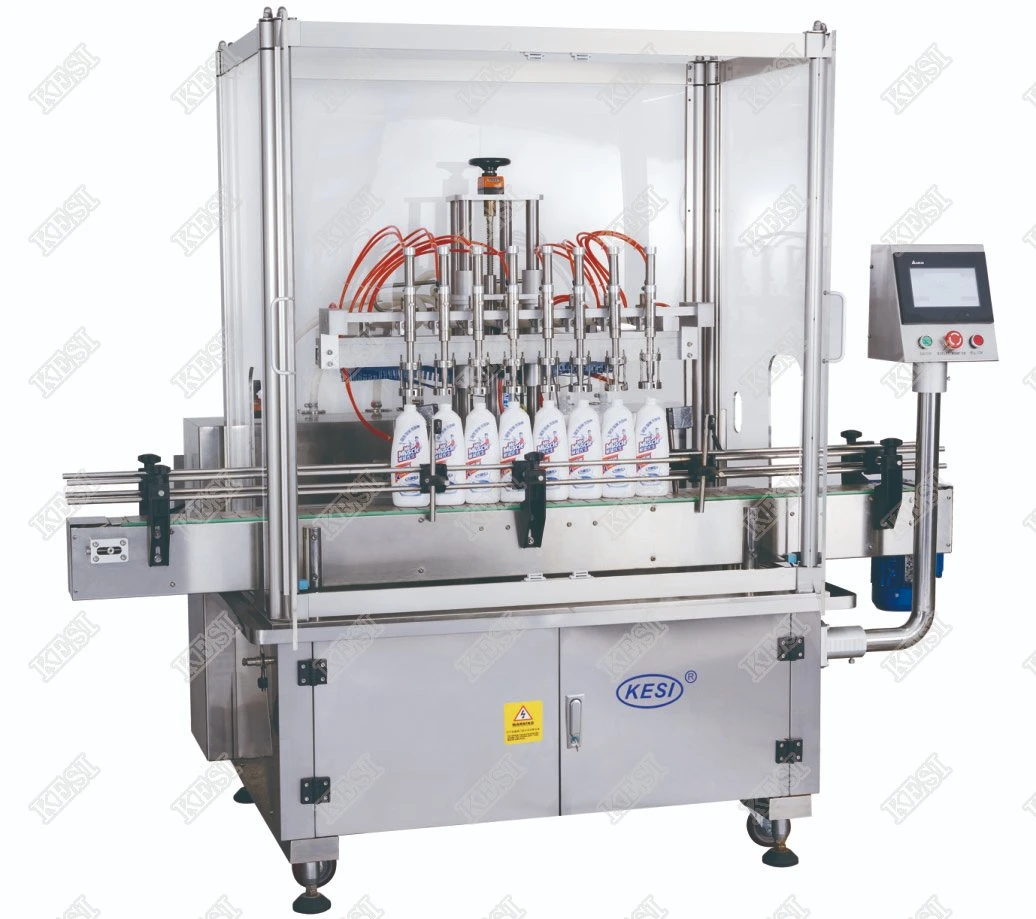

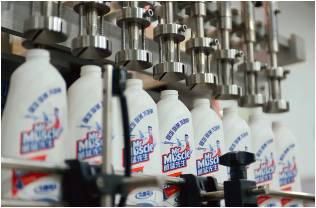

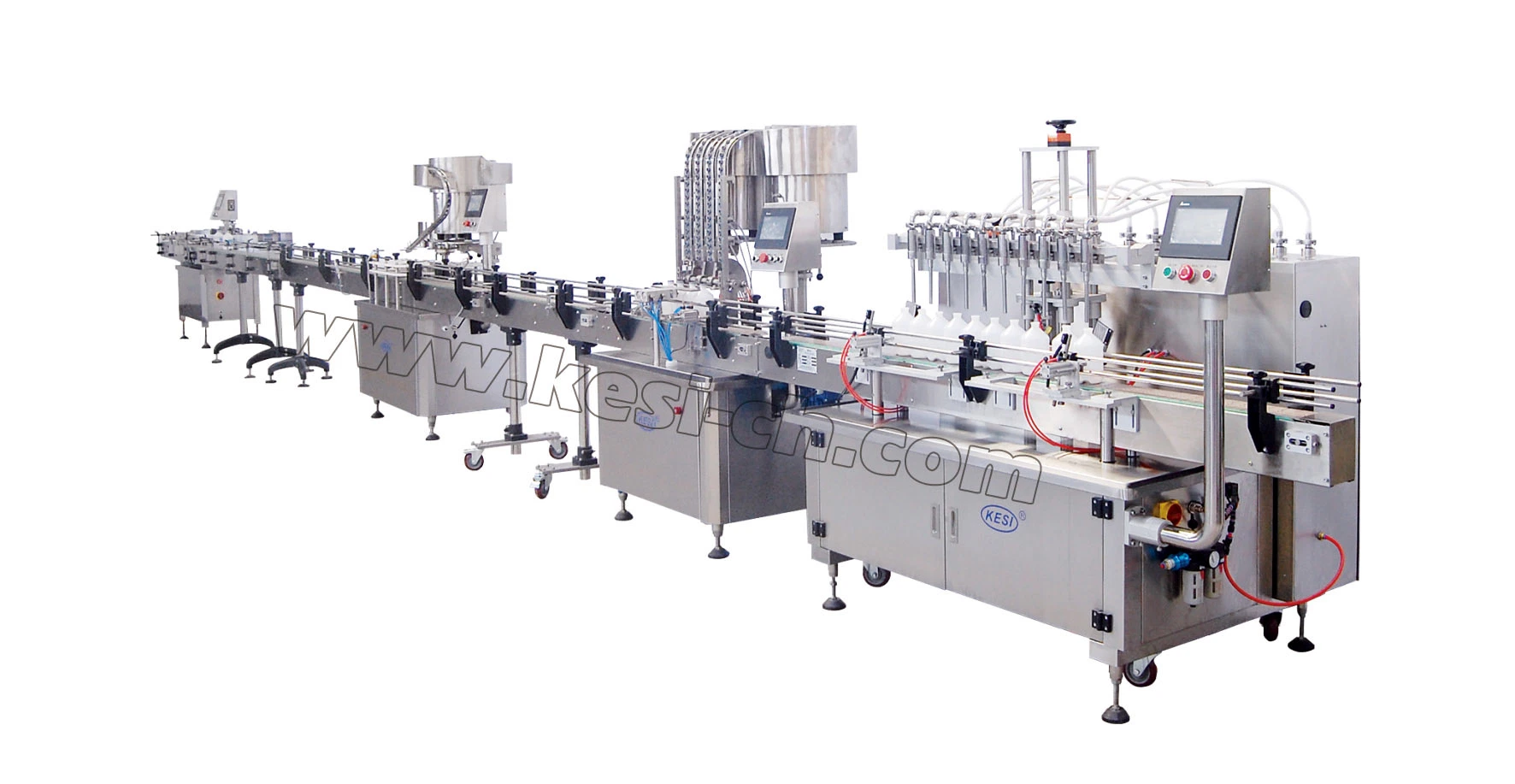

Automatic Bottle Liquid Linear Piston Filling Machine (YBG)
The timed flow volumetric filling machines are controlled by the piston to ensure filling precisely. The product bulk supply is pumped into a holding tank above a set of pneumatically operated valves. Each valve is independently timed by the filler's master computer so that precise amounts of liquid will flow by gravity into the container.
Key Characteristics
✔
Multi-cycle filling capability to satisfy large load requirements.
✔
User-friendly interface and PLC control system.
✔

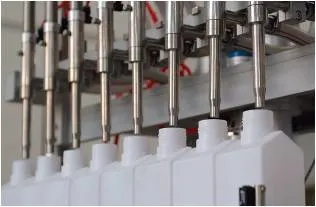

Pneumatic valve protection to prevent nozzle dripping.
✔
Available servo nozzle height and dive options.
✔
Integrated safety sensors: No Product/No Fill, No Bottle/No Fill, and Downstream Back-up suspend operation.
Technical Parameters
| Speed (8 nozzles) | 30 - 120 bottles/min |
| Container Size | 50ml - 5000ml |
| Accuracy | ≤±0.5% |
| Power Supply | 220V, 50Hz |
| Power | 1kw |
| Air Pressure | 0.4MPa - 0.6MPa |
| Air Consumption | 0.5m³ |
| Weight | 550kg |
| Dimension | 2100mm * 1640mm * 1670mm |
| * Special needs upon your request |

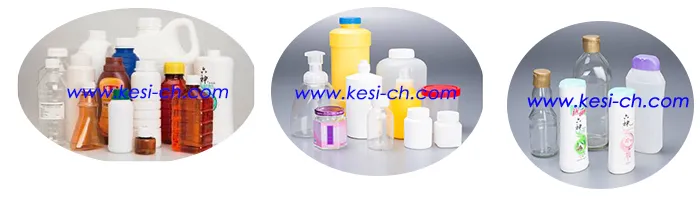

Machine Application
This linear type piston filling machine is applicable to all kinds of free-stand containers and widely used across various industries:
✦Pharmaceutical
✦Chemical & Agrochemical
✦Cosmetic
✦Food & Beverage
✦Light Industry

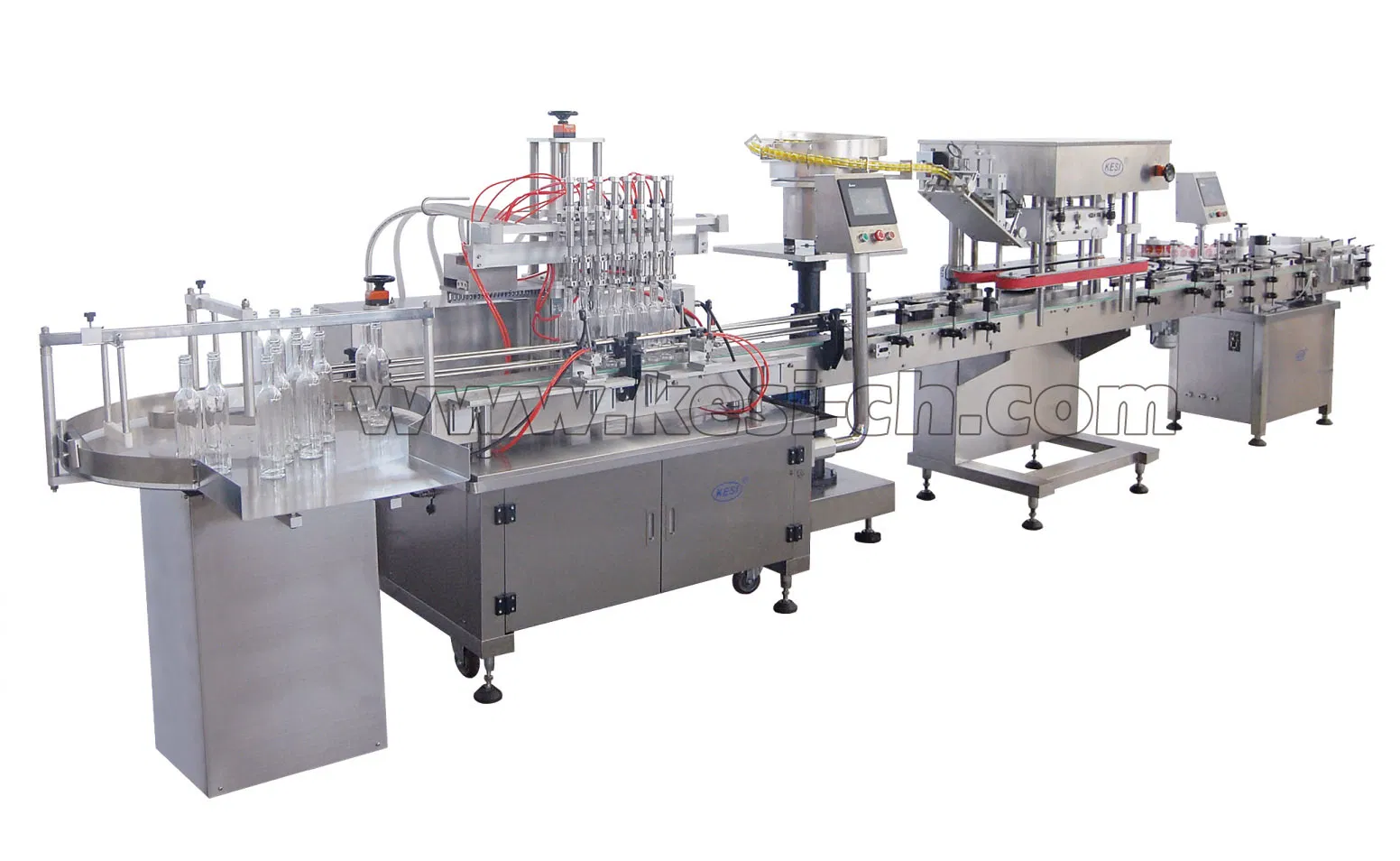

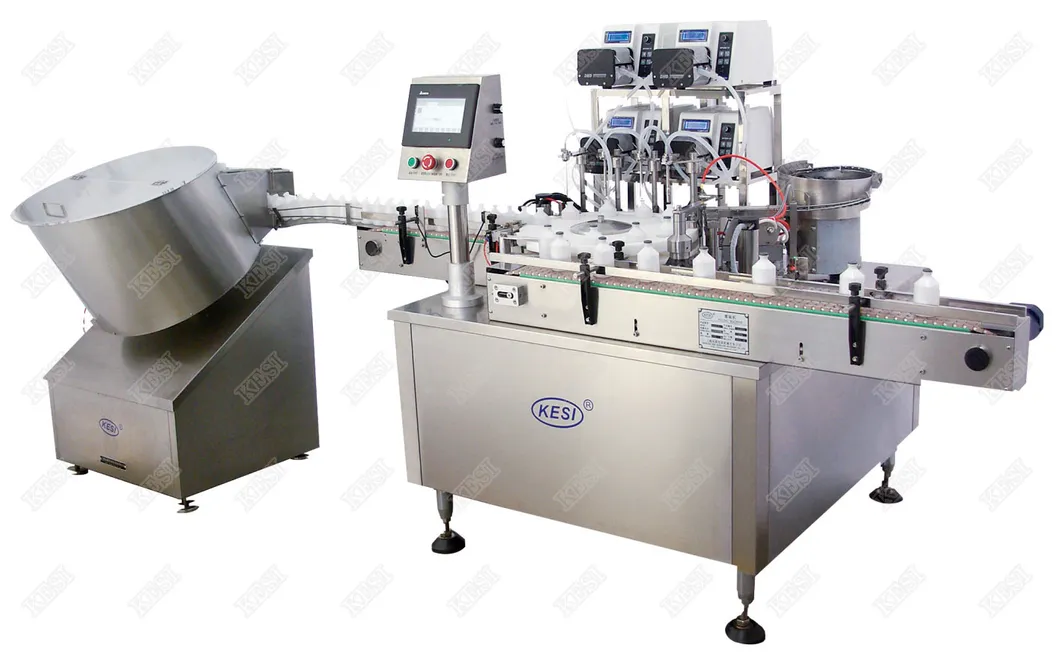

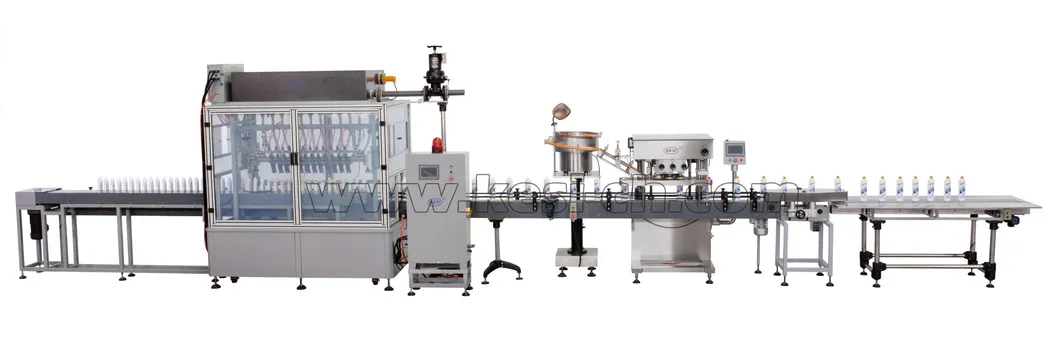

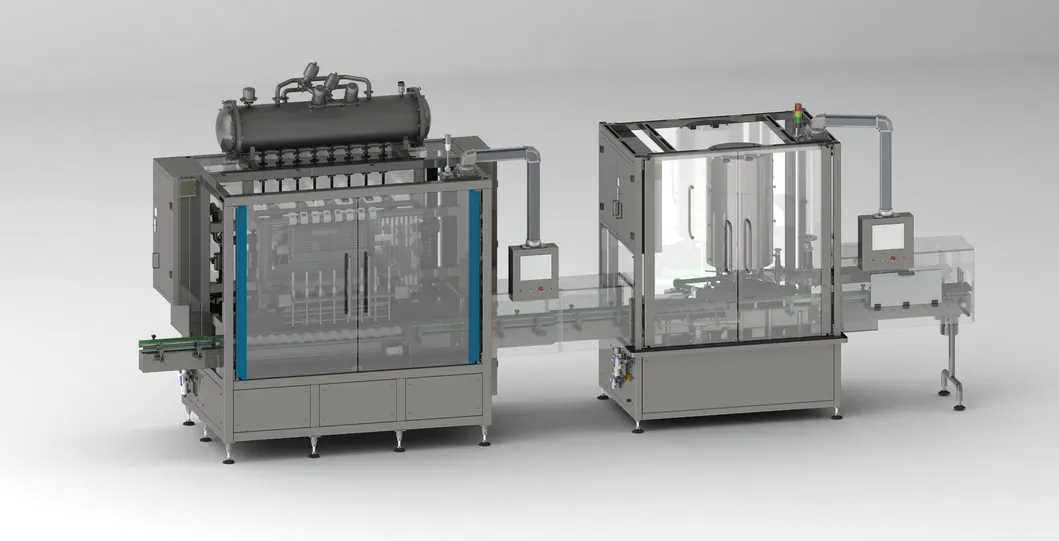

Production Line Capabilities
Industry Experience
With over 25 years of commitment to the machinery industry since 1998, the production scope includes:
1. Unscrambler
2. Filling Machine
3. Capping Machine
4. Sealing Machine
5. Labelling Machine
6. Carton Packing Machine
7. Palletizing System
Frequently Asked Questions
What types of liquids and containers can this machine handle?
The YBG model is designed for various liquids and can accommodate PE, metal, plastic, and glass bottles ranging from 50ml to 5000ml.
What is the filling accuracy of the linear piston filler?
The machine uses a plunger dosing device and piston control to ensure high precision with an accuracy of ≤±0.5%.
How does the machine prevent dripping and product waste?
It features a pneumatically operated valve system to protect bottles from nozzle dripping and includes a "No Bottle/No Fill" sensor to suspend operation when containers are absent.
Is the machine easy to operate and control?
Yes, the machine is equipped with a user-friendly interface and a PLC control system for easy adjustments and operation monitoring.
What is the typical production speed for this equipment?
For an 8-nozzle configuration, the machine can reach speeds between 30 to 120 bottles per minute, depending on the container size and liquid properties.
Does the machine meet international quality standards?
Yes, the equipment is manufactured according to ISO9001:2008 specifications and holds CE Certification.
