📋 Basic Information
Material Properties
PE Bag Sealing
Production Capacity
200 Units Each Month
Application:
Cosmetics, Cleaning, Detergent, Drinks, Oil, Dairy Products, Skin Care Products, Hair Care Products, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning
🚀 Product Description

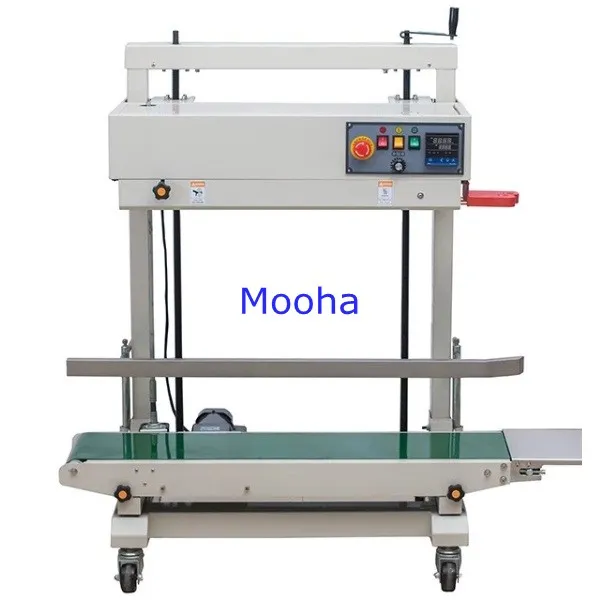

Heavy Duty 15kg Continuous Band Sealer Plastic Bag Sealing Machine
📊 Technical Parameters
| Model | FR-1100V |
| Voltage | 110/220V 50-60Hz |
| Power | 1.235Kw |
| Sealing Speed | 0-12m/min |
| Sealing Width | 6-12mm |
| Height Range | 80-600mm |
| Temperature Range | 0-300ºC |
| Max. Conveyor Loading | 15KGS |
| Printing Category | Steel wheel printing |
| Machine Weight | 45KGS |
| Machine Size | 1243×580×1228mm |
⚙️ Key Features
The FR series continuous film sealing machines are designed for high-efficiency production, integrating carrying, sealing, and printing into a single seamless operation. Key advantages include:

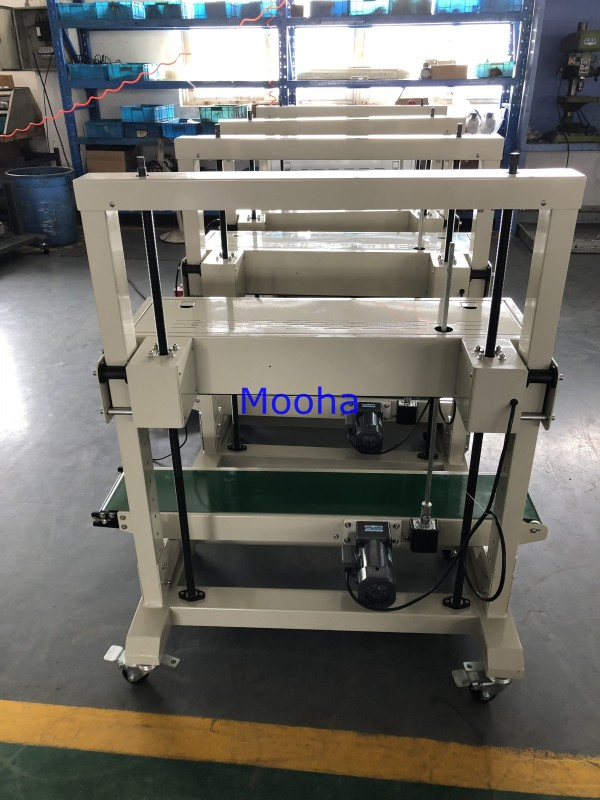

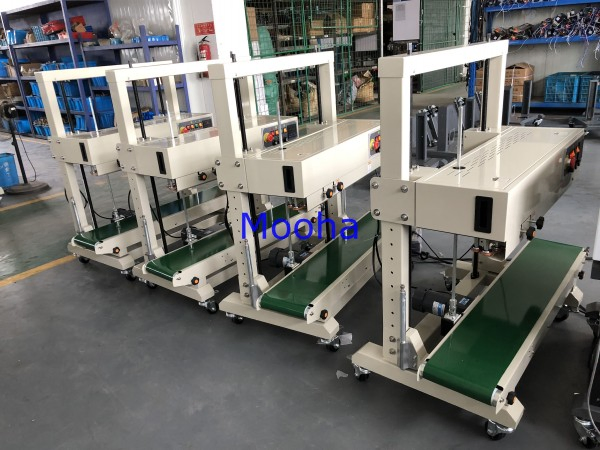

- Versatile Configuration: Can be manufactured in horizontal, vertical, or stand-feet formats to suit different workspace needs.

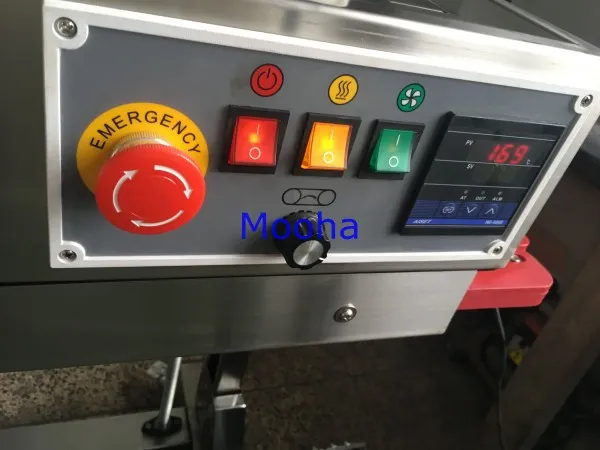

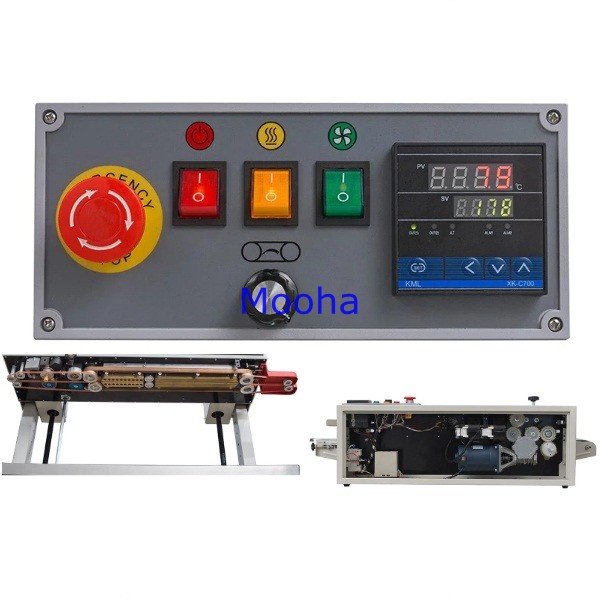

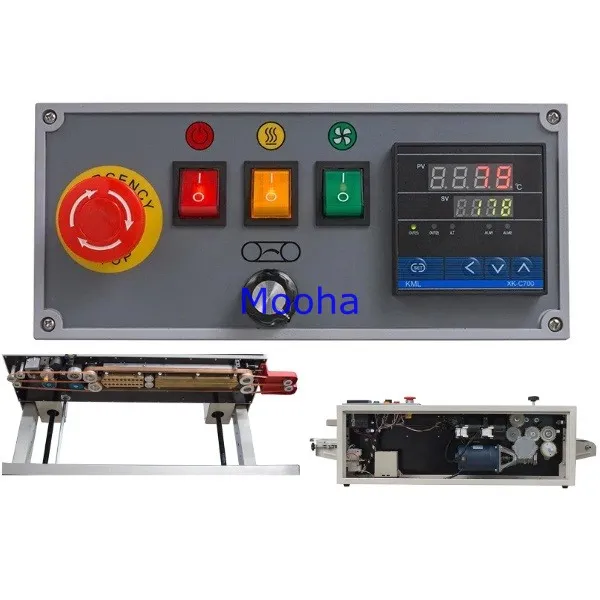

- Advanced Temperature Control: Utilizes an electronic constant temperature mechanism for consistent seal quality.
- Adjustable Speed: Equipped with a stepless speed regulating transmission motor.
- Material Compatibility: Capable of sealing various types of plastic film materials.

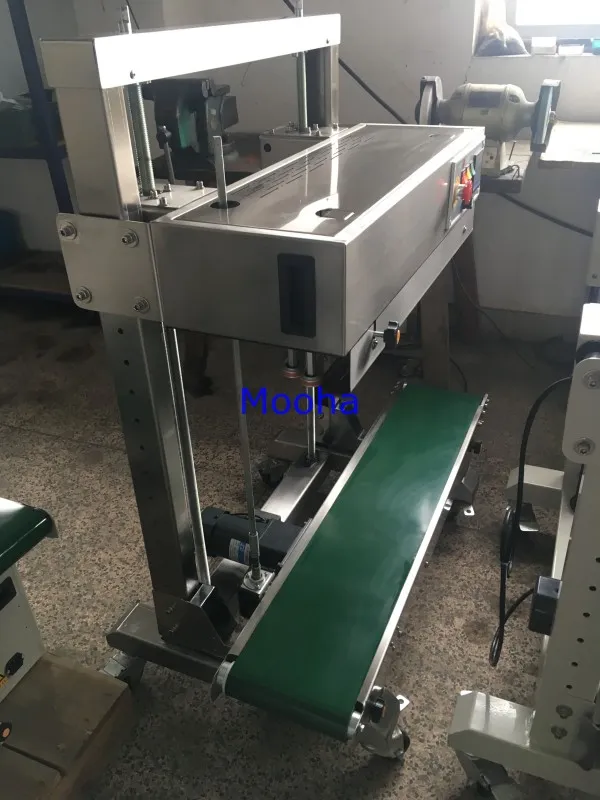

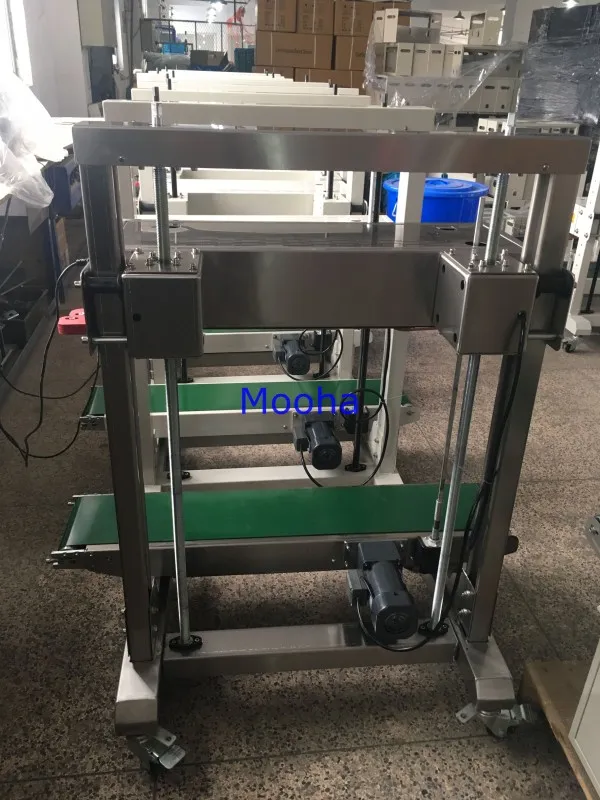

- Customization: Standard models feature a painted body, with high-quality stainless steel body options available upon request.

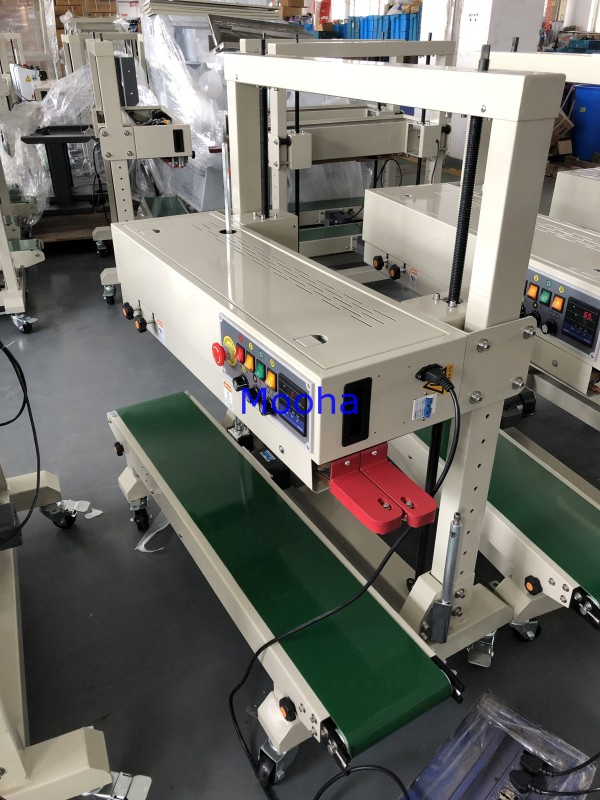

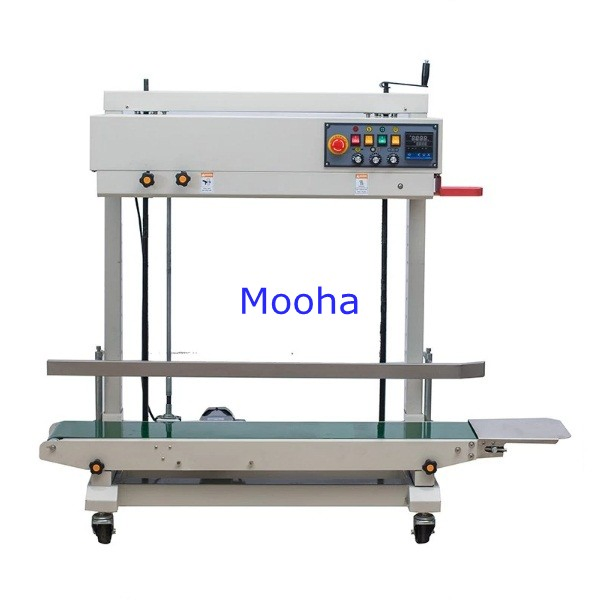

📸 Product Details & Gallery
❓ Frequently Asked Questions (FAQ)
1. What is the maximum weight the conveyor can handle?
The FR-1100V model is a heavy-duty sealer with a maximum conveyor loading capacity of 15kg.
2. Can this machine print expiration dates or batch codes?
Yes, this machine features steel wheel printing, allowing it to seal and print in one continuous operation.
3. Is the sealing speed adjustable?
Yes, it uses a stepless speed regulating transmission motor, allowing for a sealing speed range of 0 to 12 meters per minute.
4. What materials can be sealed with the FR-1100V?
It is designed to seal plastic films made from various materials, specifically optimized for PE bag sealing and other film-based packaging.
5. What is the temperature range for the sealing process?
The machine features an electronic constant temperature mechanism with a range from 0 to 300ºC.
6. Does the machine come in stainless steel?
The standard machine comes with a painted body, but we offer custom-made stainless steel body options to meet specific hygienic or environmental requirements.
