1 / 5
| Model | Customized | Automatic Grade | Automatic |
|---|---|---|---|
| Material Type | Granular | Filling Valve Head | Multi-Head |
| Structure | Rotary | Dosing Device | Capacity Cup |
| Filling Principle | Pressure | Packaging | Box |
| Power Source | 3p/AC380V | Installed Power | 42kw |
| Capacity | 3000 PCS/Hour (1ml) | Standard | cGMP |
| Origin | China | Deflasher | Internal Punching |

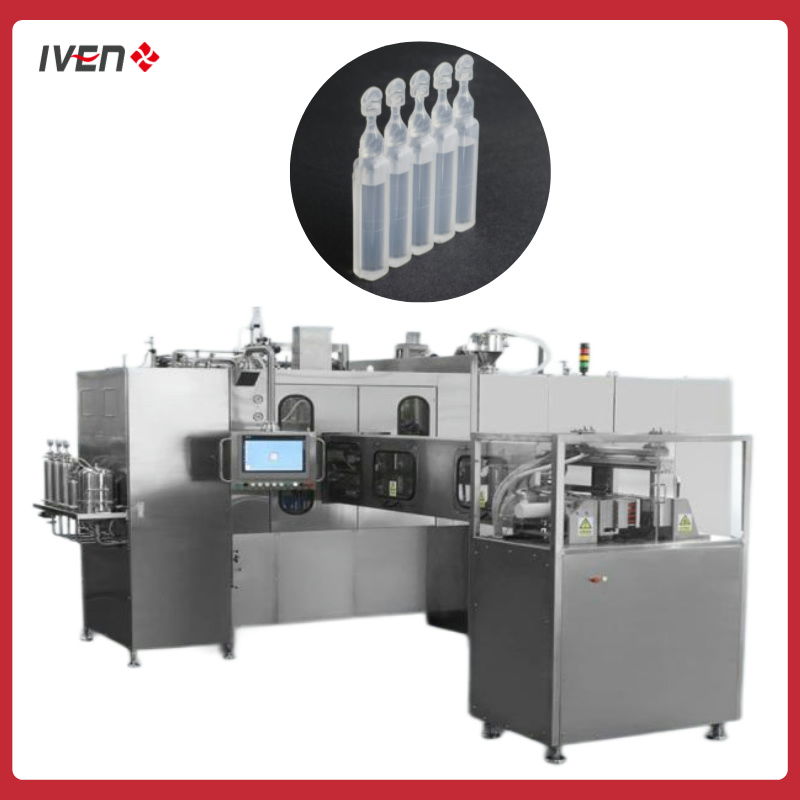

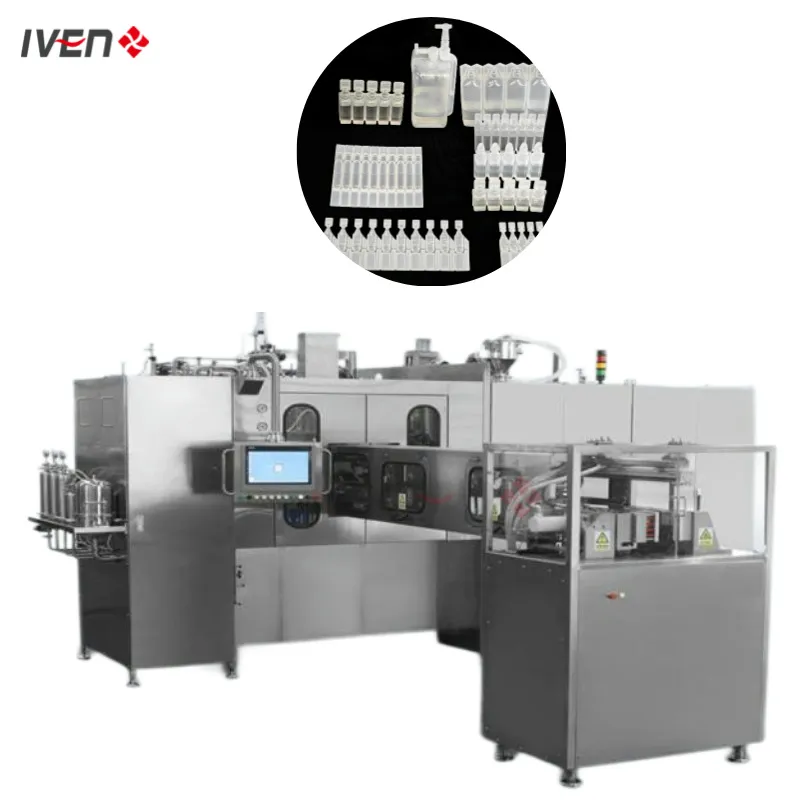

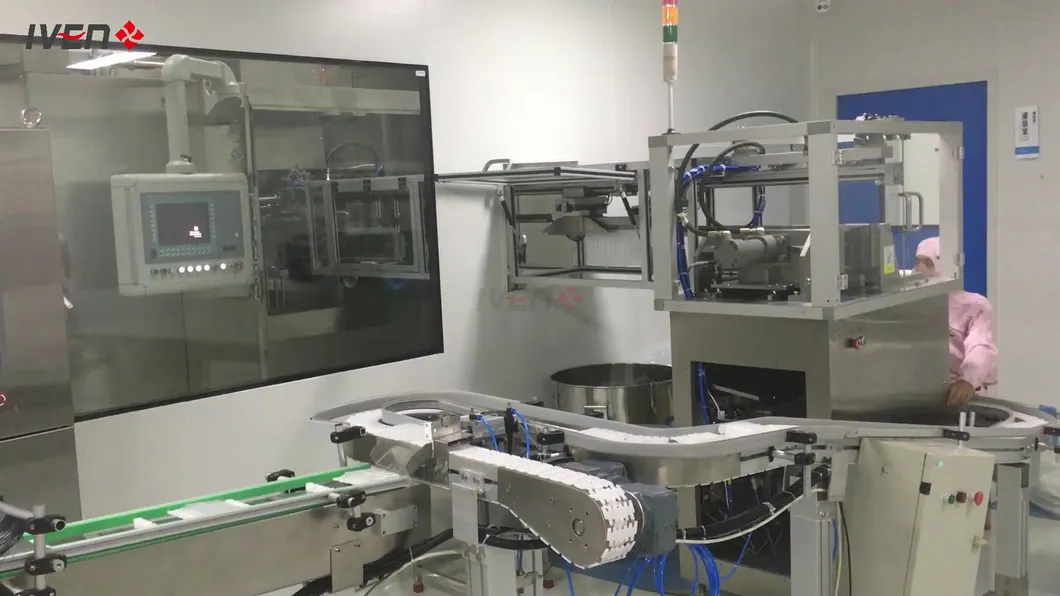

Liquid BFS Auto-Form Injection Molding Filling Machine

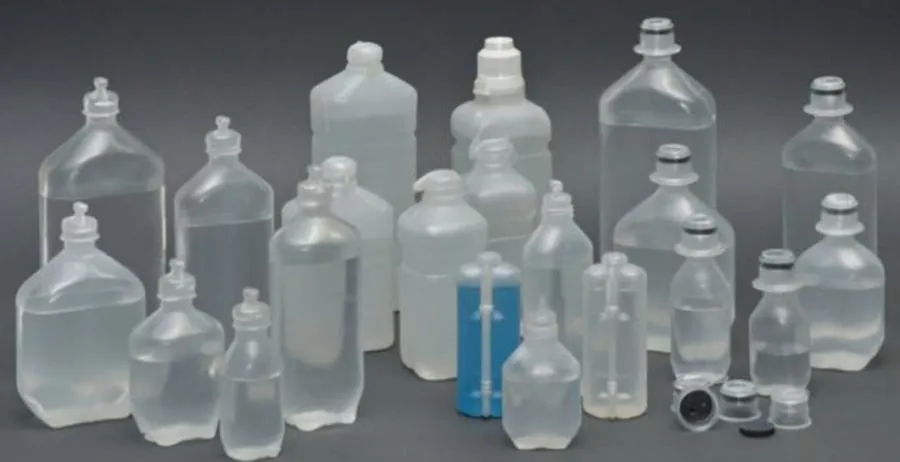

The BFS is a dedicated state of the art system, enabling primary packaging of bulk pharmaceutical solutions into plastic containers of polypropylene (PP), high density polyethylene (HDPE), or low density PE (LDPE), using a Blow-Fill-Seal (BFS) technology.
The BFS process is performed automatically in a single machine under a controlled environment (sterile filtered air-shower), including:

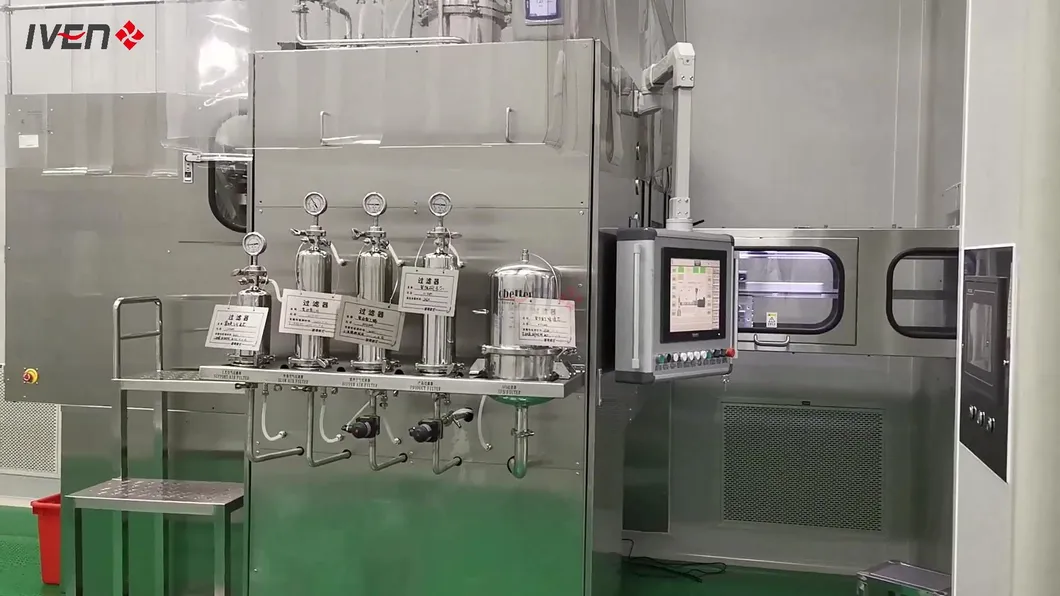

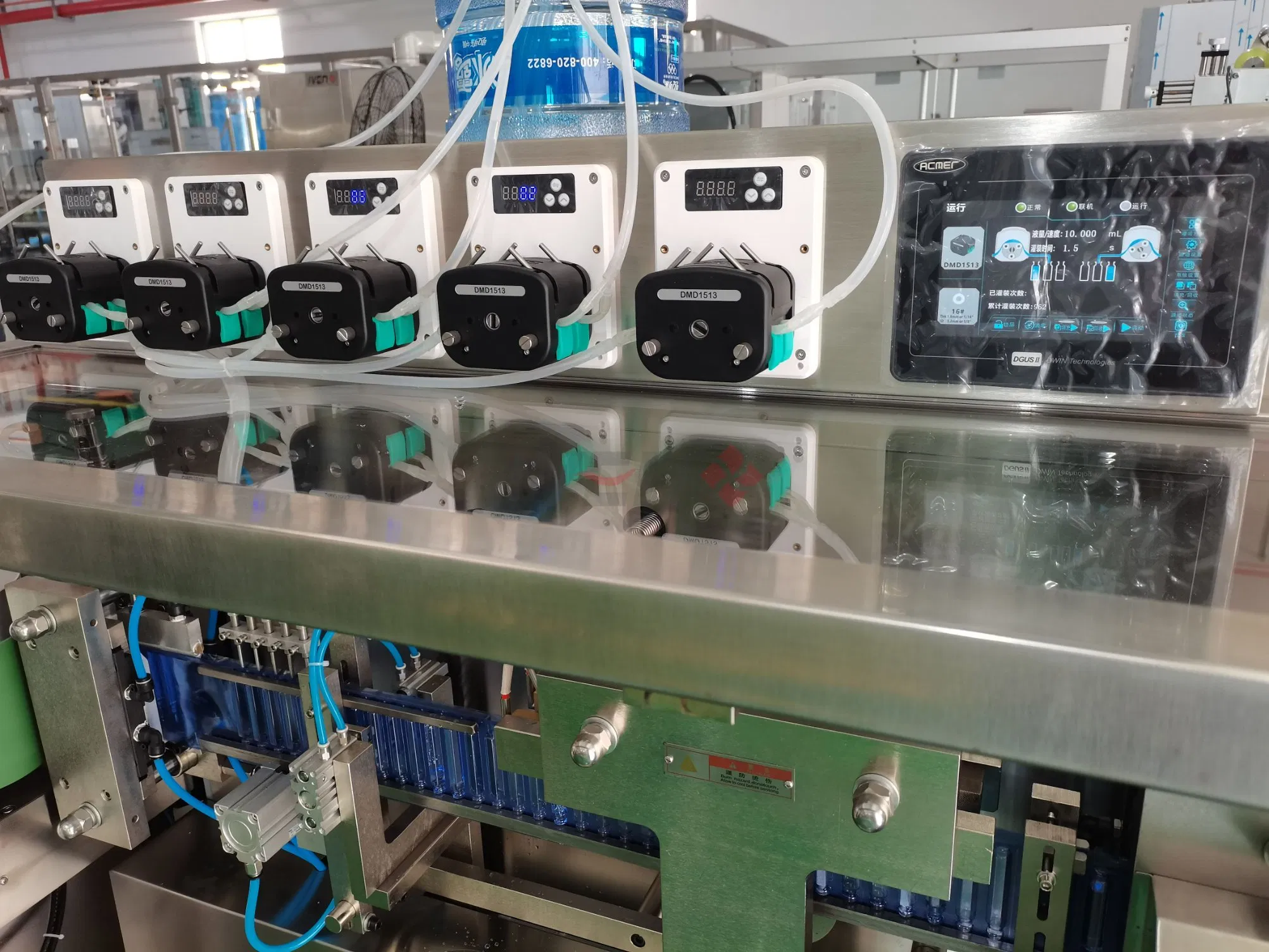

The filling unit assembly is composed of filling nozzles, the manifold with filling valves, and the assembly for sterile air shower around the nozzles. The design is compact and particularly suitable for clean environments. The absence of hydraulic cylinders offers a safe and clean assembly right above the filling nozzles.
| Project | Parameter Details |
|---|---|
| Size (L×W×H) | 3500*1400*2800mm |
| Weight | 4.5T |
| Power Source | 3P/AC380V |
| Installed Power | 42Kw |
| Packing Materials | PE / PP |
| Specification Range | 1ml - 50ml |
| Filling Accuracy | ±1.5% (based on 5ml water) |
| Cooling Water | 8-12ºC @ 4bar |
| Pure Steam | 125ºC @ 2bar |
| Compress Air | no oil, no water @ 8bar (200NL/min) |
