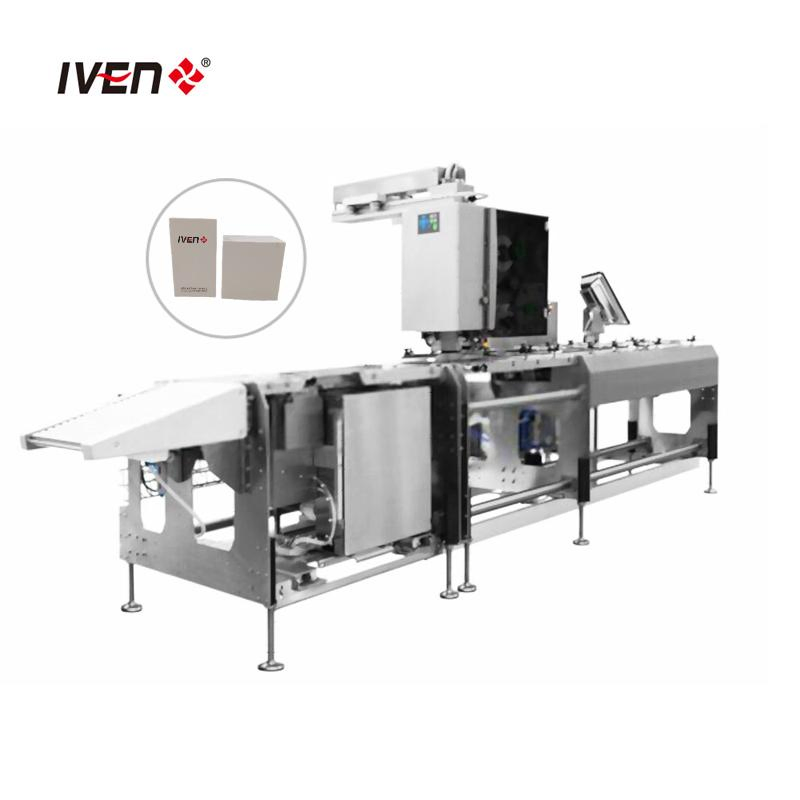

Case Erecting and Filling Machinery Full Automation Small Vertical Tablet Capsule Packaging Line Powder Packing Machine with Low Cost
Case Erecting and Filling Machinery Full Automation Small Vertical Tablet Capsule Packaging Line Powder Packing Machine with Low Cost
Case Erecting and Filling Machinery Full Automation Small Vertical Tablet Capsule Packaging Line Powder Packing Machine with Low Cost
Case Erecting and Filling Machinery Full Automation Small Vertical Tablet Capsule Packaging Line Powder Packing Machine with Low Cost
Case Erecting and Filling Machinery Full Automation Small Vertical Tablet Capsule Packaging Line Powder Packing Machine with Low Cost
1 / 5
Case Erecting and Filling Machinery Full Automation Small Vertical Tablet Capsule Packaging Line Powder Packing Machine with Low Cost
Case Erecting and Filling Machinery Full Automation Small Vertical Tablet Capsule Packaging Line Powder Packing Machine with Low Cost
Case Erecting and Filling Machinery Full Automation Small Vertical Tablet Capsule Packaging Line Powder Packing Machine with Low Cost
Case Erecting and Filling Machinery Full Automation Small Vertical Tablet Capsule Packaging Line Powder Packing Machine with Low Cost
Case Erecting and Filling Machinery Full Automation Small Vertical Tablet Capsule Packaging Line Powder Packing Machine with Low Cost

Case Erecting and Filling Machinery Full Automation Small Vertical Tablet Capsule Packaging Line Powder Packing Machine with Low Cost

After-sales Service: Field Installation, Commissioning and Training
Warranty: 1 Year
Automatic Grade: Field Installation, Commissioning and Training
Send Inquiry

Product Description

Basic Specifications
Model NO.
customized
Application
Drinks, Pharmaceutical & Medical
Type
Forming Filling Sealing Machine
Driven Type
Electric
Material Type
Liquid
Packaging
Cartons / Paper
Capacity
Customized
Standard Plate
80*57mm
PVC Specs
0.15~0.5*120mm
Voltage
220/380V 50 Hz

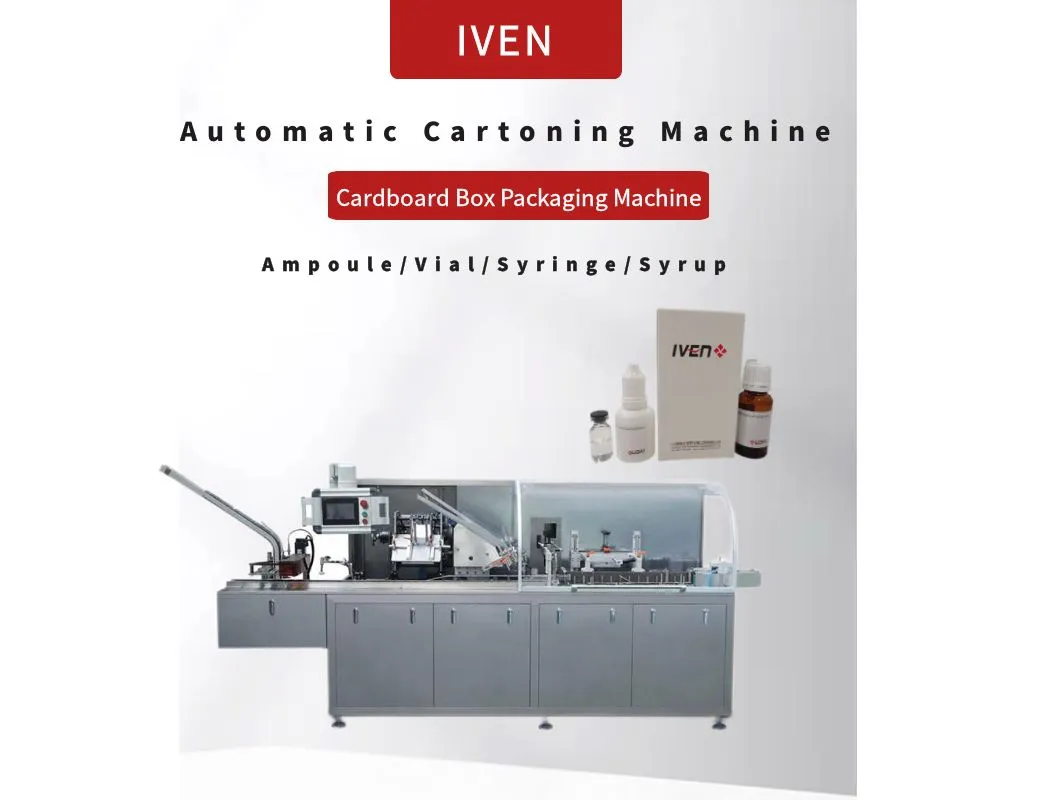

Vertical Tablet Capsule Packaging Line
Core Performance Advantages
  • Automatic Thermal Control: The heating plate automatically closes and opens upon start, significantly reducing material waste.
  • Cylinder Heat Sealing: Anilox rollers automatically lift when the machine stops, preventing blister deformation from thermal radiation and extending machine life.
  • High-Efficiency Rolling Sealing: Small contact area with high relative pressure ensures thorough heat sealing and faster overall production speed.
  • Safety Protection: Equipped with emergency stop devices and automatic alarms for PVC depletion or fragment issues.
  • GMP Compliance: All contact parts and charging hoppers are made of 304 or 316 stainless steel and non-toxic materials.
  • Material Saving Design: Servo-stepping technology reduces longitudinal waste to just 1 mm, offering significant annual cost savings.

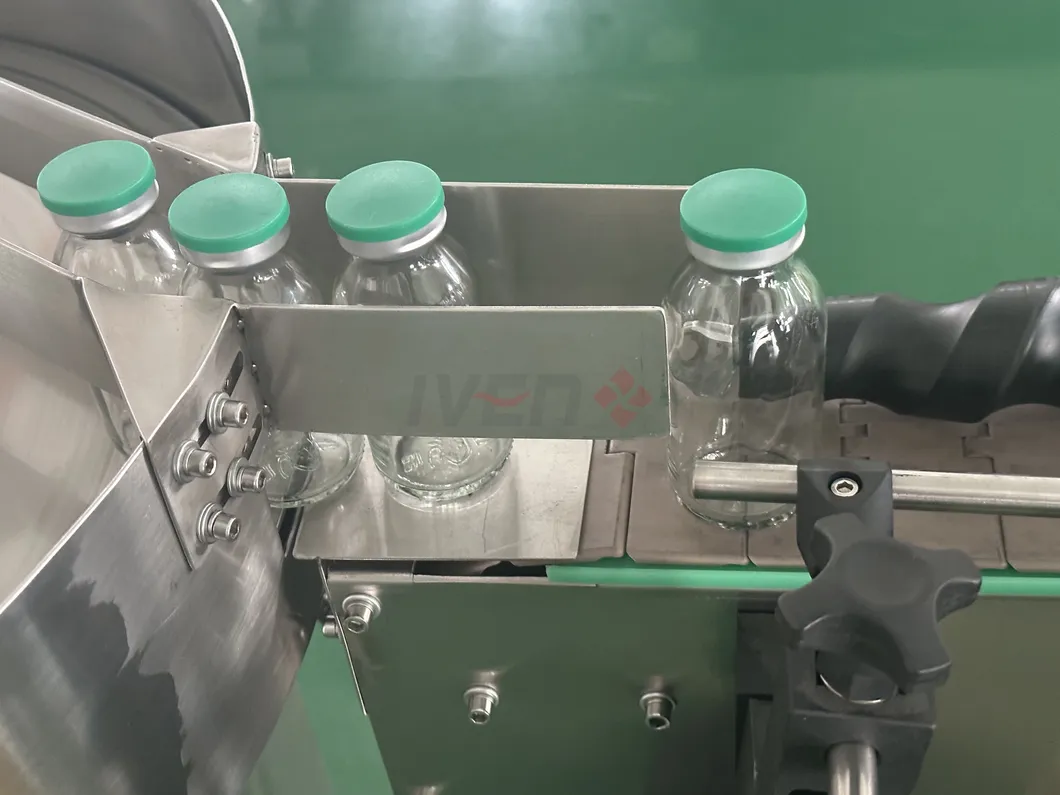

Packaging Detail 1

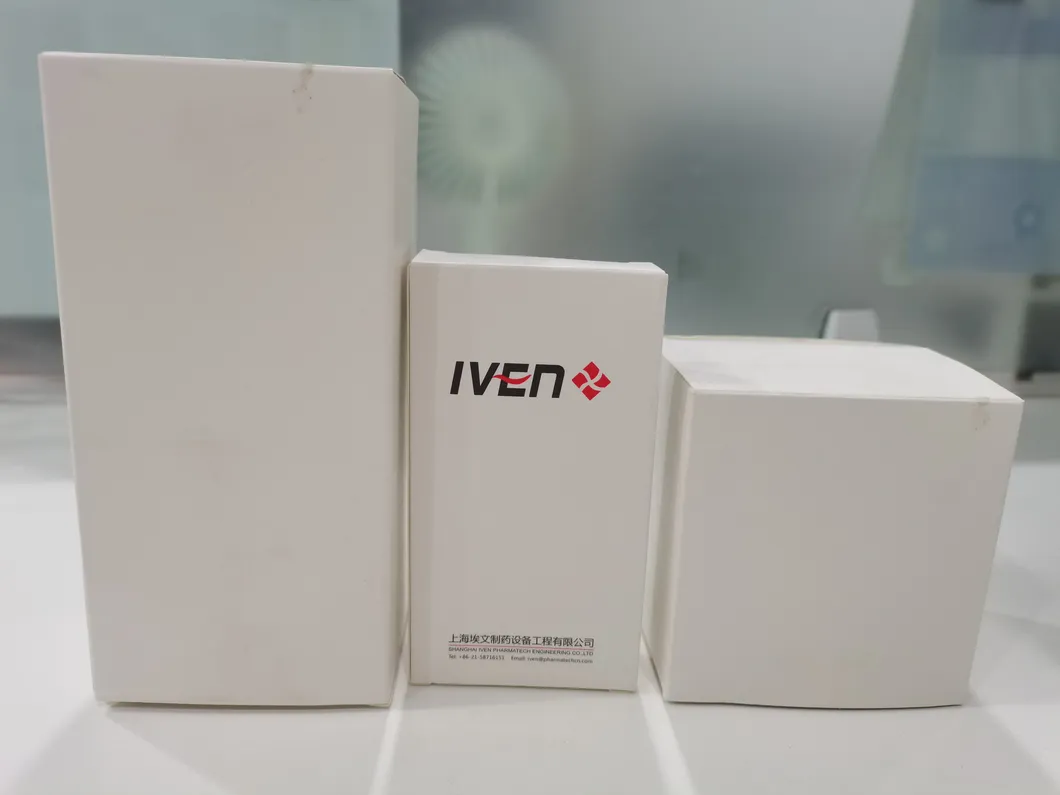

Packaging Detail 2

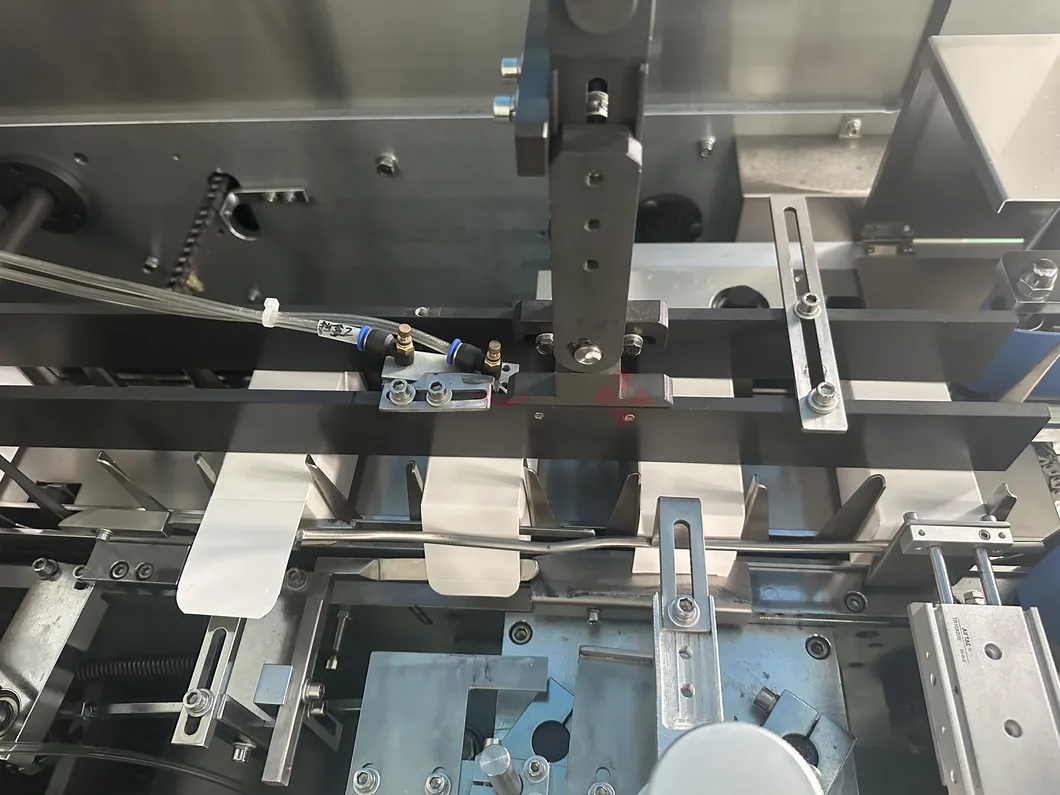

Packaging Detail 3
Integrated Protection System:
  • Automatic shutdown if PVC or aluminum foil runs out.
  • Automatic alarm for lack of drugs/products.
  • Automatic shutdown for insufficient air pressure.
  • PLC-controlled safety cutoff if temperatures exceed preset limits.

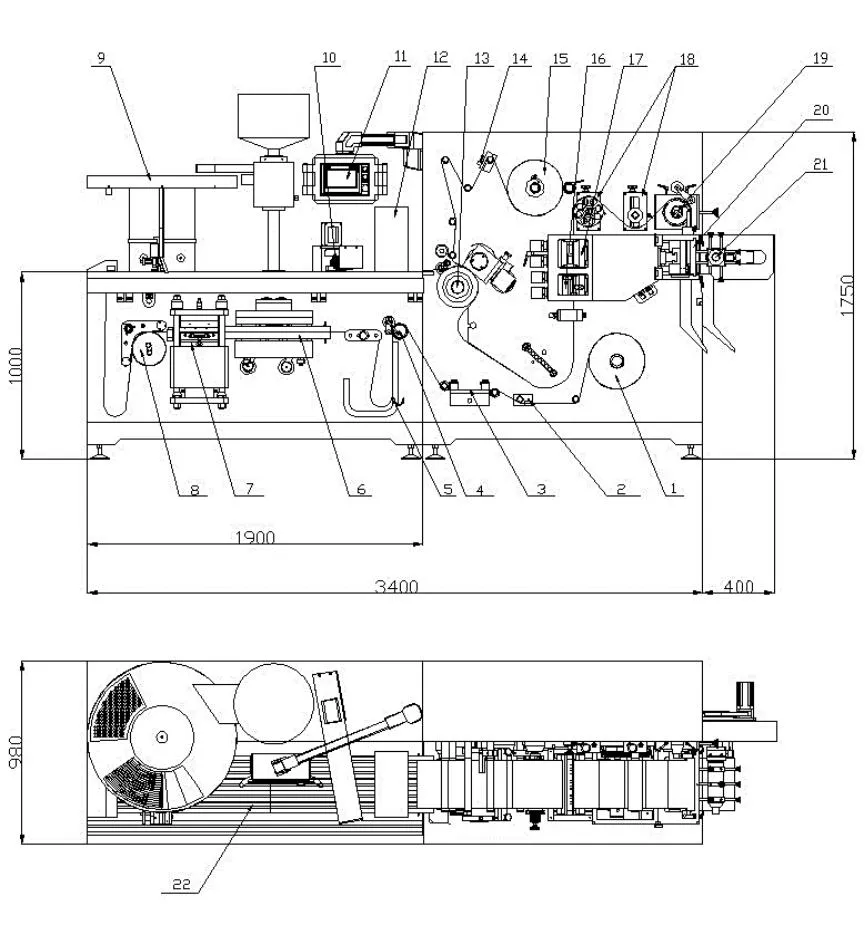

Component View 1

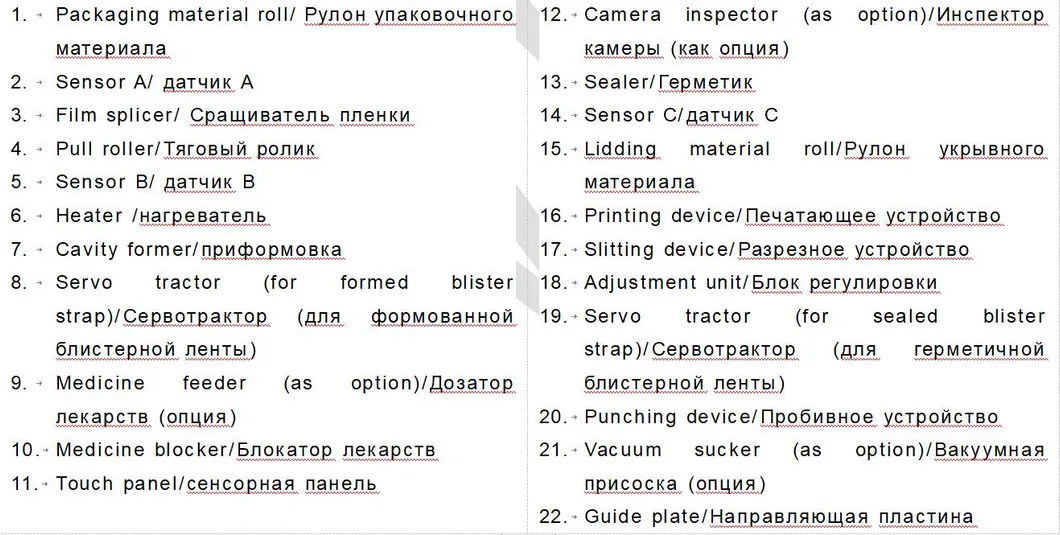

Component View 2
Technical Parameters
No. Parameter Item Technical Data
1Punch Frequency80-120 times/min
2Capacity4 blisters/time
3Max Forming Area230mm × 260 mm (L × W)
4Max Forming Depth16 mm
5StrokeStamping: 20-140 mm / Molding: 150-250mm
6Standard Blister80 × 57 mm (customizable)
7Total Power Supply20KW
8Supply Voltage270/200V 50HZ
9Overall Dimension4050 × 120 × 1970 mm
10Machine Weight3200Kg
Maintenance & Operation
Quick Mold Change: T-slot guidance and adjustable handles allow tool-free locking. Complete die sets (forming, sealing, batch numbering) can be swapped within 30 minutes with automatic alignment.
Mold Change Process

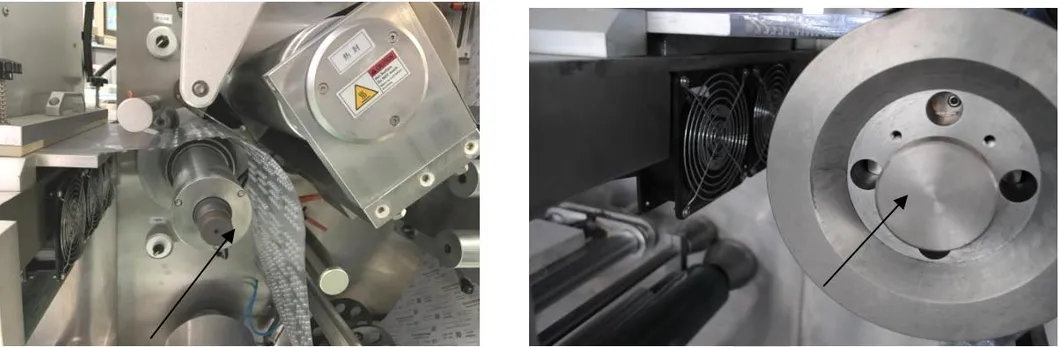

Push-pull rapid heat transfer sealing: Installation and removal of the heat seal mold take approximately 1 minute by loosening manual nuts.

Sealing Die

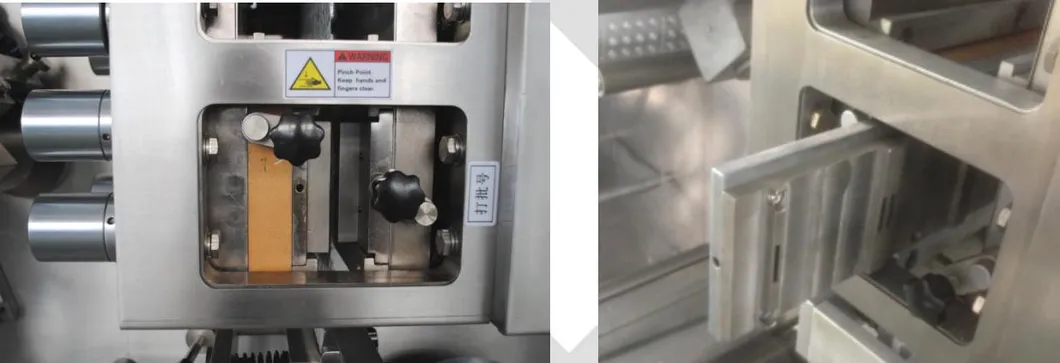

Drawer Batch Change
Production Showcase
Assembly Line
Production Process
Factory Floor
Finished Product
Vertical Packing Solution Workflow Machine Detail
Frequently Asked Questions
What types of products can this machine pack?
The machine is versatile and suitable for tablets, capsules, liquids, and powders, primarily used in the pharmaceutical, medical, and beverage industries.
Does the machine support quick mold changes?
Yes, it features a T-slot guided design and drawer-type batch changes, allowing a complete set of dies to be changed within 30 minutes without special tools.
What materials are used for parts in contact with drugs?
All parts in contact with medications are made of high-quality 304 or 316 stainless steel, fully meeting GMP hygiene requirements.
How does the machine handle material shortage?
The PLC system is integrated with sensors that trigger an automatic alarm and shutdown if there is a shortage of PVC, aluminum foil, or the product itself.
Is the machine energy efficient?
Yes, the servo-stepping technology minimizes material waste (down to 1mm waste edges), which can save significant material costs annually.
What are the power and air requirements?
The machine requires a 220/380V 50Hz power supply (20KW total power) and a compressed air supply with a pressure of 0.4-0.6MPA.
