Customization: Available
Warranty: 1 Year
Type: Volumetric Filling Machine
Send Inquiry

Product Description

Basic Specification
Model NO.
DH-Q1
Automatic Grade
Fully Automatic
Material Type
Powder
Filling Valve Head
Single-Head
Dosing Device
Auger
Filling Principle
Pressure
Structure
Linear
Packaging Material
Metal, Plastic, Bottle
Function
Powder Filling
Main Material
304 Stainless Steel
Specification
1-5000g
Capacity
100 Sets/Year
Automatic Seasoning Powder Filling Line Jar Can Filling Machine

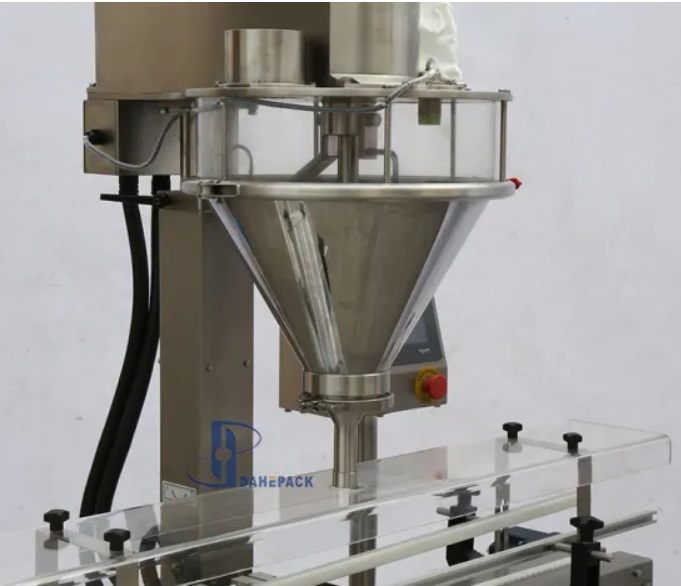

Machine Detailed View
Product Description

Bottles straight-feed system combined with powder vertical-feed system. When an empty bottle reaches the filling station, it is secured by the indexing stop cylinder. Filling starts automatically after a preset delay. Once the required powder volume is released, the cylinder retracts, and the filled bottle moves to the next station.

1
Automatic auger type can/bottles Jar metering filling machine.
2
Designed for filling various dry powders into different rigid containers: Can, Bottle, Jar, etc.
3
Equipped with a photo eye sensor for bottle detection (Bottle-Fill, No-Bottle No-Fill).
4
Full Stainless Steel Structure with quick-disconnect hopper.
5
Filling controlled by high-precision Servo Motor.
6
Capable of recording data for up to 10 different products.
7
Suitable for both non-free flow and free-flow powder products.
8
Filling head height is adjustable via handwheel for various container sizes.
Technical Specifications
Parameters DH-Q1-D100 DH-Q1-D160
Filling weight1-500g10-5000g
Filling accuracy<100g, ≤± 2%; 100-500, ≤± 1%<500g, ≤± 1%; >500, ≤± 0.5%
Filling speed15-30 bottles/min15-30 bottles/min
Power supply3P AC208-415V 50/60Hz3P AC208-415V 50/60Hz
Air supply6kg/cm² 0.05cbm/min6kg/cm² 0.05cbm/min
Total power1.2kw1.6kw
Total weight160kg300kg
Dimensions1500*760*1850mm2000*970*2030mm
Hopper volume25L (Optional 35L)50L (Optional 65L)
Optional functionLifting/Vibrating, Weighing functionLifting/Vibrating, Weighing function

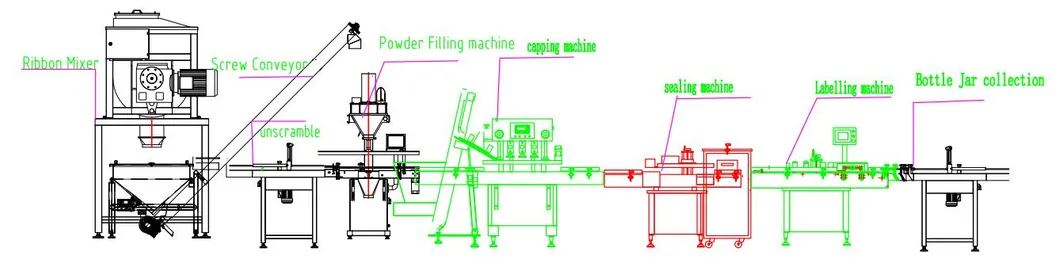

Production Process Line
Frequently Asked Questions
What types of powder can this machine fill?
The DH-Q1 series is designed to handle a wide range of dry powders, including seasoning, flour, chemical powders, and pharmaceutical powders. It works efficiently for both free-flow and non-free-flow materials.
How does the machine ensure filling accuracy?
The machine utilizes a high-precision servo motor to control the auger rotation, allowing for exact dosing. For higher accuracy requirements, we offer an optional "dosing by weighing" function.
Is the machine easy to clean between different product batches?
Yes, the machine features a quick-disconnect hopper and a 304 stainless steel structure, making it easy to dismantle and clean to prevent cross-contamination.
Can it handle different sizes of bottles or cans?
Absolutely. The filling head height is easily adjustable using a manual handwheel, allowing you to switch between various container heights quickly.
Does the machine stop if there are no bottles on the conveyor?
Yes, the system is equipped with a photo eye sensor that detects the presence of containers. It will not release any powder if no bottle is detected at the filling station.
