Customization: Available
After-sales Service: Free Consultation, Lifetime Paid After-Sales Servi
Warranty: One Year
Send Inquiry

Product Description

📊 Basic Information
Model NO.
AP-8BT-DUPLEX
Automatic Grade
Automatic
Type
Filling and Sealing Machine
Forming Species
Bag Moulding
Forming Function
Forming, Filling, Seal
Driven Type
Electric
Packaging Material
Plastic / Stainless Steel #304
Power Consumption
5kw
Speed
50-100 pcs/min
Origin
China
HS Code
8428909090
🛠️ Technical Specification
Name Content
Model No.AP-8BT-DUPLEX
Pouch Size (Length)130-450mm
Pouch Size (Width)100-170mm
Speed50-100pcs/Min
Max. Filling Volume200ml
Air Consumption190 N Liter/Min
Machine Case Materials304 Stainless Steel
Pouch MaterialsHeat Sealable Laminated Film

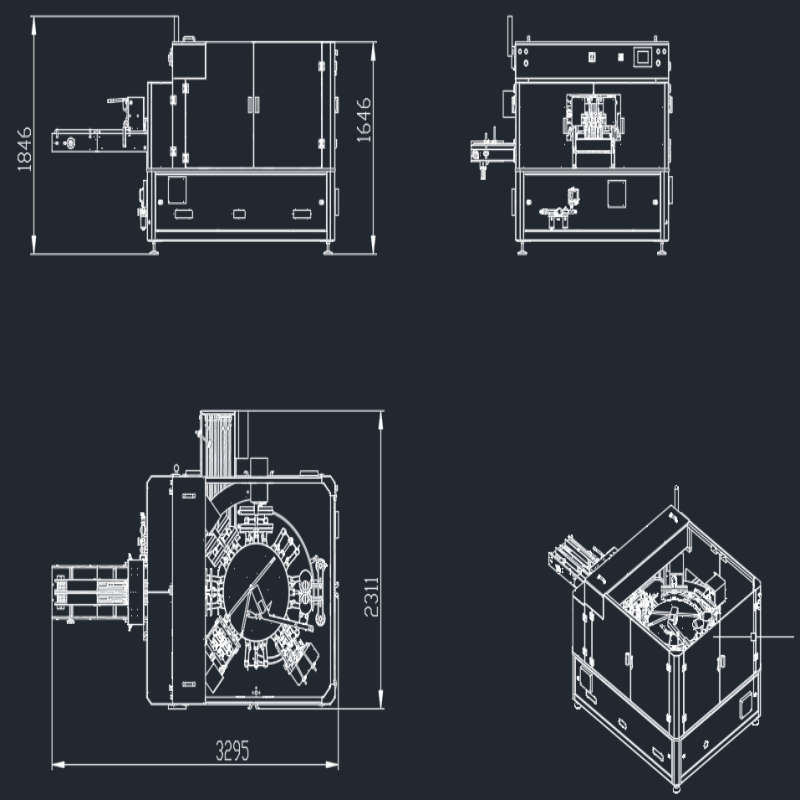

Machine SizeL3158mm * W2307mm * H1708mm (excluding dosing unit)
Electric Connection220V or 380V-3 Phase, 50 HZ/60HZ
Power Consumption5KW
🖼️ Product Display

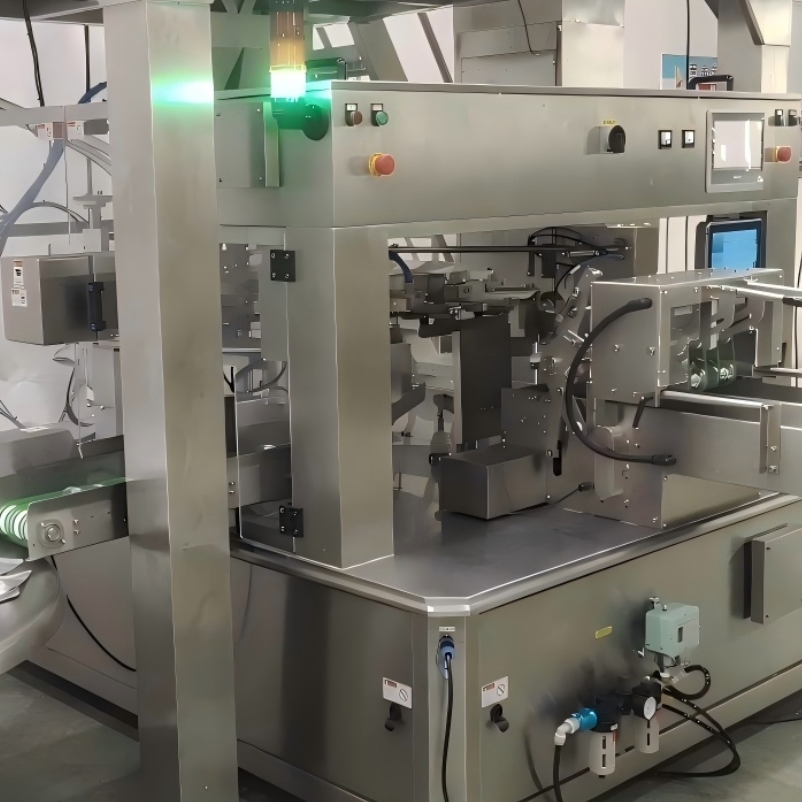

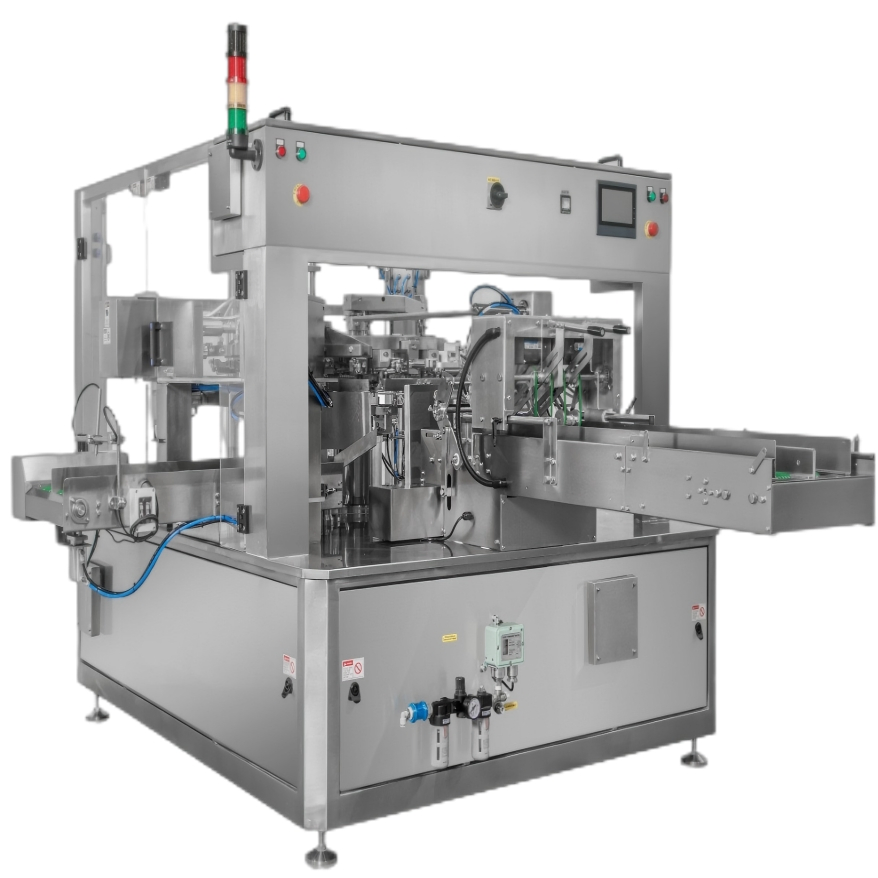

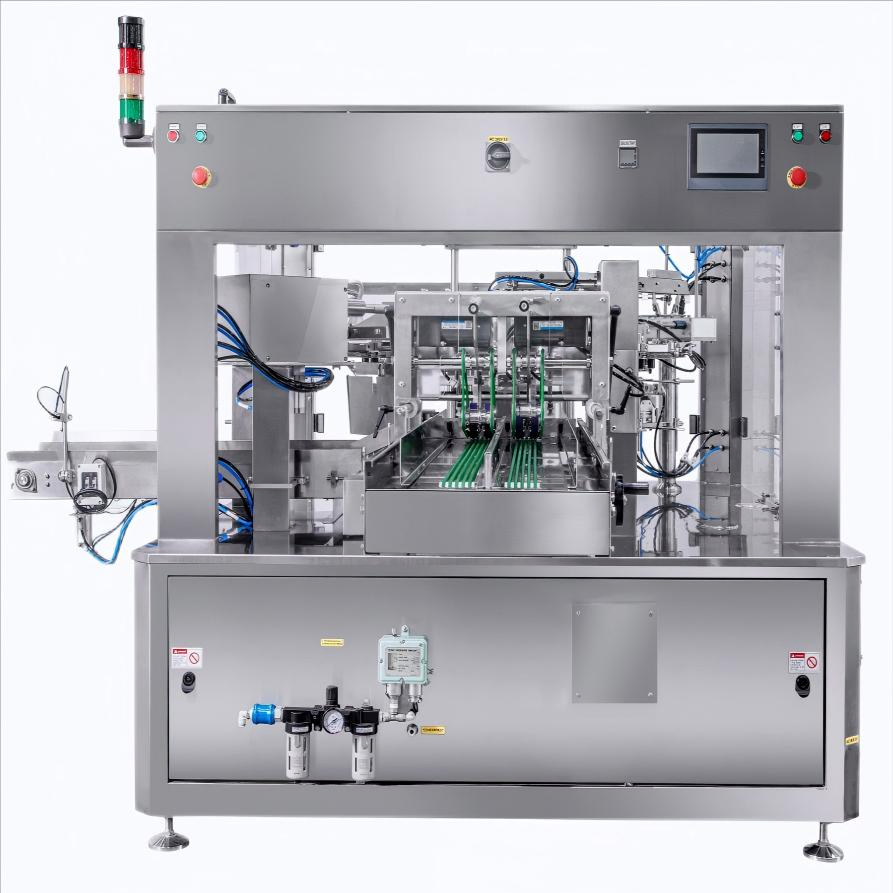

Automatic Rotary Premade Pouch Machine
Doypack Liquid Beverage Filling Machine

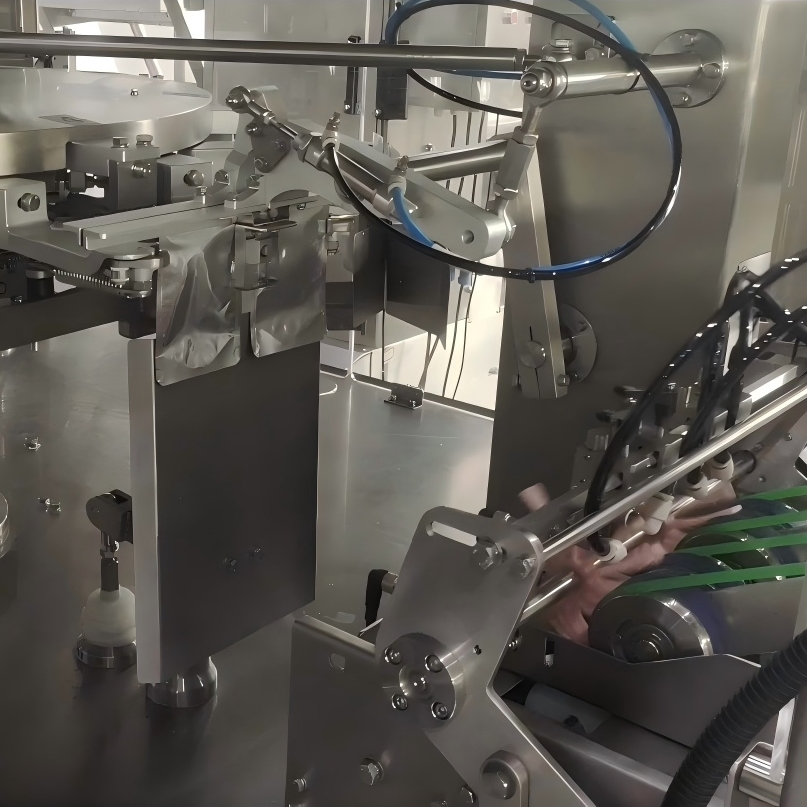

Rotary Premade Pouch Machine Details
Packaging Machine Components
Food Packing Machine Sealing Unit
Automatic Pouch Packaging
Liquid Filling System
💡 Product Application

The AP-8BT DUPLEX is expertly designed for premade pouch packaging, compatible with flat pouches, doypacks, stand-up pouches, zipper pouches, side spout pouches, and gusset pouches. By integrating different dosing units, it can handle a wide variety of products:

✨ Powder Products
  • Wheat flour, Soup mixes (via Auger System)
✨ Granule Products
  • Sugar, Seasoning (via Volumetric Measure or Scale)
✨ Liquid Products
  • Detergent, Shampoo, Rinse, Drinks (via Piston or Rotary Pump)
✨ Paste Products
  • Retort food (via Spiral or Rotary Pump)
🔄 Packing Process
  • Pouch feeding conveyor & pickup the pouch
  • Date coding & Zipper open device (optional)
  • Opening the bottom of pouch (for self-standing pouches)
  • Pouch top opening
  • First filling position
  • Second filling position (optional)
  • First sealing position
  • Second sealing position
  • Pouch feed out conveyor
⚙️ Standard Equipment
  • Panasonic PLC with 10" Inovance Touch Screen
  • Bag Infeed Conveyor
  • Bag opening blade with full opening detector
  • P.I.D. temperature controller
  • #304 Stainless Steel Construction
  • Graphical color touch panel
  • Discharge conveyor
❓ Frequently Asked Questions
1. What types of bags can the AP-8BT-DUPLEX handle?
It is designed for a variety of premade pouches, including flat pouches, doypacks, stand-up pouches, zipper pouches, side spout pouches, and gusset pouches.
2. What is the maximum production speed of this machine?
The machine operates at a speed of 50 to 100 pieces per minute, depending on the product characteristics and pouch size.
3. Can this machine be used for both liquids and solids?
Yes, by matching the machine with different dosing units like auger systems for powder or piston pumps for liquids, it can package a wide range of materials.
4. Is the machine body resistant to corrosion?
Yes, the machine features #304 Stainless Steel construction, making it durable and suitable for food and cosmetic industry standards.
5. Does the machine include a control system?
The machine is equipped with a high-quality Panasonic PLC and a 10-inch Inovance color touch screen for easy operation and monitoring.
6. What power supply is required for operation?
The standard electric connection is 220V or 380V-3 Phase, at 50Hz or 60Hz, with a power consumption of 5KW.
