| Model NO. | XGJ6 |
| Features | Capping |
| Machine Material | Stainless Steel |
| Packaging Material | Aluminum, Glass, Plastic |
| Warranty | 1 Year |
| Number of Capping | 6 Heads |
| Applicable Cover | Plastic and Aluminum Cover |
| Capping Rate | ≥99.5% |
| Power | 2kw |
| Transport Package | Wooden Case |
| Specification | 900*850*1800mm |
| Trademark | Yuquan |
| Origin | China |
| HS Code | 8422309090 |
| Production Capacity | 5000 ~ 7000 Bottles / Hour |
| Package Size | 100.00cm * 90.00cm * 200.00cm |
| Package Gross Weight | 550.000kg |

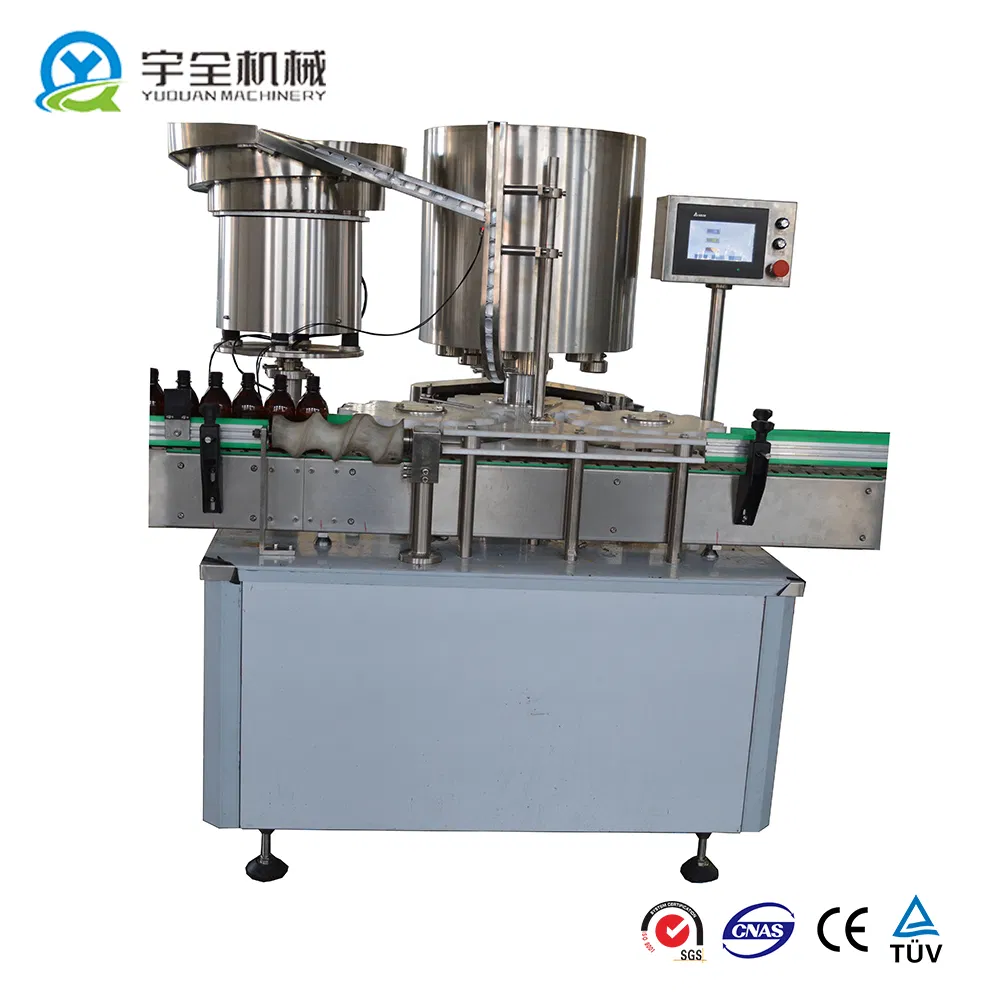

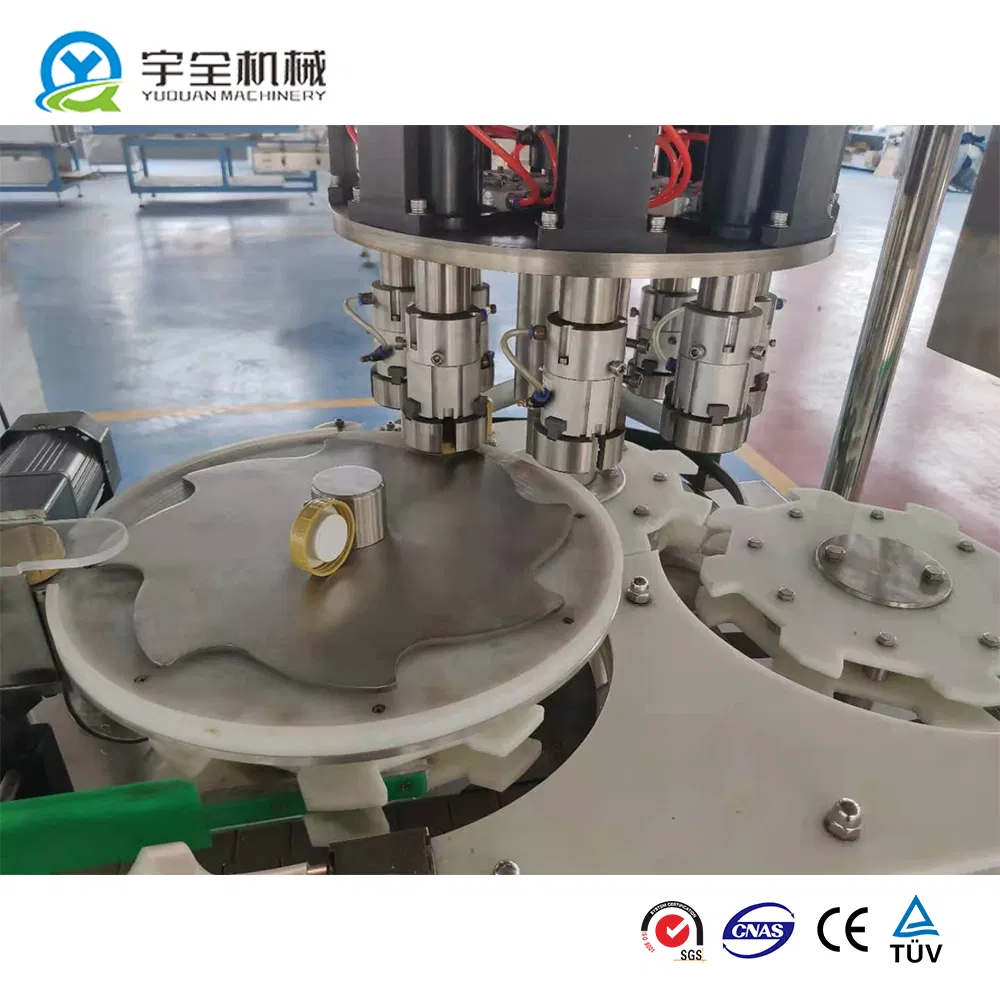

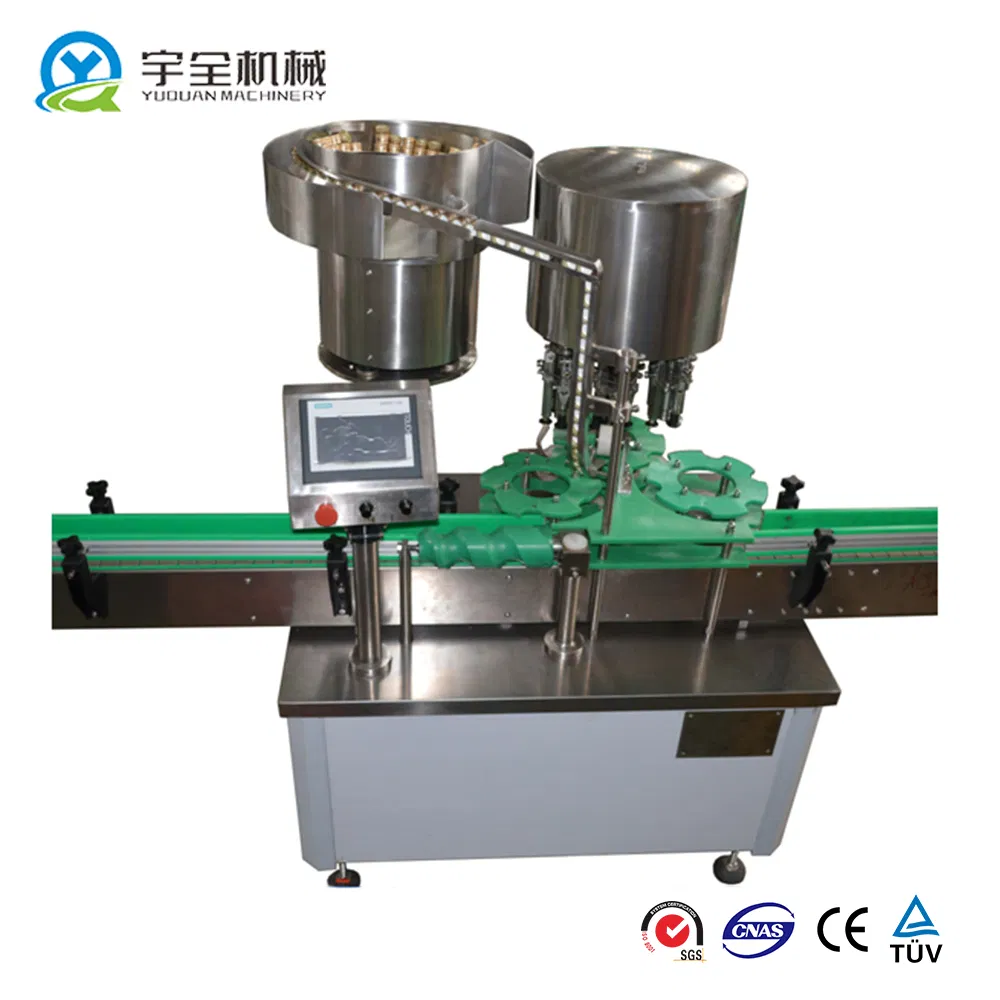

XGJ6 Six Head Screw Capping Machine

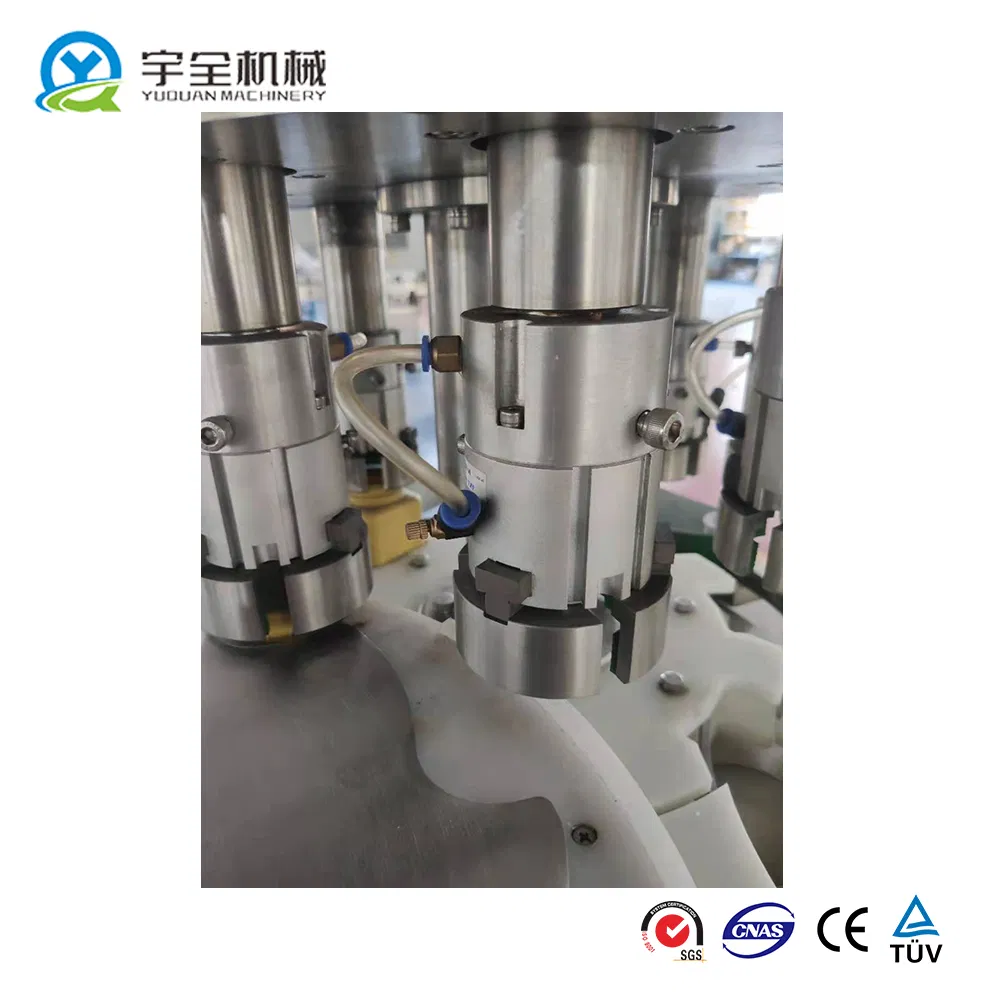

1) IntroductionThe machine is suitable for the capping of the large diameter lid, the planetary structure, the six screw cap; screw sub-bottle, the synchronization is good; The lifting type cover mechanism, the noise is small; The pneumatic cap cover structure, the performance is stable; Torque capping, cover the appearance will not be destroyed, and the size of the rotary force adjustable. The machine is easy to maintain, adaptable, can achieve a multi-purpose machine.
2) Main Technical ParametersSimple structure, easy maintenance, excellent performance.
4) Main Configuration| No. | Name | Type or Material | Supplier |
|---|---|---|---|
| 1 | Touch screen | GT1055-QSBD-C | Taiwan Delta |
| 2 | PLC | FX2NC-16MT | Taiwan Delta |
| 3 | Frequency converter | S310-201-H1BCD75 | Taiwan Delta |
| 4 | Fiber Amplifier | XW2Z-200P | Korea Autonics |
| 5 | Gear reducer motor | 6IK120GU-AF | JINWEIDA |
| 6 | Electrical components | - | France Schneider |
| 7 | Equal divider | nylon | China |
| 8 | Conveyor belt | components | China |
| 9 | Lift type cover machine | components | China |
| 10 | Cover system | components | China |

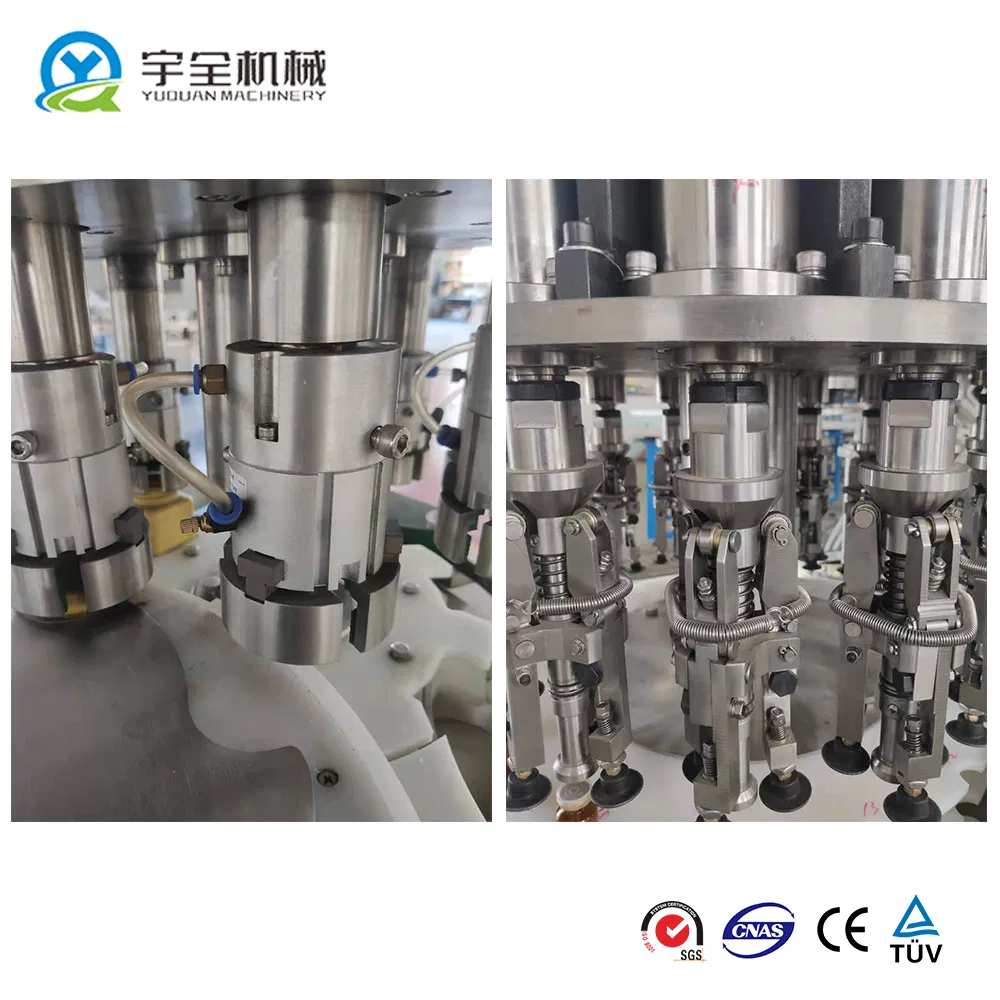

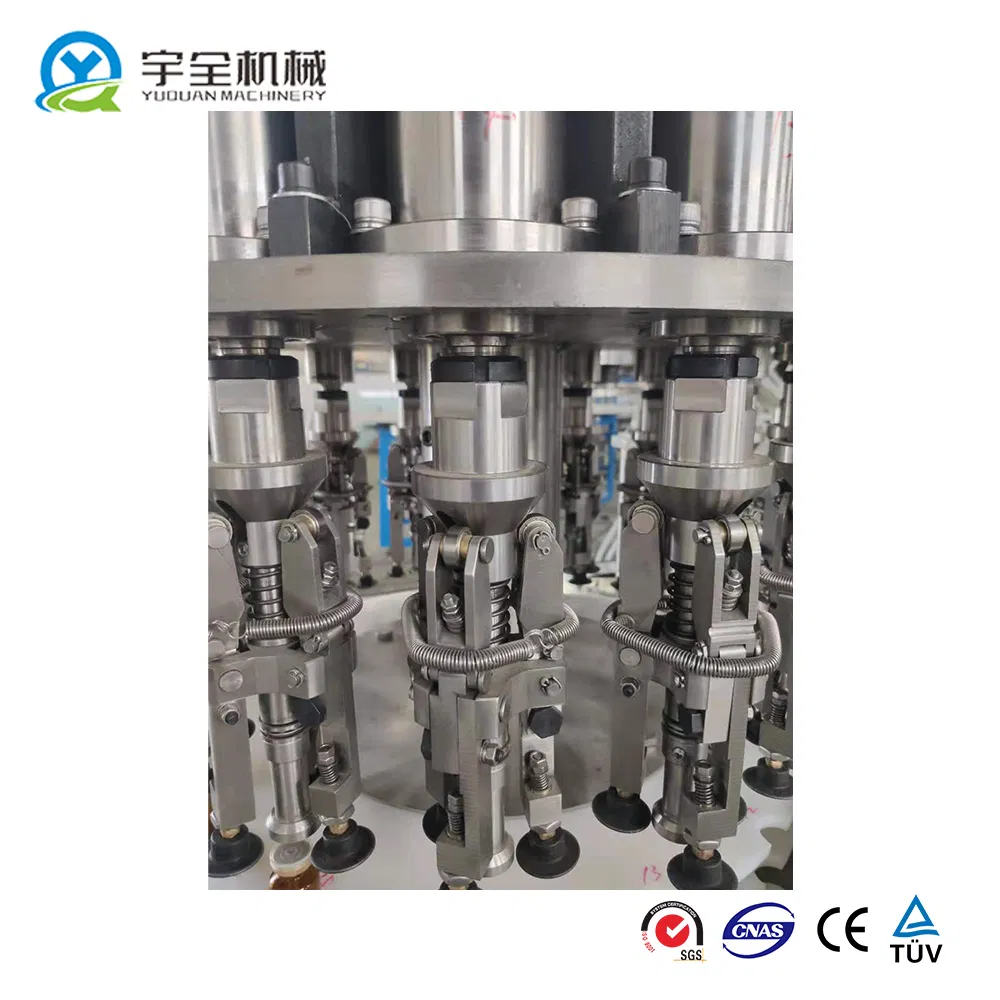

| 11 | Capping system | components | China |
| 12 | Drive mechanism | components | China |
| 13 | Side panels, panel | components (304 #) | China |
| 14 | Rack, table | assembly (A3) | China |
Outboard: 304 # stainless steel
Parts in contact with the bottle: 304 # stainless steel and some nylon 1010 #
Frequency control, PLC control, touch screen operation, no bottle no cover.
