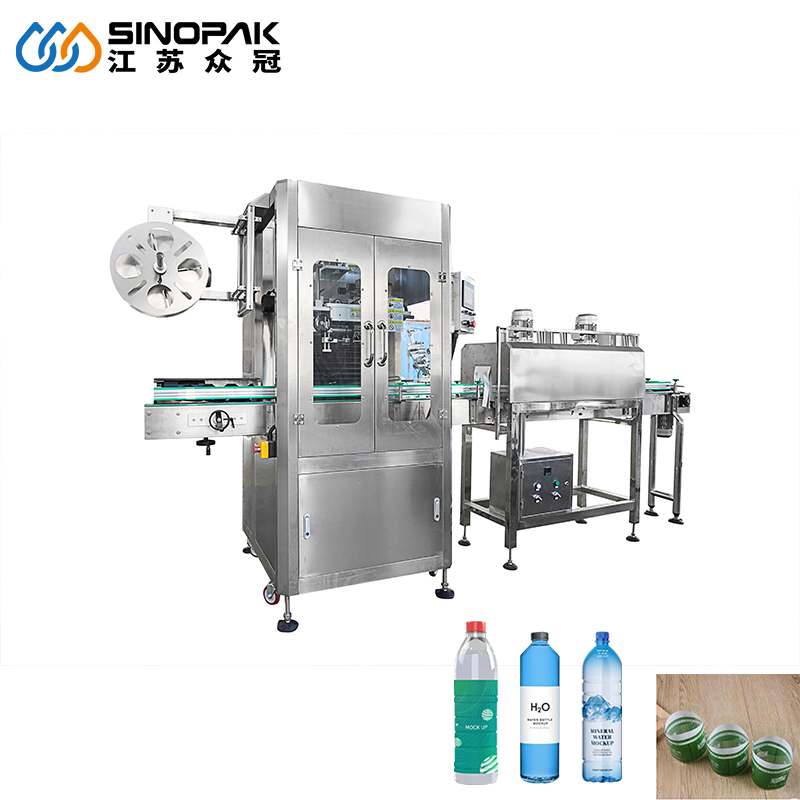

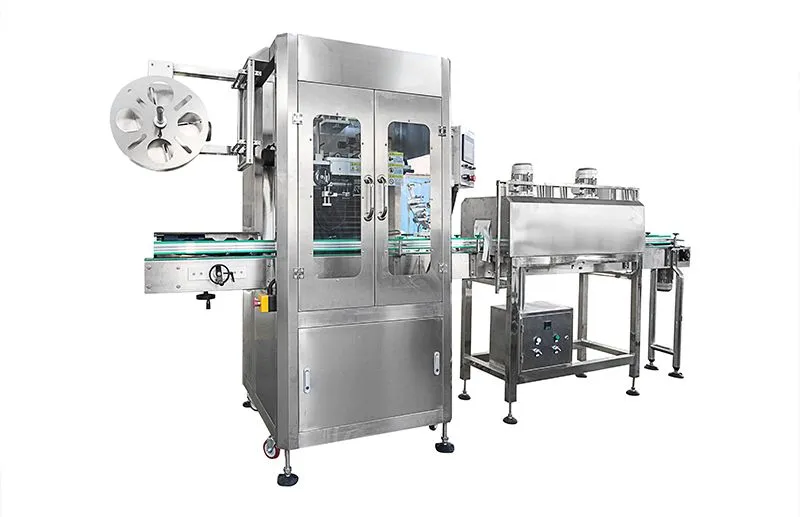

| Model NO. | PM-150 | Application | Food, Beverage, Medical, Chemical, etc. |
|---|---|---|---|
| Automatic Grade | Automatic | Driven Type | Electric |

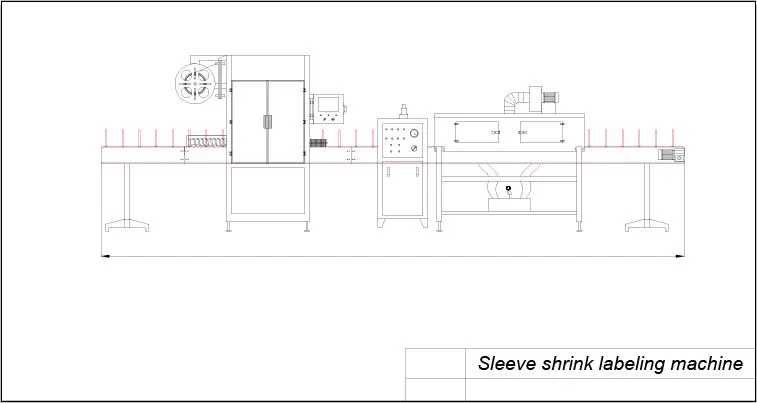

| Type | PE Shrink Film Machine | Heating Mode | Electric, Steam |
| Certification | CE, ISO, SGS, TUV | Production Capacity | 2000-30000bph |
| Specification | 2100mm* 850mm*2000mm | HS Code | 8422301090 |
| No. | Item | Technical Data |
|---|---|---|
| 1 | Import Power | 3.0KW |
| 2 | Import Voltage | 3-Phase, 380/220 VAC |
| 3 | Capacity | 150 bottles per min |
| 4 | Host Machine Dimension | L2100 × W850 × H2000 mm |
| 5 | Applicable Diameter | φ28 mm ~ φ120 mm |
| 6 | Label Length | 30~250 mm |
| 7 | Label Thickness | 0.03~0.13 mm |
Suitable for various bottle geometries including round, square, flat, curved, and cup-shaped containers.

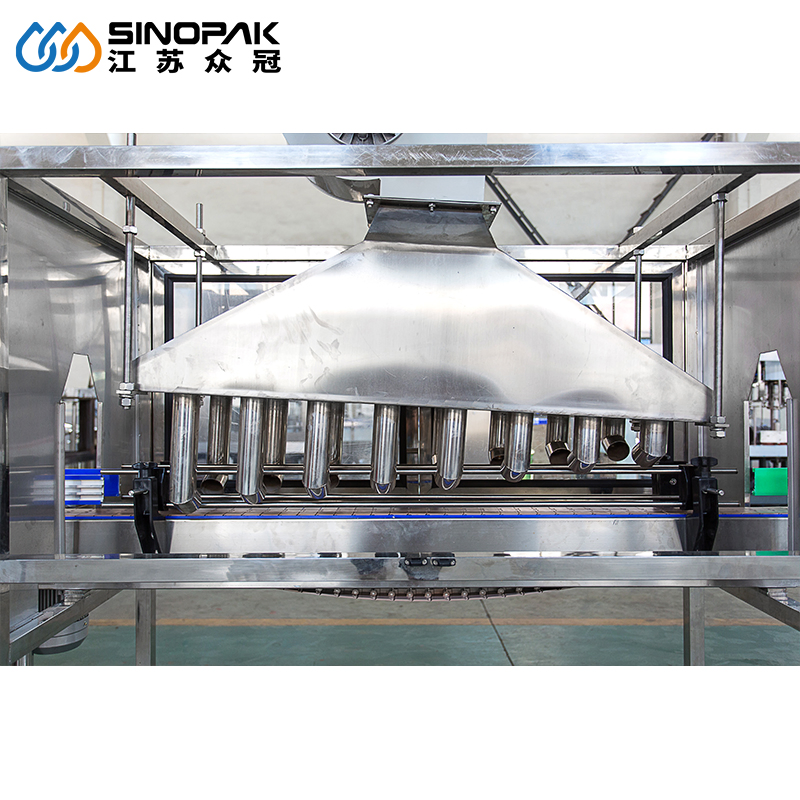

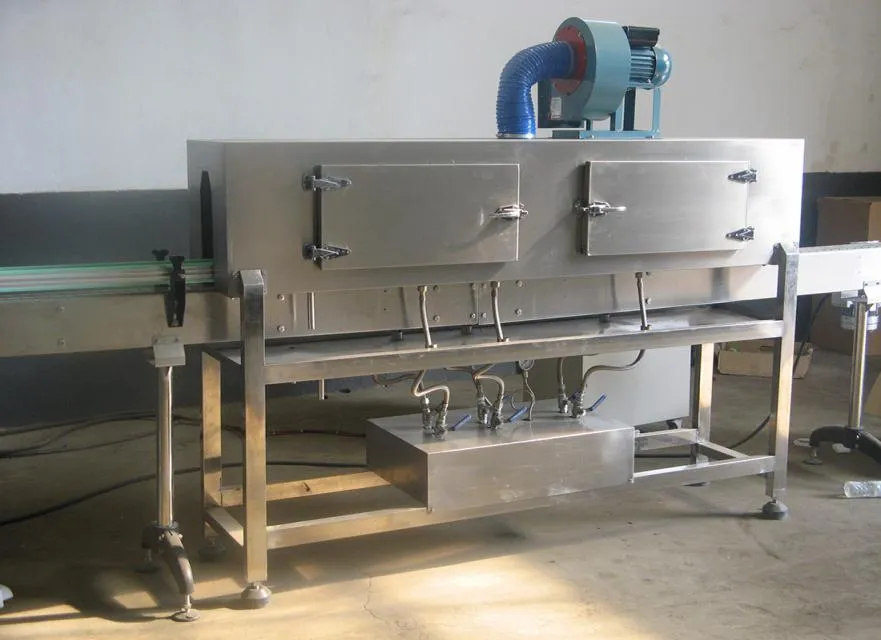

The PM-1800 Steam Heating Shrink Tunnel is designed for irregular bottle types. It utilizes a low-pressure seamless tube distribution system for smooth steam delivery. The adjustable three-segment steam nozzles ensure a perfect shrinking effect while maintaining high energy efficiency.
| Item | Technical Data |
|---|---|
| Blower Voltage | 1-Phase, 220 VAC |
| Steam Generator Voltage | 380V / 50 Hz |
| Working Pressure | ≤ 0.1 Mpa |
| Tunnel Dimensions | L1800mm × W400mm × H450mm |
| Weight | 150Kg |

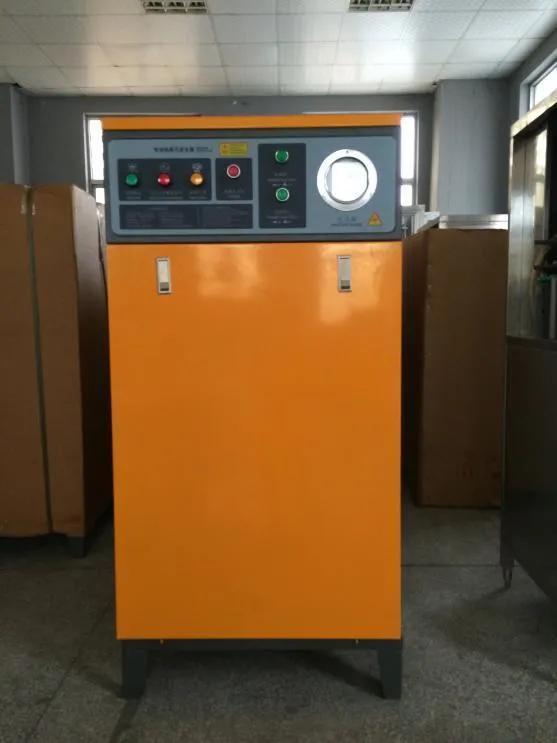

Water is fed via a high-pressure potential vortex pump. The system features automatic liquid level control and full automation. Continuous steam output is achieved within approximately 5 minutes of startup.

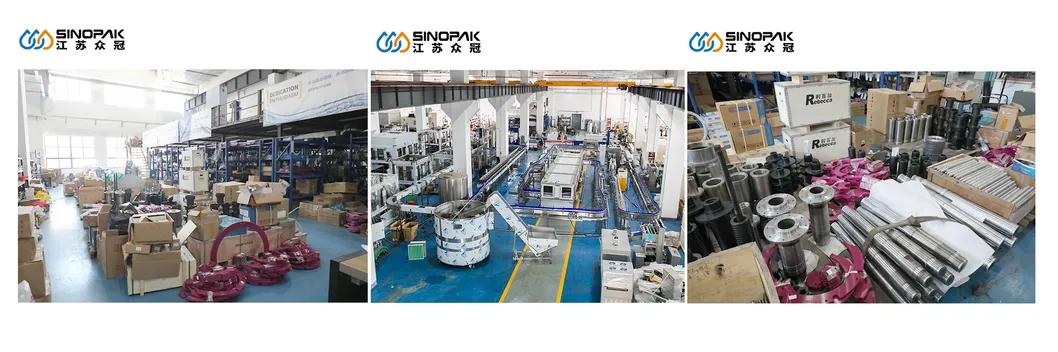

Dedicated to manufacturing professional filling and packaging equipment, including water treatment systems and beverage production lines. Our facility spans over 8000 square meters of modern standard workshops, focusing on high-class packaging solutions and efficient equipment operation mode to improve market competitiveness.
