Automatic Multi-Head Paste Catsup Tomato Sauce Filling Machine

Customization:	Available
After-sales Service:	Online Video or on-Site Service
Warranty:	One Year

Send Inquiry

Product Description

Basic Product Information

Model NO.	DXD-BJ680
Type	Piston Pump
Automatic Grade	Fully Automatic
Material Type	Paste
Filling Valve Head	Multi-Head
Feed Cylinder Structure	Multi-Room Feeding
Packaging Container Lifting Structure	Pneumatic Lifting
Packaging	Bag / Stick Sealing Bag
Packaging Material	Composite Materials (PET/AL/PE, PET/PE, etc.)
Certification	CE; SGS
Contact Material	316 Stainless Steel
Packing Material	Sauce; Cream; Paste
Origin	China
HS Code	8422303090
Production Capacity	1000 set/Year

Product Description

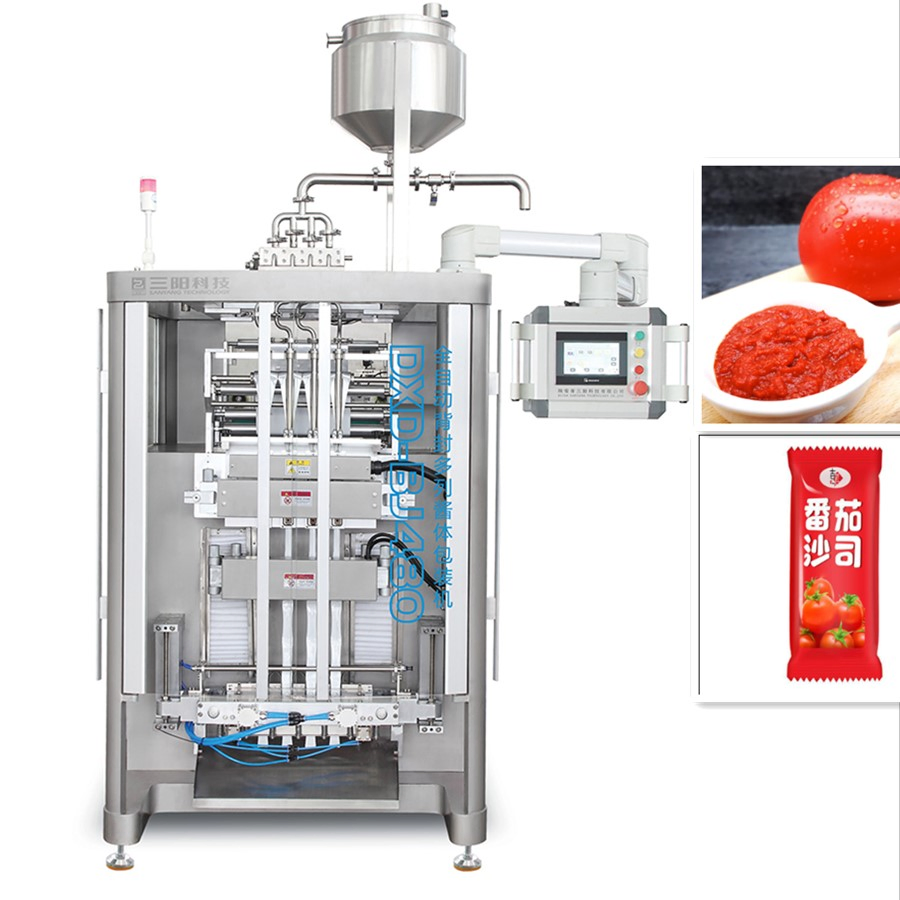

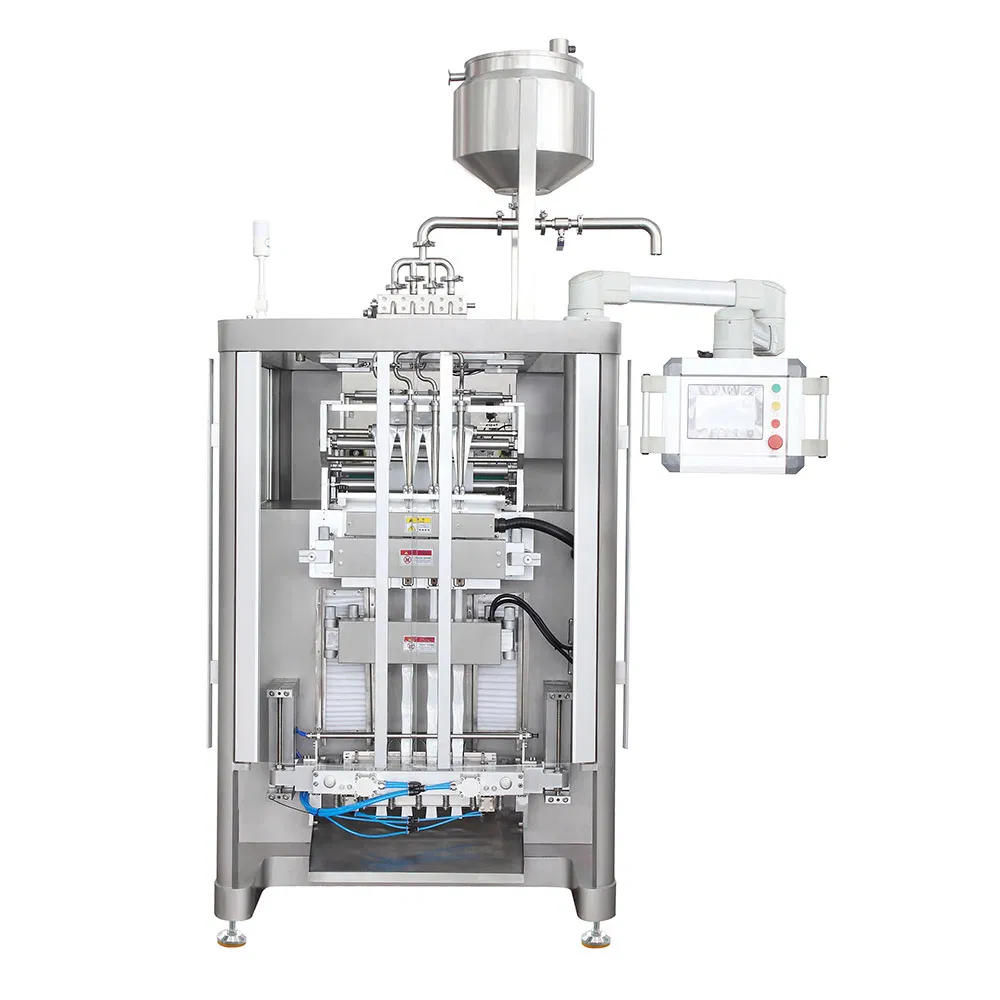

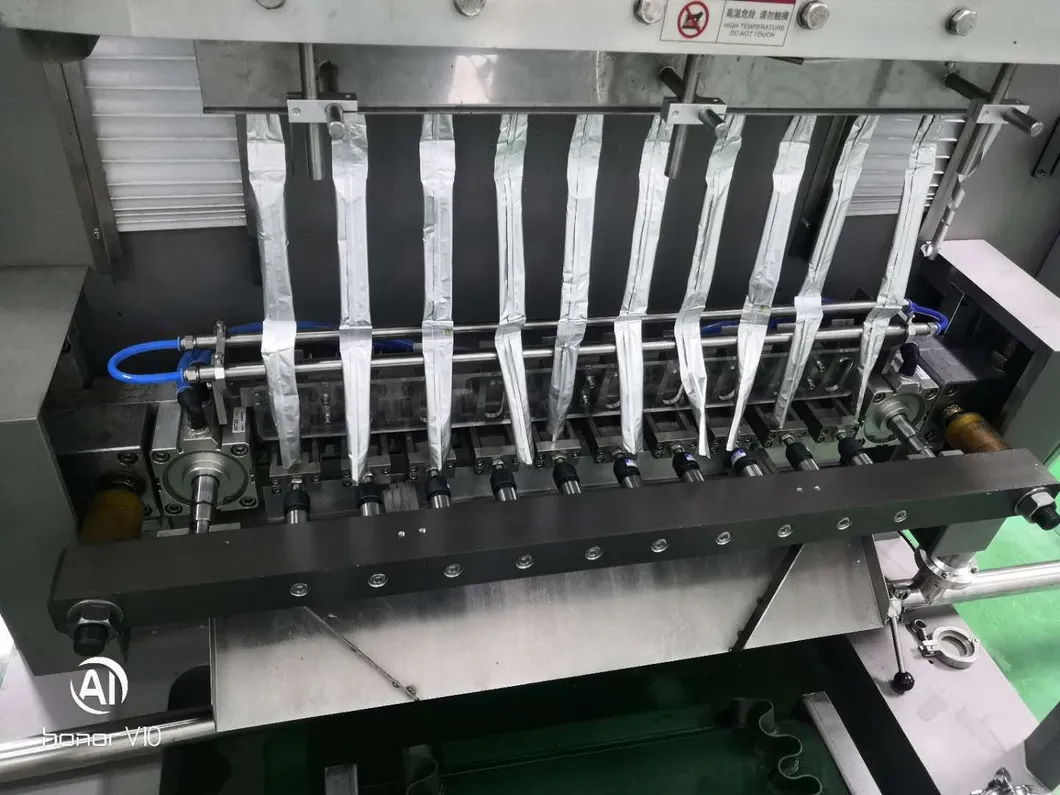

DXD-BJ680 Paste Back Sealing & Multi-line Packing Machine

Key Characteristics

Advanced performance, high strength, low noise, and stable operation for long service life.
Full PLC control with servo tracking synchronous linkage for highly automated operation.
One-stop solution: completes longitudinal cutting, sealing, filling, printing, and bag output at once.
Combination sealing knife ensures tight sealing with high packing speed and delicate pouch appearance.
Quick adjustment of bag length and sealing parameters through the man-machine interface.
High precision filling measurement via piston pump control.
Photoelectric tracking system ensures automatic calibration and counting functions.
Strong adaptability to various materials like PET/AL/PE, PET/PE, NY/AL/PE, etc.
Customizable options: choice of cutting styles (dashed, serrated) and ink wheel printers.

Usage & Application

This model is specifically designed to pack liquid and paste materials across various industries:

Pharmacy Industry: Cough syrup and other medicinal pastes.
Food Industry: Tomato sauce, honey, cream, and condiments.
Daily Chemical: Shampoo, lotions, and other viscous liquids.

Main Technological Parameters

Specification	Detail
Lanes Number	6 Lanes
Packing Speed	20-30 bags/min/lane
Filling Capacity	1-50 gram/bag
Bag Size	L: 40-180mm \| W: 24-40mm
Max Film Width	680mm
Sealing Type	Back sealing stick type bag
Power Supply	380V 50HZ 3P 4W
Power Consumption	8.8KW
Air Consumption	0.8MPA 0.8m³/min
Weight	2200KG
Dimensions	1600 x 1200 x 2500 mm

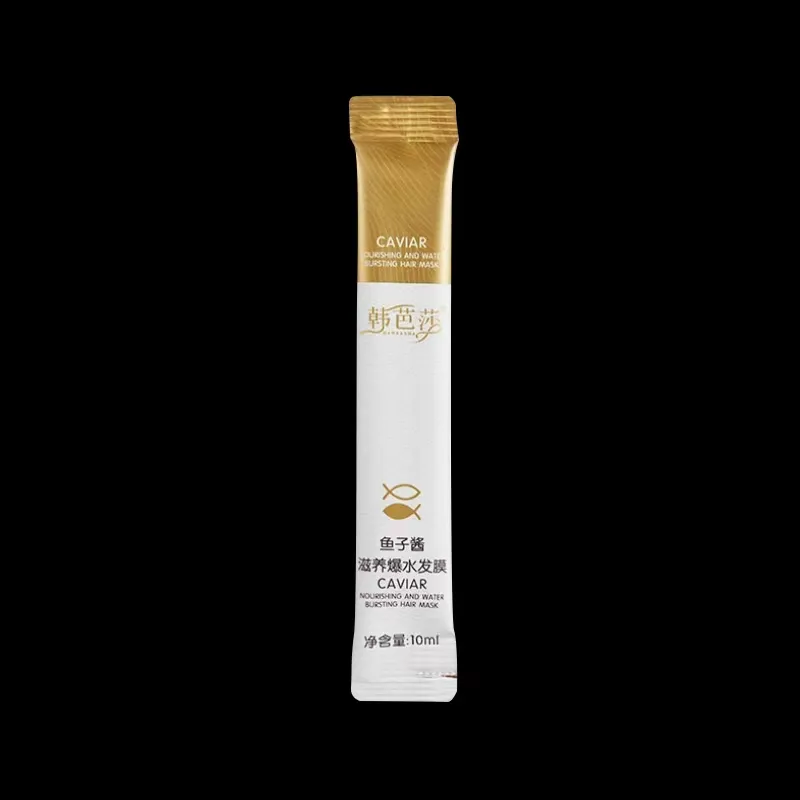

Sample Photos

Enterprise Overview

The enterprise is a national high-tech entity and a member of the pharmaceutical equipment industry association. We have passed ISO9001 quality management system certification and EU CE product safety certification. As a leading manufacturer, we pursue the integration of technology and production to provide high-quality pharmaceutical and food machinery.

Our filling and packaging machinery series are suitable for tablets, capsules, viscous liquids, granules, and powders. With a global sales network covering Asia, Africa, and Europe, we provide reliable solutions to international standards.

Frequently Asked Questions

1. What materials can the DXD-BJ680 machine pack?

The machine is designed for viscous and liquid materials such as tomato sauce, honey, cream, shampoo, and medicinal syrups.

2. Is the bag length adjustable?

Yes, the bag length can be adjusted conveniently through the man-machine interface without the need to change the mold.

3. What kind of control system does the machine use?

The entire machine adopts a PLC control system with servo tracking synchronous linkage for high precision and automatic operation.

4. What is the warranty period for the machinery?

We provide a one-year warranty starting from the date the customer receives the machine. During this period, damaged parts (excluding man-made damage) will be replaced.

5. How is the machine installation handled?

Customers can send technicians to our facility for free training, or we can dispatch engineers abroad to adjust the machines and train your staff.

6. What should I do if the machine does not work appropriately?

Basic solutions are provided in the manual. For further assistance, our after-sales department is available via email or phone and will respond within 24 hours.
