Quality Linear Automatic Liquid Oil Cream Shampoo Bottle Filling Capping Machine

1 / 5

Quality Linear Automatic Liquid Oil Cream Shampoo Bottle Filling Capping Machine

Customization:	Available
After-sales Service:	Lifelong Span
Warranty:	1-Year Free

Send Inquiry

Product Description

Basic Information

Type:Volumetric Filling Machine

Automatic Grade:Automatic

Material Type:Liquid

Filling Valve Head:Multi-Head

Dosing Device:Plunger

Filling Principle:Atmospheric Pressure

Structure:Linear

Filling Scope:100-5000ml

Capacity:1000-2500bph

Suitable Material:Liquid, Gel, Cream, Foamy Liquid

Packaging & Delivery

Package Size:600.00cm * 120.00cm * 200.00cm

Package Gross Weight:800.000kg

Transport Package:Plywood Case

Product Description

Our linear automatic liquid oil cream shampoo bottle filling capping machine is suitable for various foamy or unfoamy liquid, viscous liquid & cream in foodstuffs, drinks, cosmetics, pharmaceuticals, and daily chemicals fields. It is widely used for liquid drinks, juice, vinegar, oil, syrup, cosmetic liquid, lotion, shampoo, face cream, hair cream, liquid cleaner, pharmaceutical liquid, disinfectant, pesticide, and other liquid cleaners. With humanized design, it's easy and quick to adjust for different sizes and bottles.

Our Advantages

Adopting servo piston for measuring, suitable for both liquids, gel & cream, with high filling precision and efficiency; plus servo filling nozzle system, especially good for foamy products.

Filling volume and speed adjusted directly via touch screen, with formula saving for easy operation.

Humanized design with quick-joint connected piston cylinders and nozzles for easy dismantling, washing, and maintenance.

Linear bottle-enter-exit system allows for quick adjustment across different bottle production lines.

PLC control system with touch screen; features include no filling without bottles, auto counting, and one-button washing.

Continuous capping with fast speed; auto cap feeding can be equipped based on specific needs.

Detailed Photos

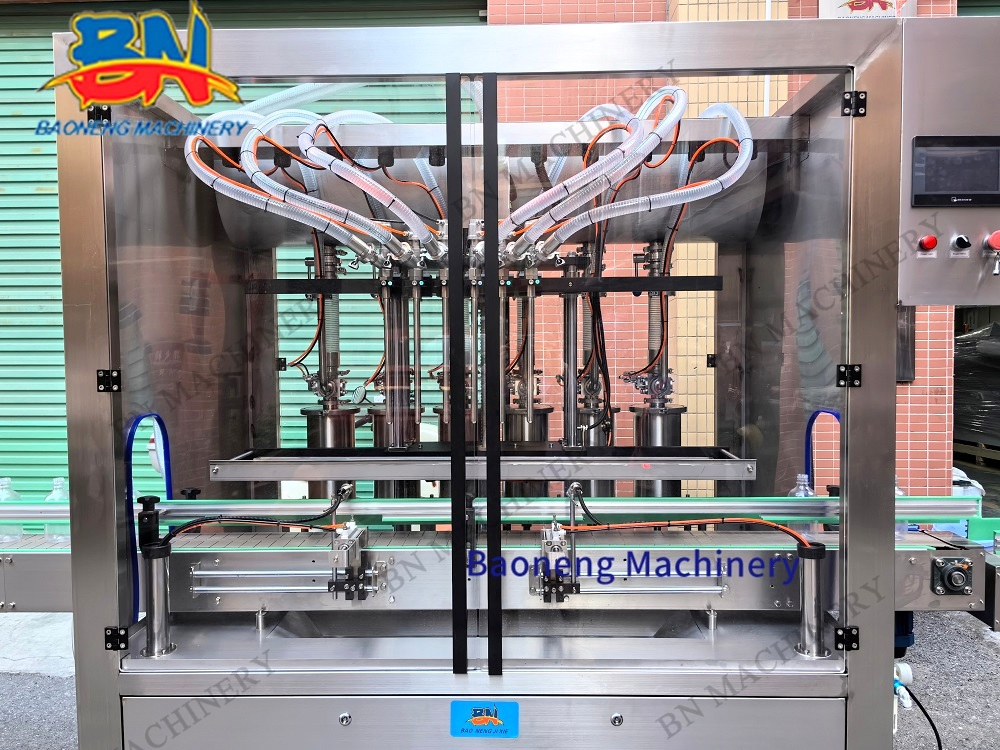

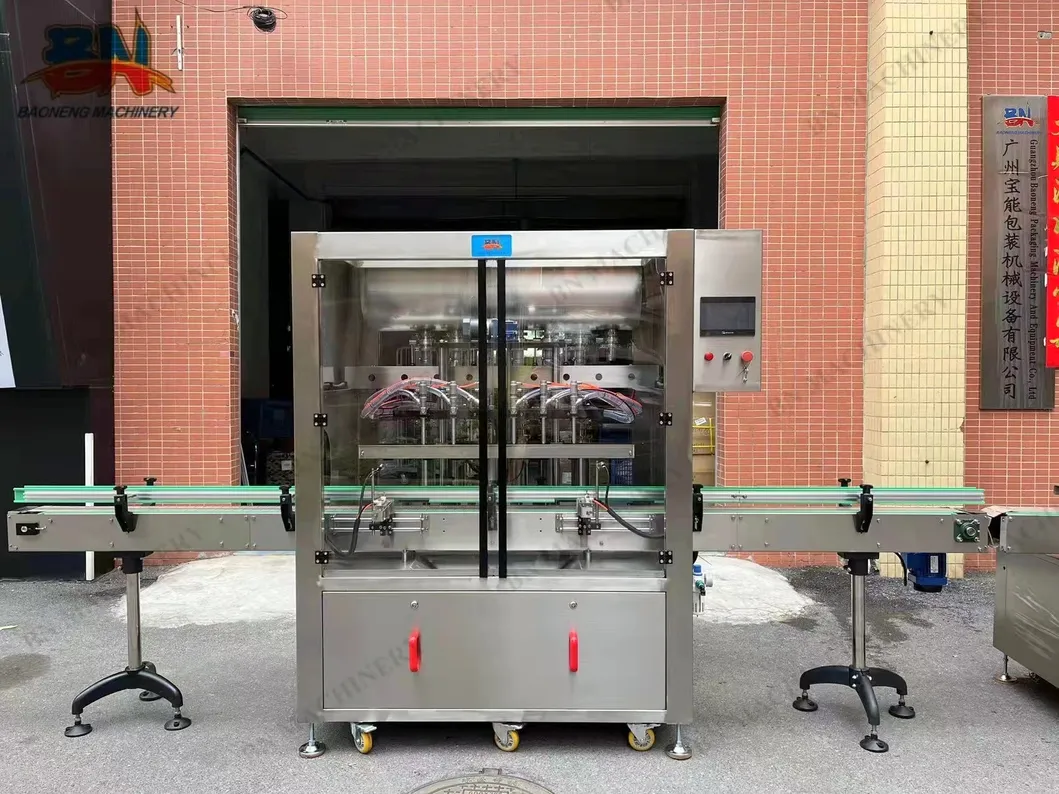

Auto 8-nozzle servo piston filling machine with hood

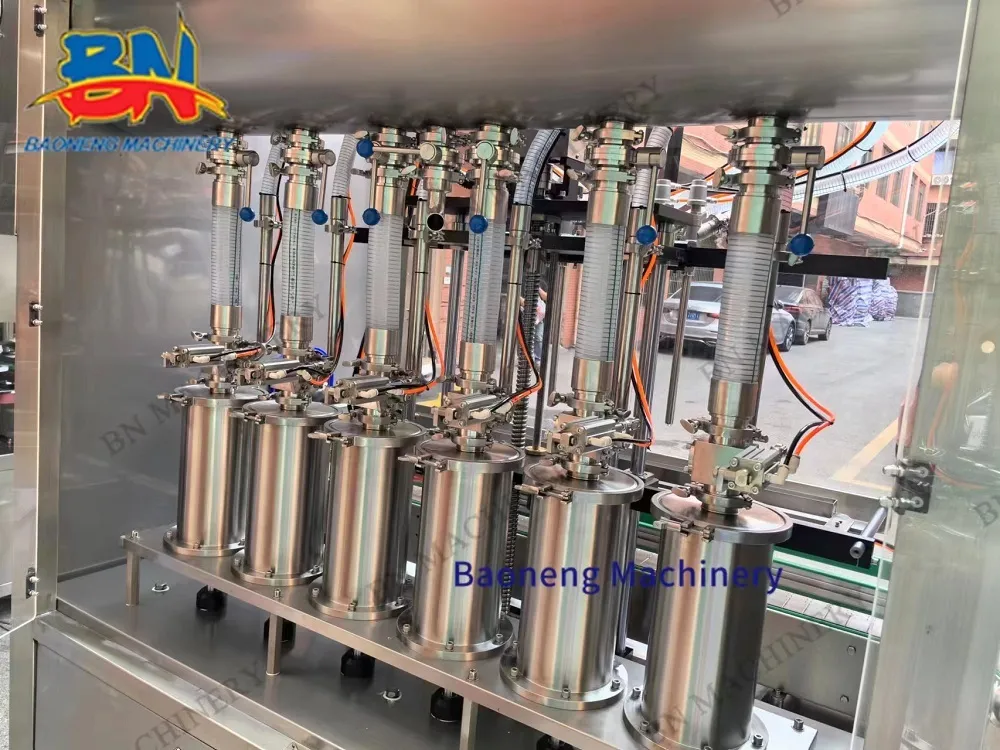

Servo diving filling nozzles

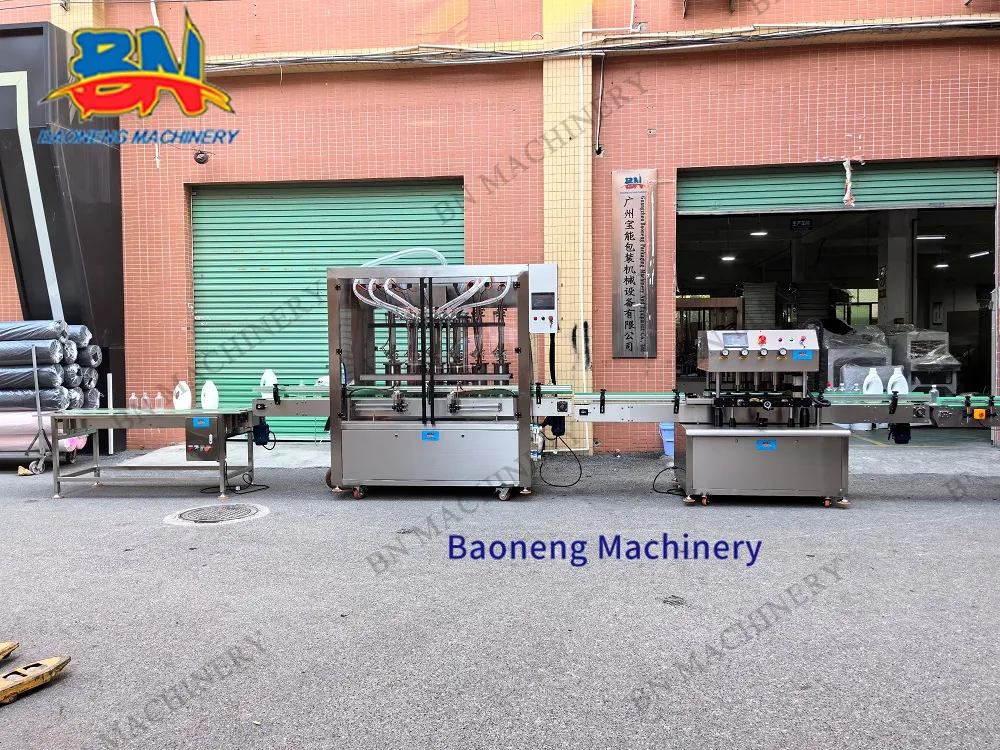

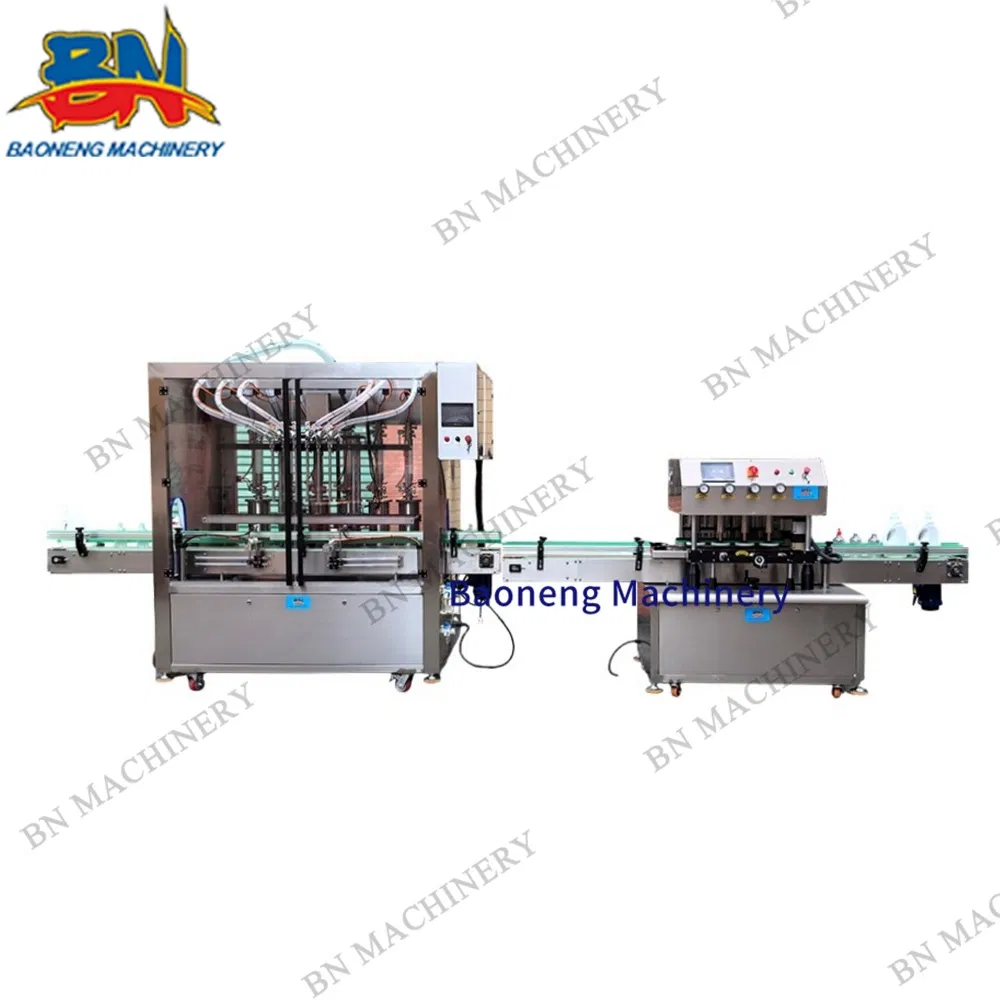

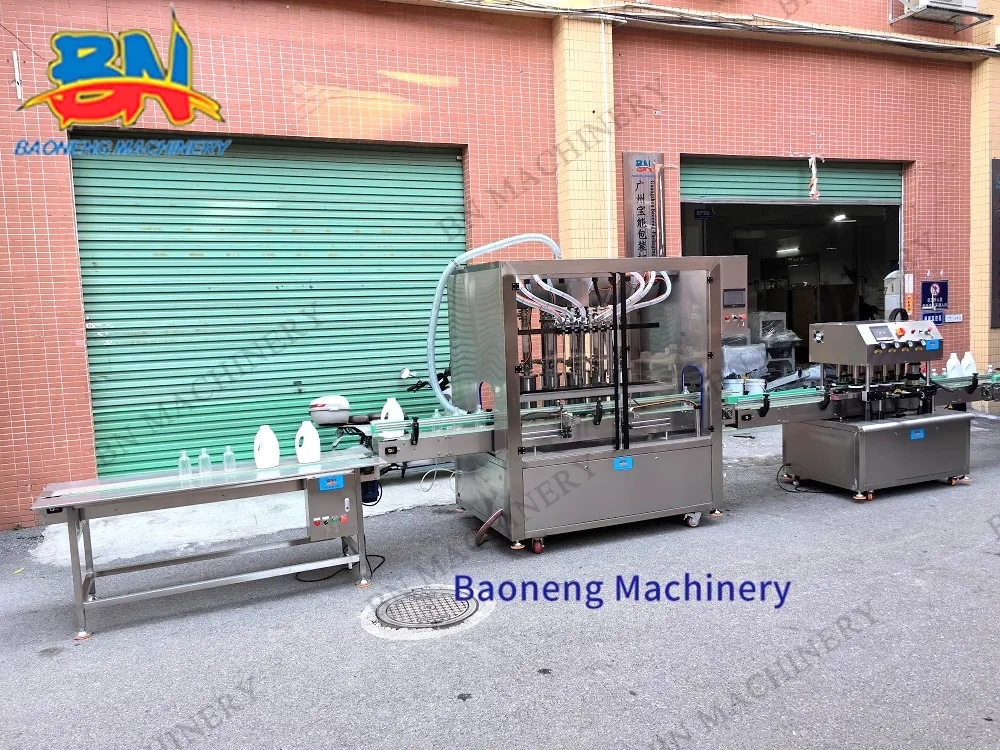

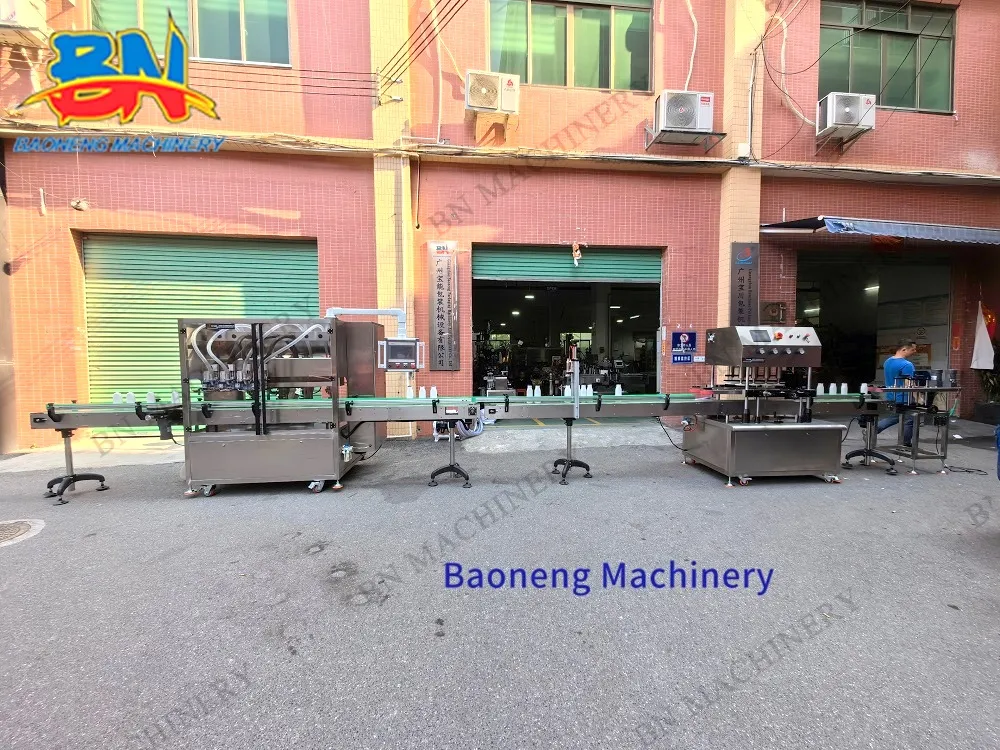

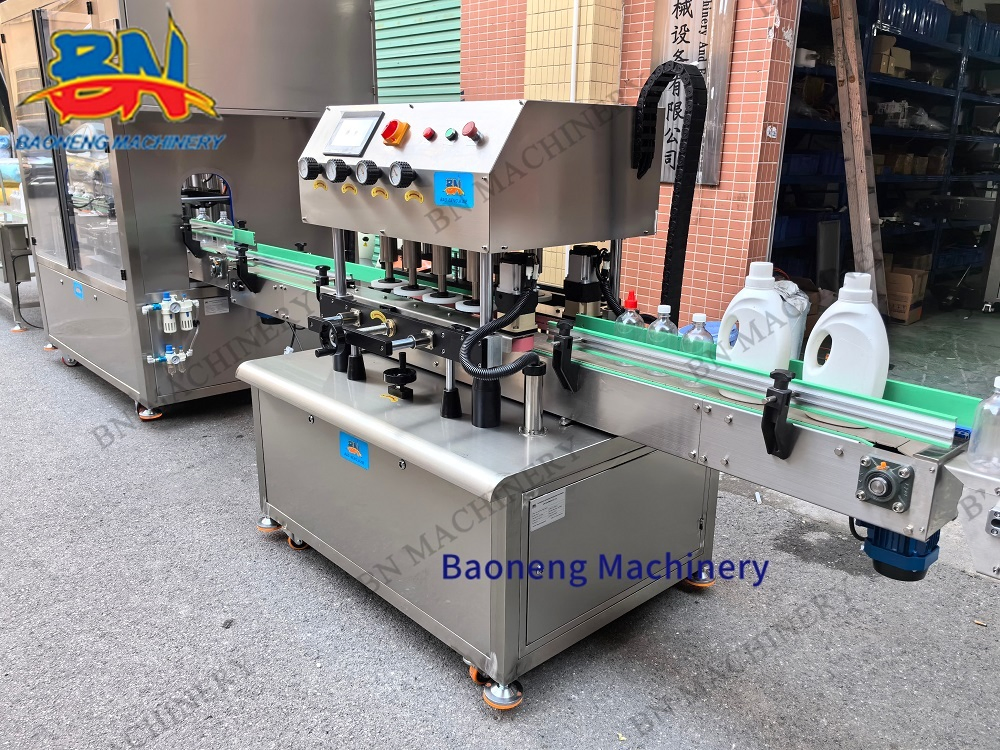

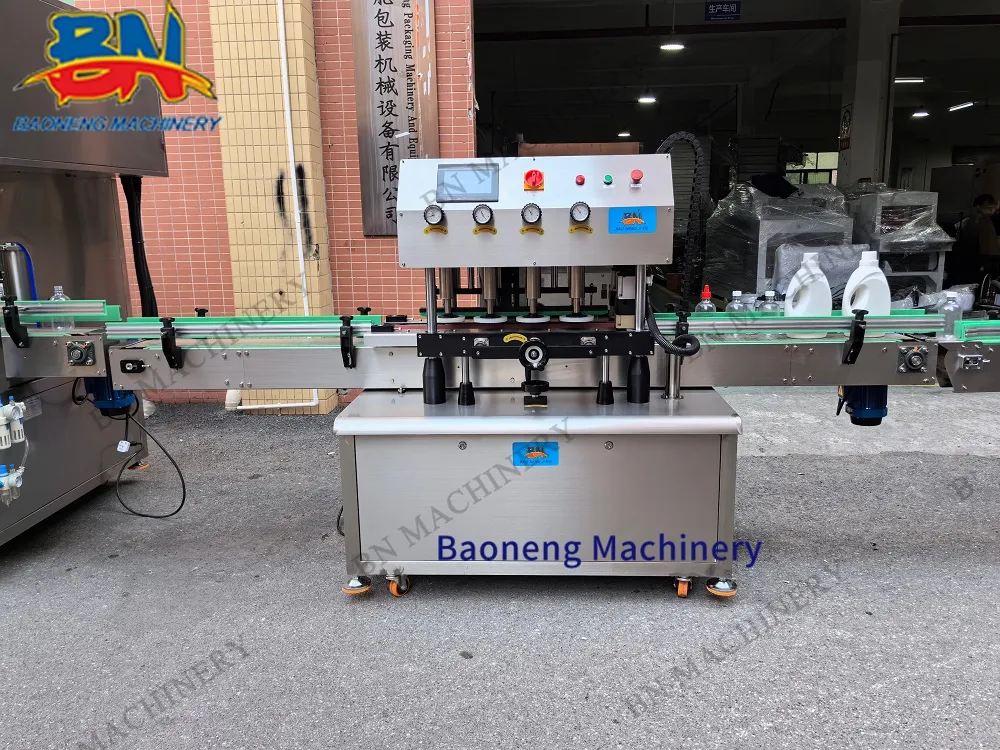

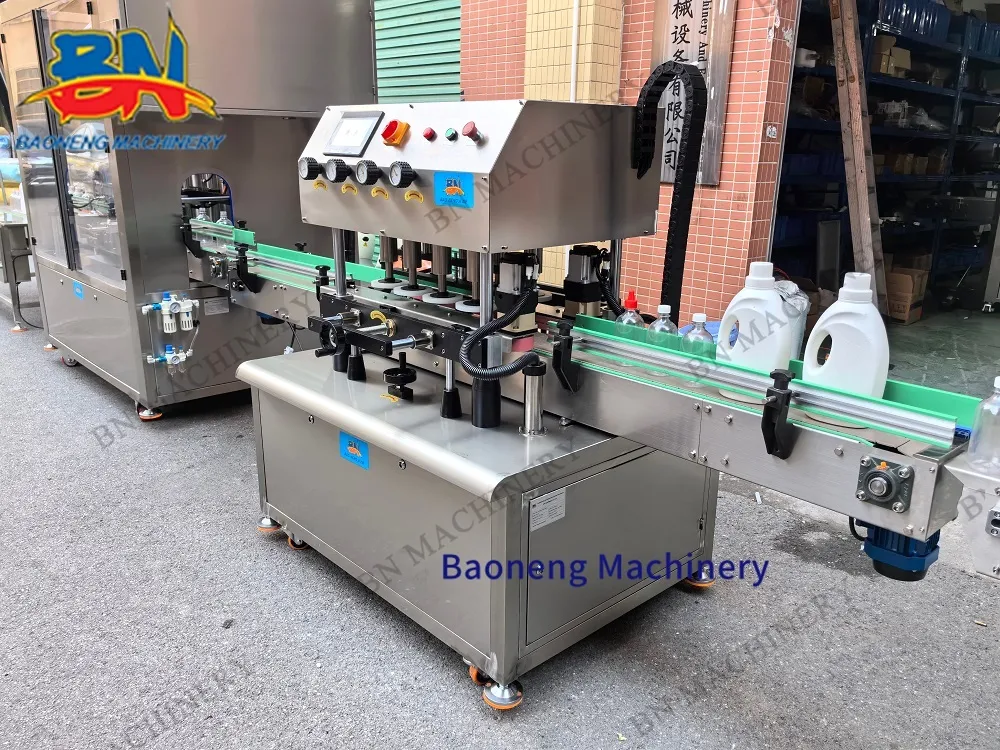

Linear bottle filling capping machines

Product Parameters

Item	ALF-S4	ALF-S6	ALF-S8	ALF-S12	ALF-DS10
Filling Nozzle	4	6	8	12	10 (dual-lane)
Filling Scope	100-5000ml (customized)
Ideal Range	10-100ml / 50-250ml / 100-500ml / 100-1000ml / 500-2500ml / 1000-5000ml
Capacity (100ml)	30-50 BPM	50-70 BPM	60-80 BPM	80-100 BPM	120-140 BPM
Precision	≤±1%
Power	2kw	3kw	4.5kw	4.5kw	5kw
Air Pressure	0.4~0.6MPa
G.W.	400kg	500kg	800kg	1000kg	1200kg

Frequently Asked Questions

What types of liquids can this machine fill?

The machine is highly versatile and can handle foamy or unfoamy liquids, viscous liquids, gels, and creams, including products like shampoo, oil, juice, and liquid detergents.

Is the filling volume adjustable?

Yes, the filling volume and speed can be easily adjusted directly through the PLC touch screen interface. The system also allows for formula saving for quick switching between products.

How accurate is the filling process?

By adopting a servo piston measuring system, the machine achieves a high filling precision of ≤±1%.

Can the machine handle foamy products without spilling?

Yes, it features a servo diving nozzle system specifically designed to handle foamy products by filling from the bottom up to prevent overflow.

How difficult is it to clean and maintain?

The design is humanized for easy maintenance; piston cylinders and nozzles use quick-joint connections, making them easy to dismantle, wash, and reassemble.

What is the production capacity?

Depending on the number of nozzles (4 to 12) and the bottle size, the capacity ranges from 1000 to 2500 bottles per hour (BPH), with dual-lane models reaching even higher speeds.
