Product Specifications
Model: PM-DPM-A
Capacity: 50-200pcs/min
Application: Empty bag, unshaped box, etc.
Labeling position: Top surface

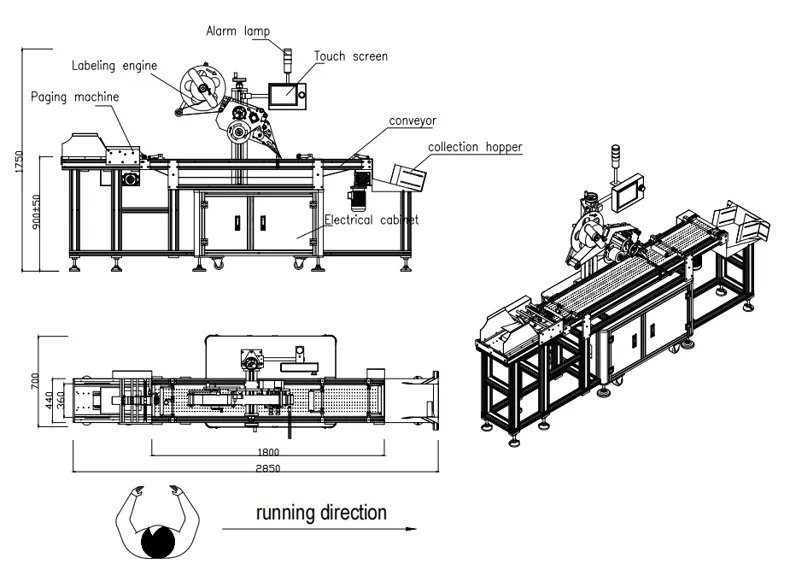

Machine size: 2300x1040x1335mm
Control system: Servo & German novexx optional
Voltage: 110V/220V/380V
🔄

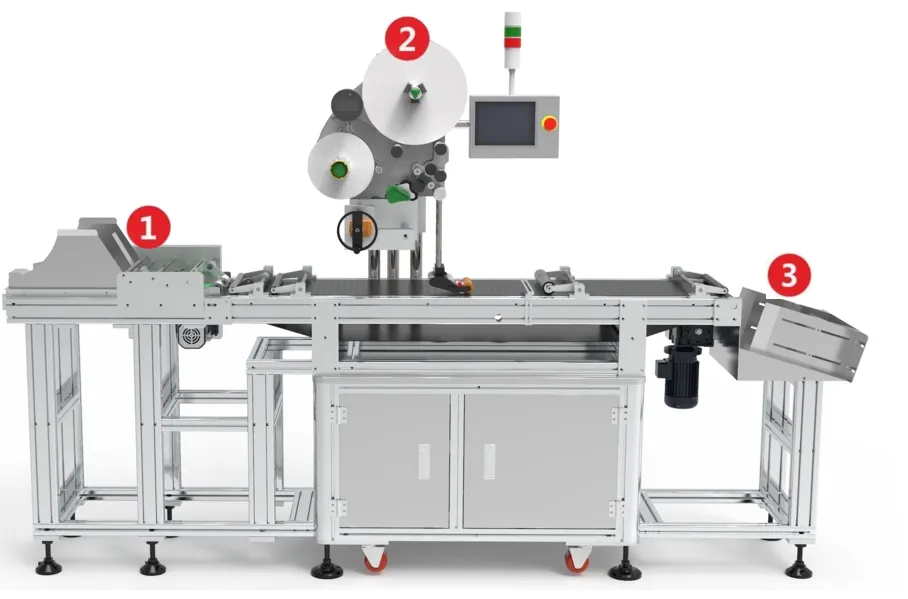

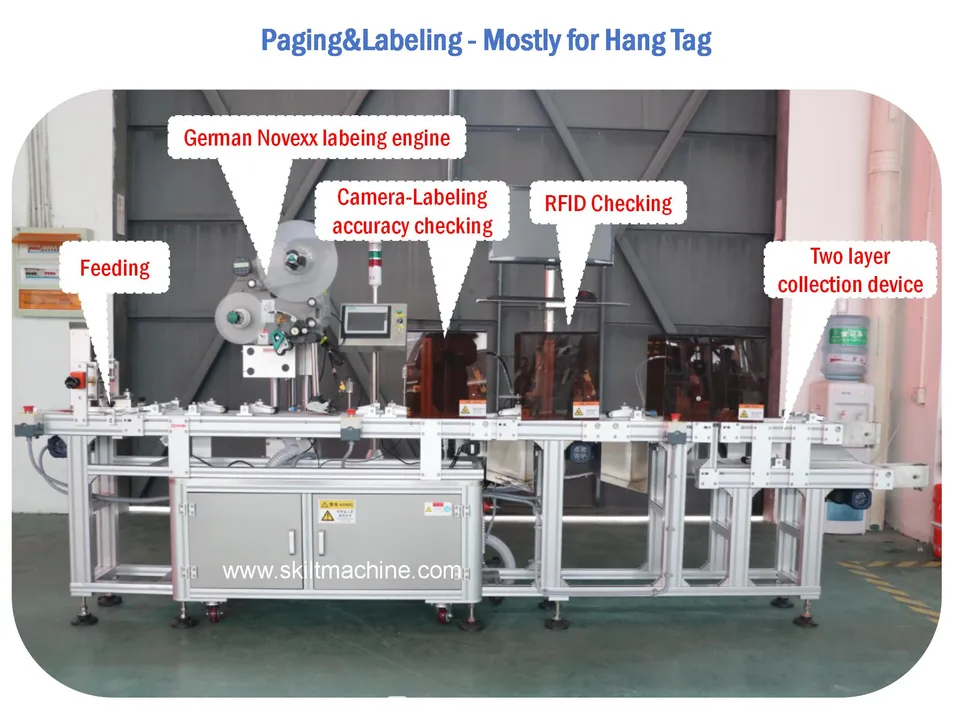

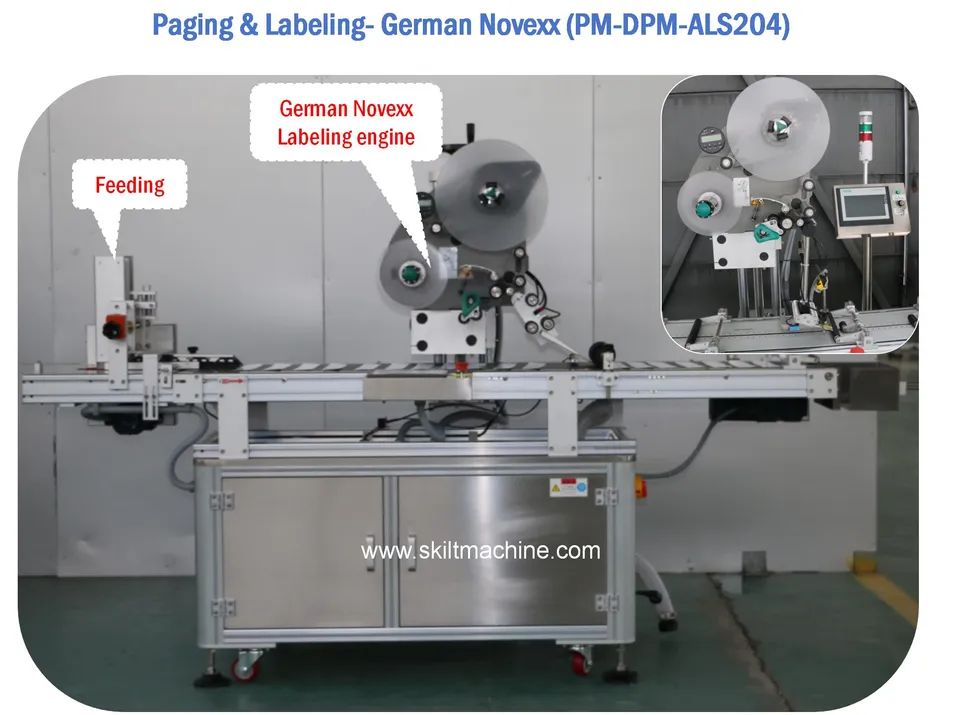

Paging & Labeling Process
-
1

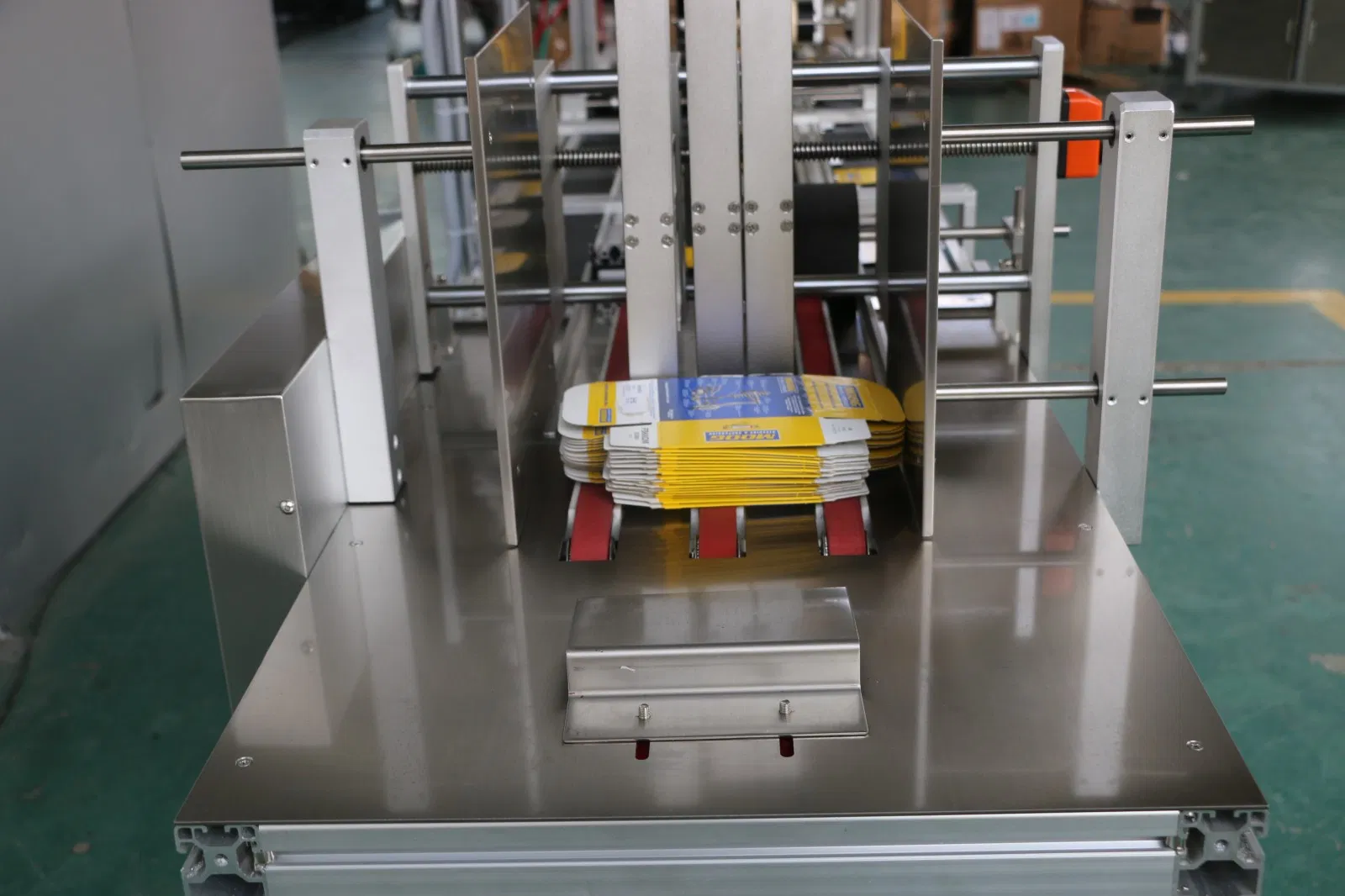

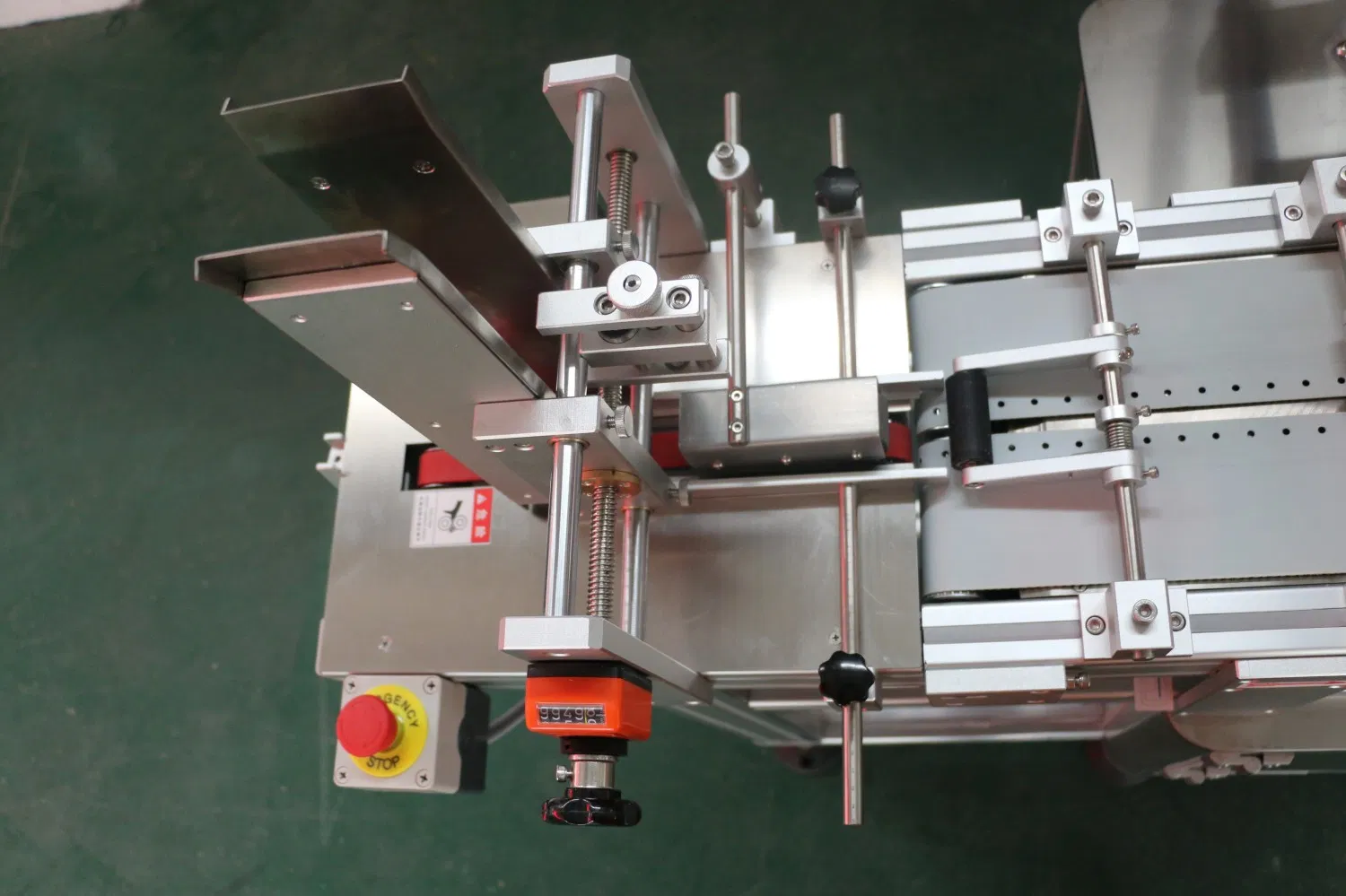

Feeding: Place bags into feeder, delivering to labeling engine individually.
-
2
Labeling: Sensor signals PLC, which processes and sends label to engine.
-
3
Collection: Choose from hopper, back-flow, or fish scale collection.
-
4
Inspection (Optional): Visual camera checks label position; unqualified tags are rejected. RFID detection checks chip readability.
🖼️

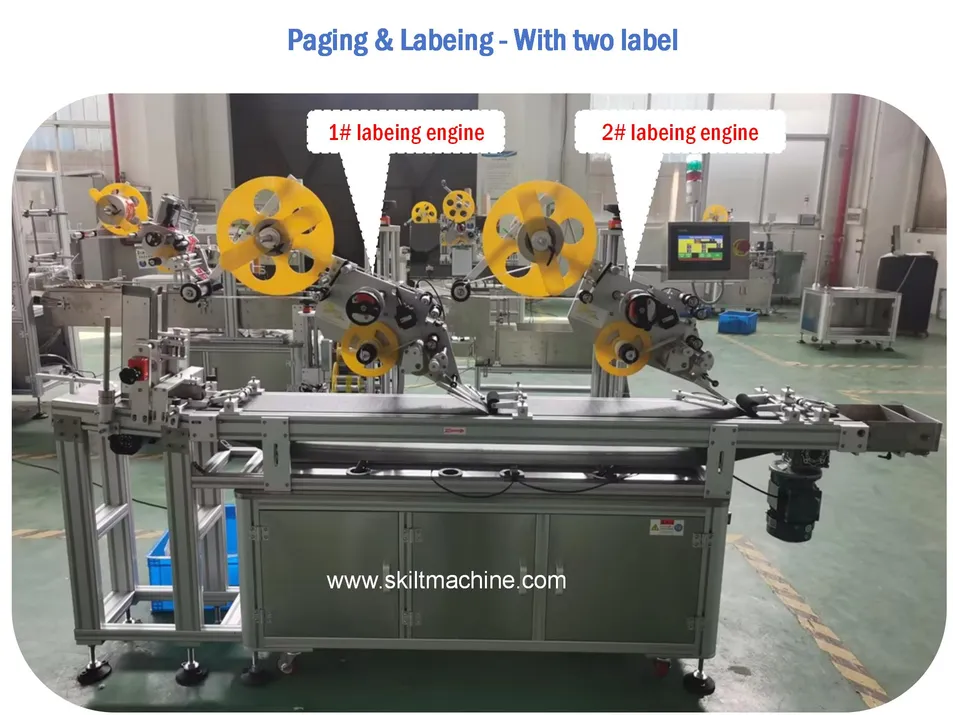

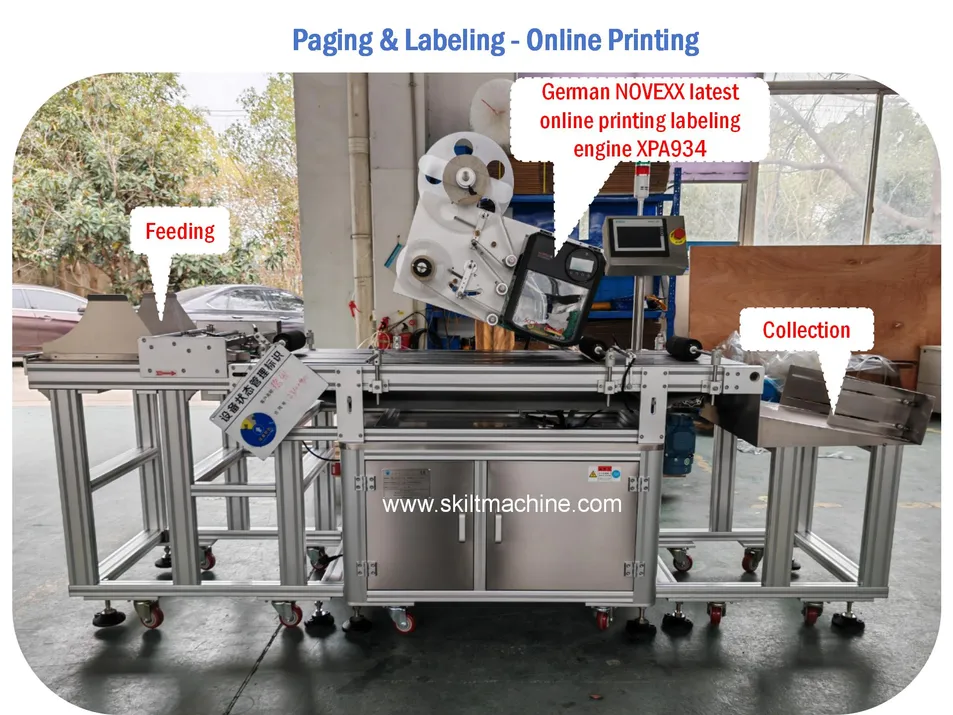

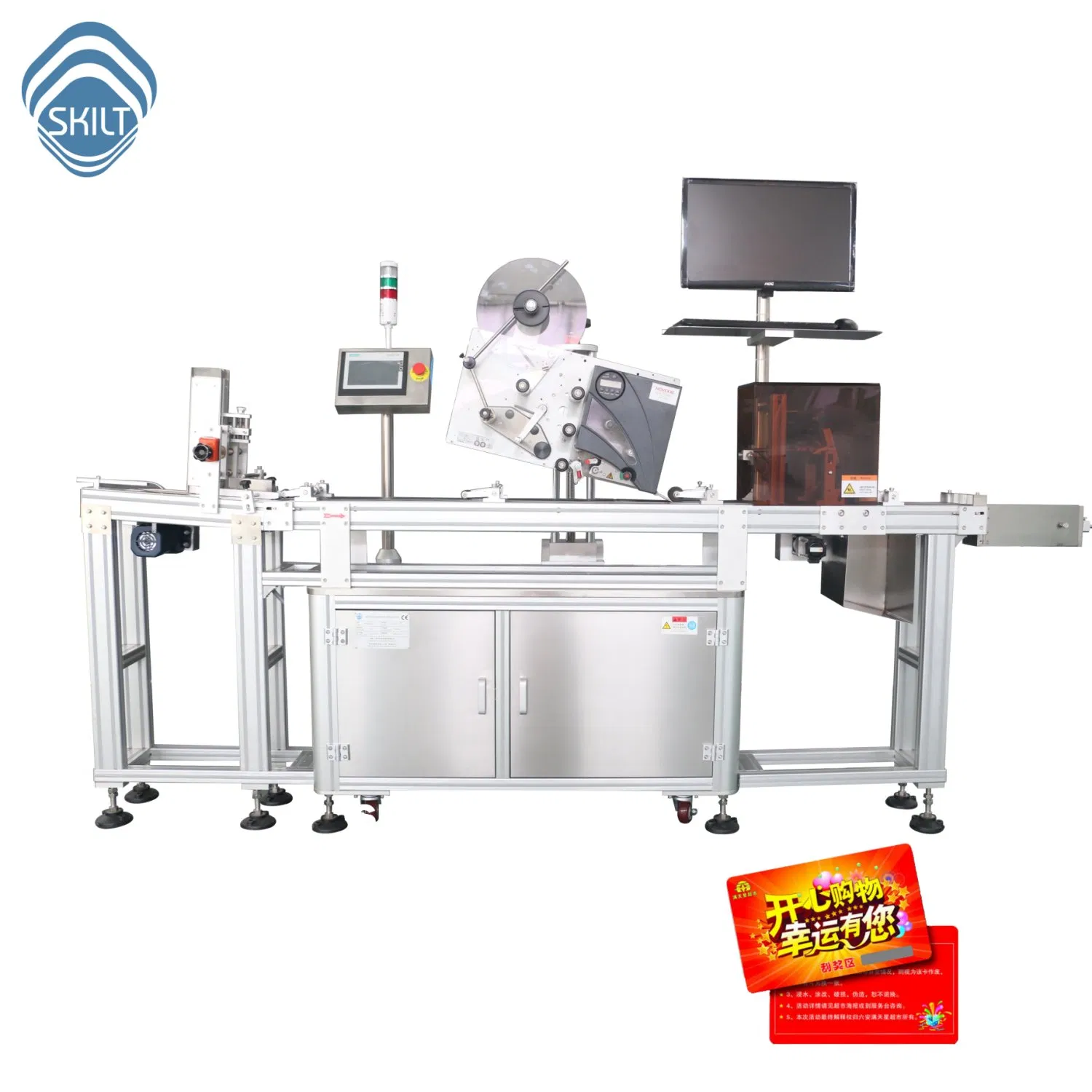

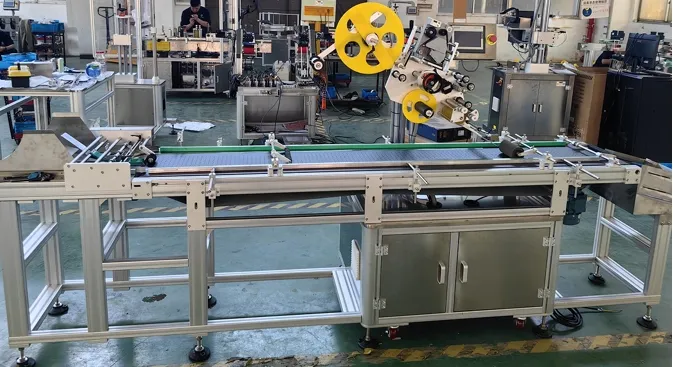

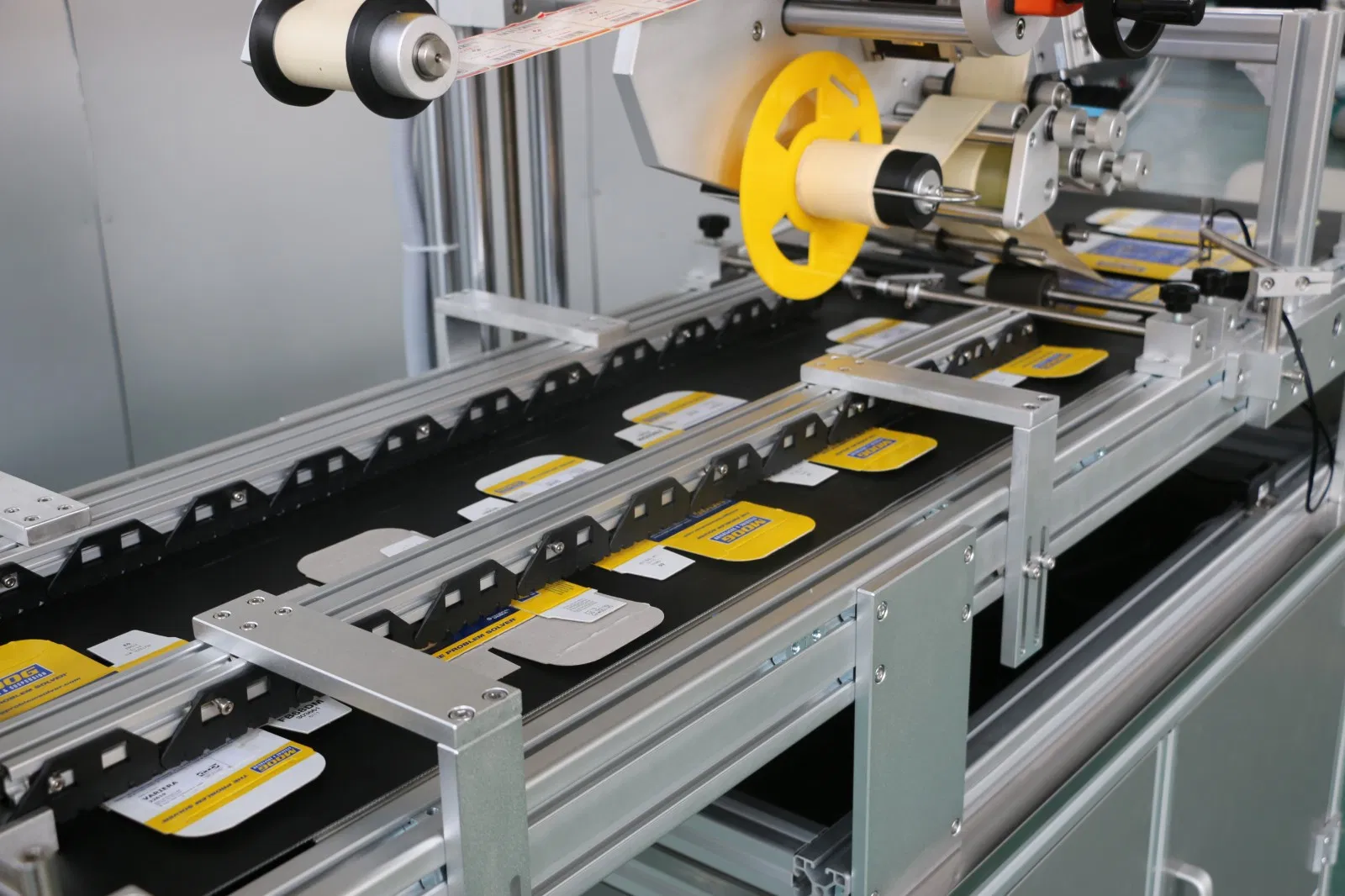

Product Gallery
🛠️
Technical Configuration
| No |
Name |
Brand |
| 1 | HMI (Touch screen) | SIEMENS |
| 2 | PLC | SIEMENS |
| 3 | Servo motor and driver | Panasonic & NOVEXX ALS204 |
| 4 | Sensor (check bottle) | Japan KEYENCE |
| 5 | Sensor (check label) | German LEUZE |
| 6 | Inverter | DELTA |
| 7 | Visual camera (optional) | Baumer |
| 8 | Paging motor | German JSCC |
| 9 | Conveyor motor | Switzerland ABB |
🔧
Service & Support
Standard Warranty: 12 months or 2,000 hours.
Extended Warranty: Optional up to 36 months.
Global Support: 24/7 support and spare parts supply.
Training: On-site or remote operation and maintenance training customized to client time zones.
🏭
Industry Leadership
Since 1998, we have excelled in packaging machinery automation, leading in R&D, production, and smart tech integration. With a dedicated team of technical experts, we operate across 180+ countries, delivering mature and stable equipment solutions.
🌟
Core Advantages
1. 25 years of industry experience and deep application knowledge.
2. Integration of mechanical automation with IoT and vision systems.
3. Proven reliability in 180+ countries.
4. Flexible customization for specific production needs.
5. Dedicated localized support and efficient global communication.
❓
Frequently Asked Questions
Q: What is the lead time for equipment orders?
A: Standard models are typically ready in 7–10 days after payment. Custom units require 25–35 days depending on the project complexity.
Q: Can the labeling machine be customized for specific bag sizes?
A: Yes, we offer full customization. We provide detailed design drawings for your confirmation before production begins.
Q: What is the production capacity of the PM-DPM-A?
A: The machine can handle between 50 to 200 pieces per minute, depending on the product size and label length.
Q: What documents are provided for international shipping?
A: We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and COC.
Q: What type of labeling does this machine support?
A: It is designed for self-adhesive sticker labeling on flat surfaces like bags, cards, and unshaped boxes.
Q: Is technical training available for my operators?
A: Yes, we provide both on-site and remote training for operation and maintenance to ensure your team is fully proficient.
