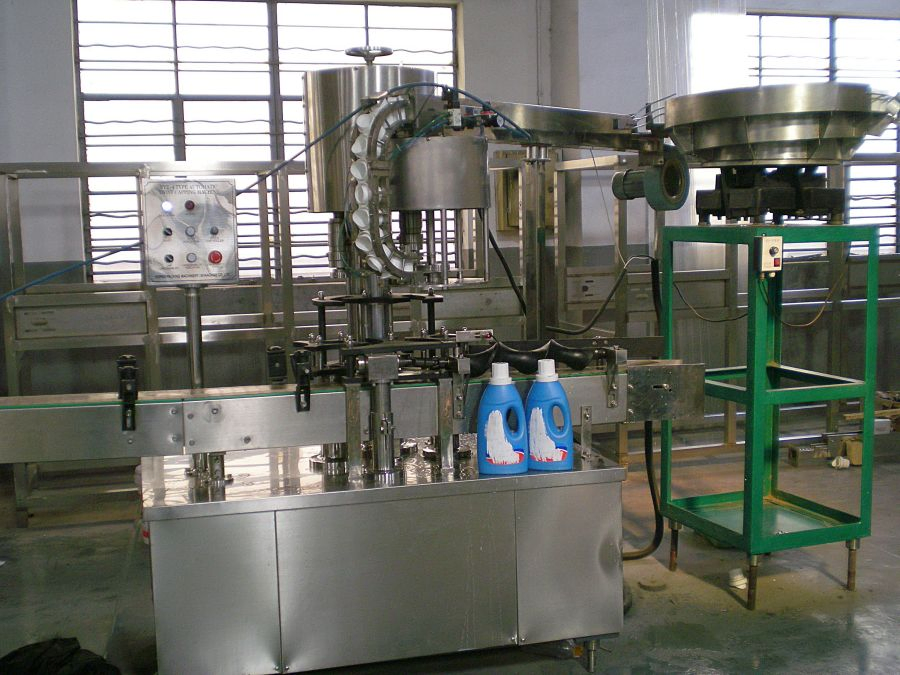

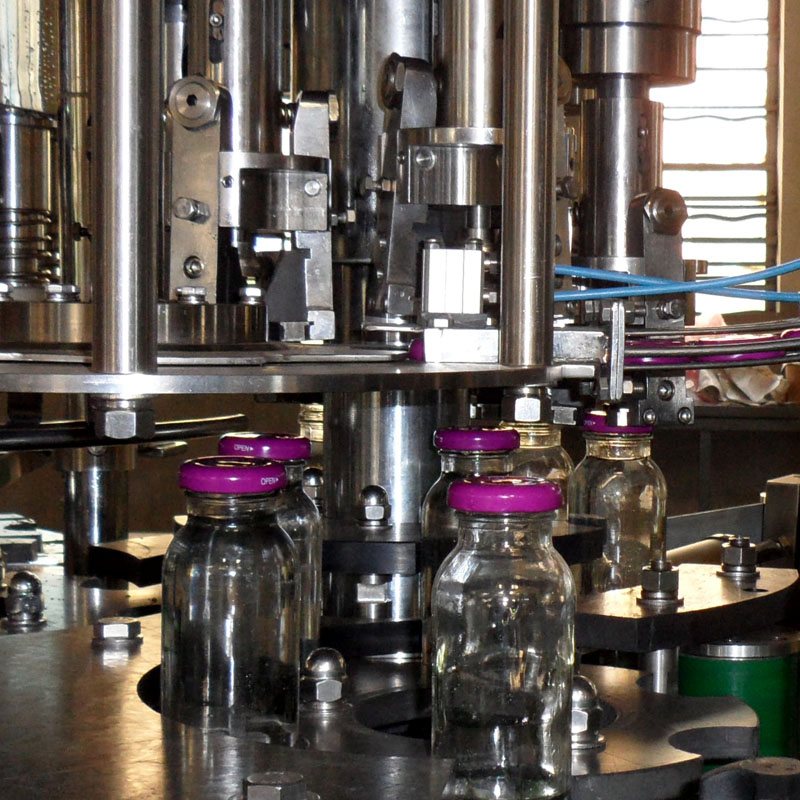

Automatic Capping Machine for Screw Cap/ Flip-Top Cap/Ropp Cap/Lug Cap/Crown Cap Capping Machine

1 / 5

Automatic Capping Machine for Screw Cap/ Flip-Top Cap/Ropp Cap/Lug Cap/Crown Cap Capping Machine

Customization:	Available
After-sales Service:	24 Hours
Warranty:	15 Months

Send Inquiry

Product Description

Basic Information

Model NO.

CM-6

Packaging

Bottles

Automatic Grade

Automatic

Packaging Material

Plastic

Application

Cosmetics, Cleaning, Detergent, Drinks, Oil, Dairy Products, Skin Care Products, Hair Care Products, Tea, Vegetable, Fruit

Usage

Inner Packing

Type

Cap Sealing Machine

Material Type

Liquid

Power

1.5kw

Capacity

100bpm

Applicable Container

Plastic, Glass, Metal

Max Container Dia.

110mm

Voltage

380-440V 50Hz / 220V 60Hz

Unqualified Rate

<0.1%

Control System

Siemens Components

Product Parameters

Item / Model	CM-1	CM-4	CM-6	CM-8	CM-10	CM-12	CM-15
Capping Heads	1	4	6	8	10	12	15
Capacity (500ml B/H)	2000bph	4000bph	7000bph	9000bph	12000bph	18000bph	24000bph
Power	0.55kw	1.5kw	1.5kw	2.2kw	2.2kw	3.5kw	3.5kw
Air Consumption	0.3m³/min	0.3m³/min	0.4m³/min	0.4m³/min	0.5m³/min	0.5m³/min	0.6m³/min
Applicable Container	Bottle, Cup, Can, Jar (Plastic, Glass, Metal)
Cap Types	Plastic Screw cap, Press-and-Turn, Flip cap, Stopper cap, ROPP cap, Crown cap, Twist-off cap
Container Dia.	30-110mm

Product Description

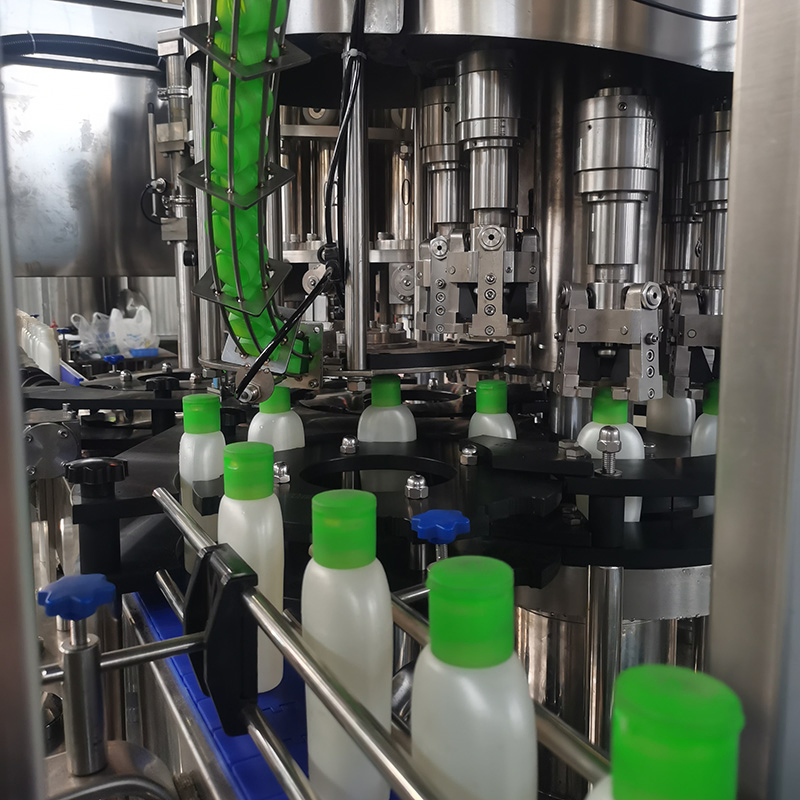

Flip top cap closing machine

ROPP capping machine

Screw capping machine

Stainless steel base mounted on adjustable floor levellers for easy alignment
Bearing frame and all surface components manufactured in SUS 304 stainless steel
Manual height adjustment via column with manual and independent speed variation
Caps in chute photocell: machine will not work if there are no caps present

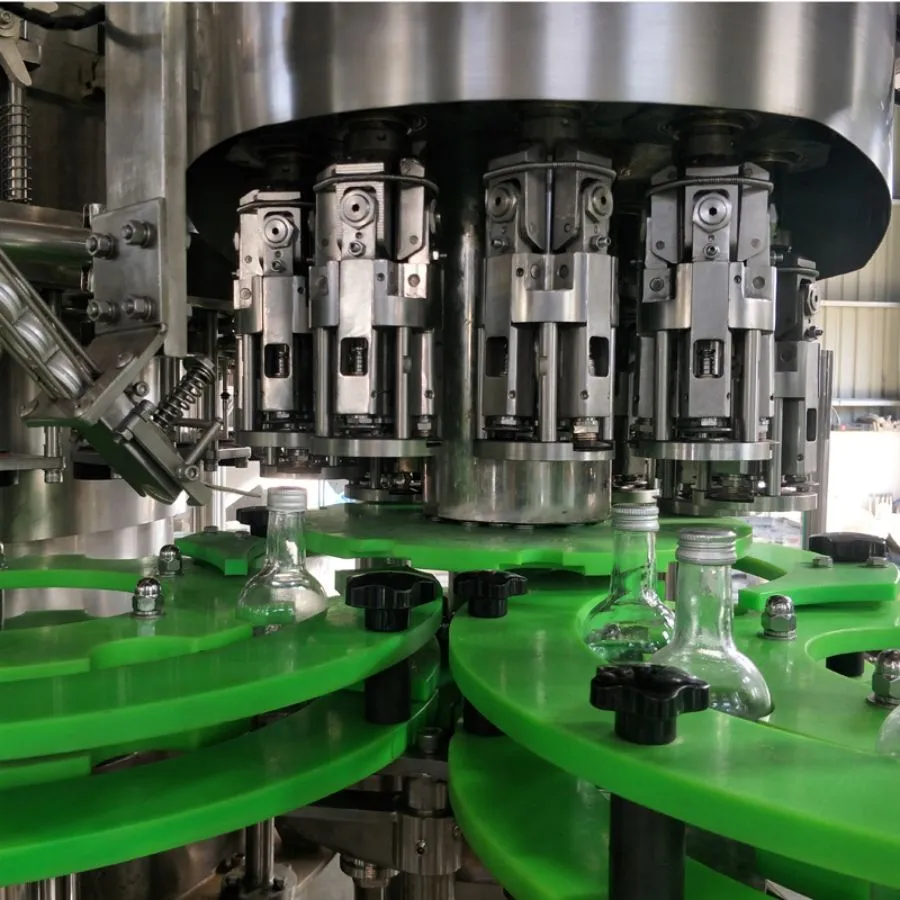

Magnetic clutch capping head for screw caps with adjustable torque force
Stainless steel Cap pickup mould with wear-resistant rubber lining
Equipped with Siemens control system and 24 volt auxiliary commands
Main motor Overload clutch protection system and acoustic alarm warnings
Full safety guarding with interlock devices for operator protection

Sauce / Juice & Dairy / Soft Drink Filling Machine

Skin Cream Filling / Automatic Capping / Canning Drink Machine

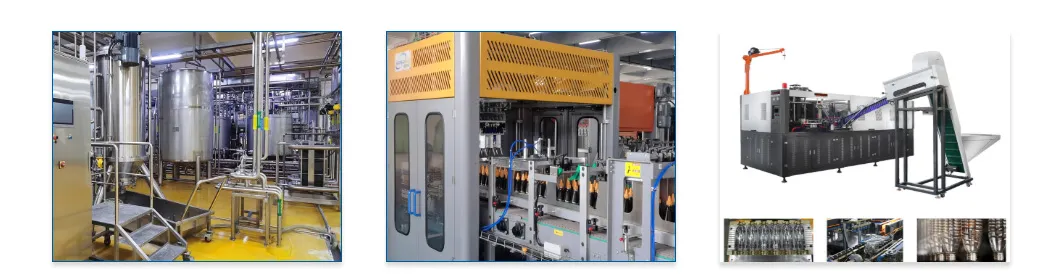

Processing & Sterilization / Packing / Bottle Molding System

Frequently Asked Questions

What types of caps can this capping machine handle?

The machine is versatile and can handle Plastic Screw caps, Press-and-Turn caps, Flip-top caps, Stopper caps, ROPP caps, Crown caps, and Twist-off caps.

What is the construction material of the machine?

The bearing frame and all surface components are manufactured using high-quality SUS 304 stainless steel for durability and hygiene.

Can the capping torque be adjusted?

Yes, the machine features a magnetic clutch capping head for screw caps, allowing for precise and adjustable torque force.

What control system is used in the machine?

The equipment is integrated with a Siemens control system, ensuring stable performance and reliable electronic management.

What happens if there are no caps in the feeder?

The machine is equipped with a photocell in the cap chute; it will automatically stop or not work if no caps are detected, preventing damage or errors.

What is the production capacity of the CM-6 model?

The CM-6 model has a production capacity of approximately 7,000 bottles per hour (based on 500ml containers).
