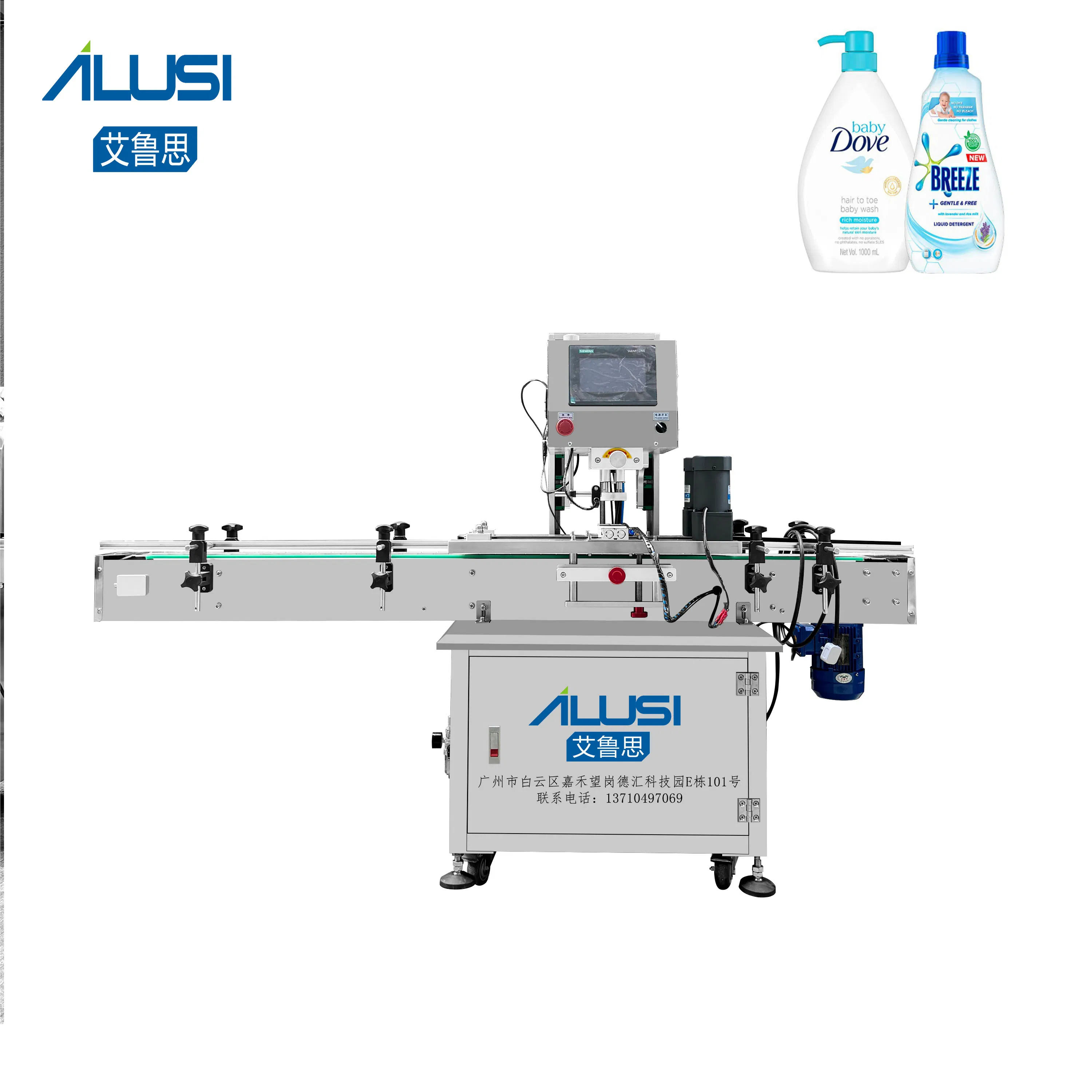

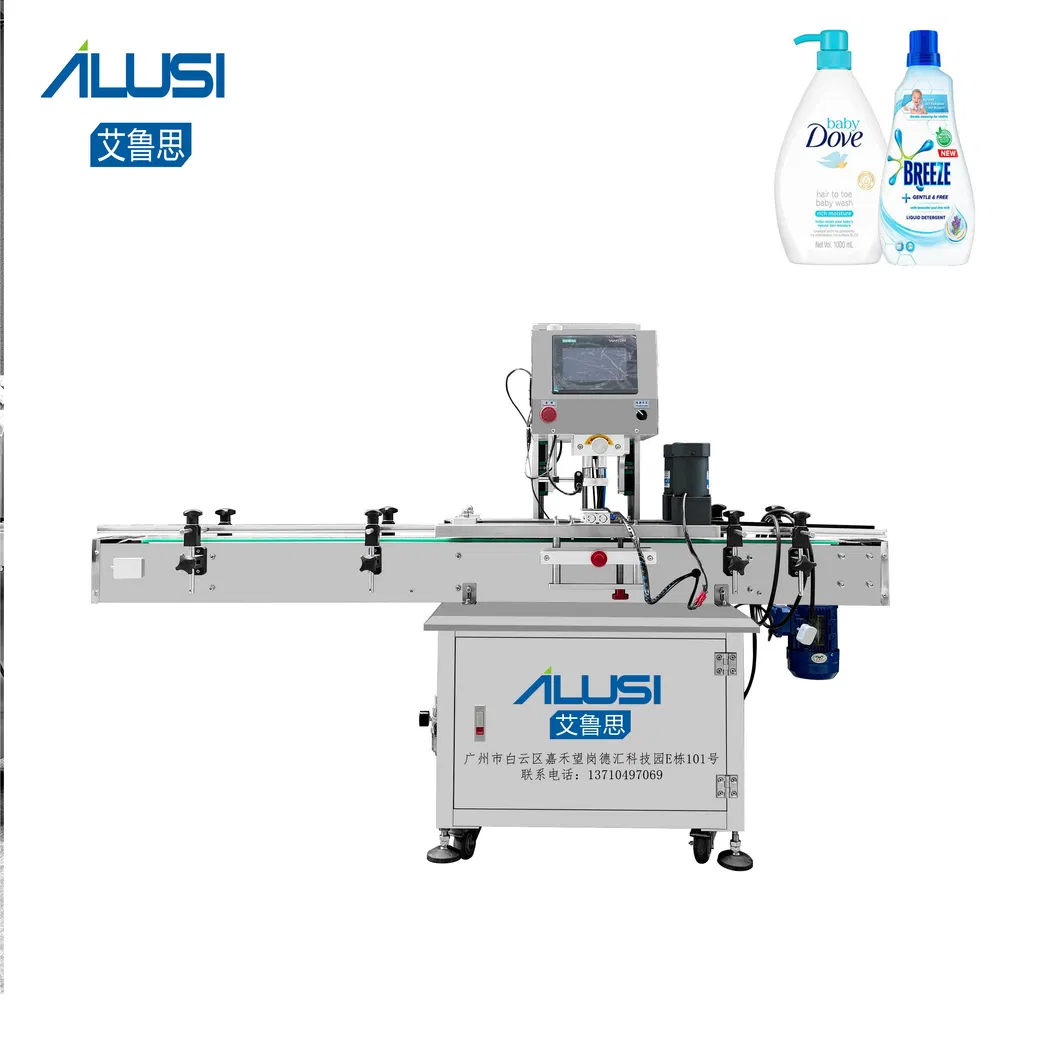

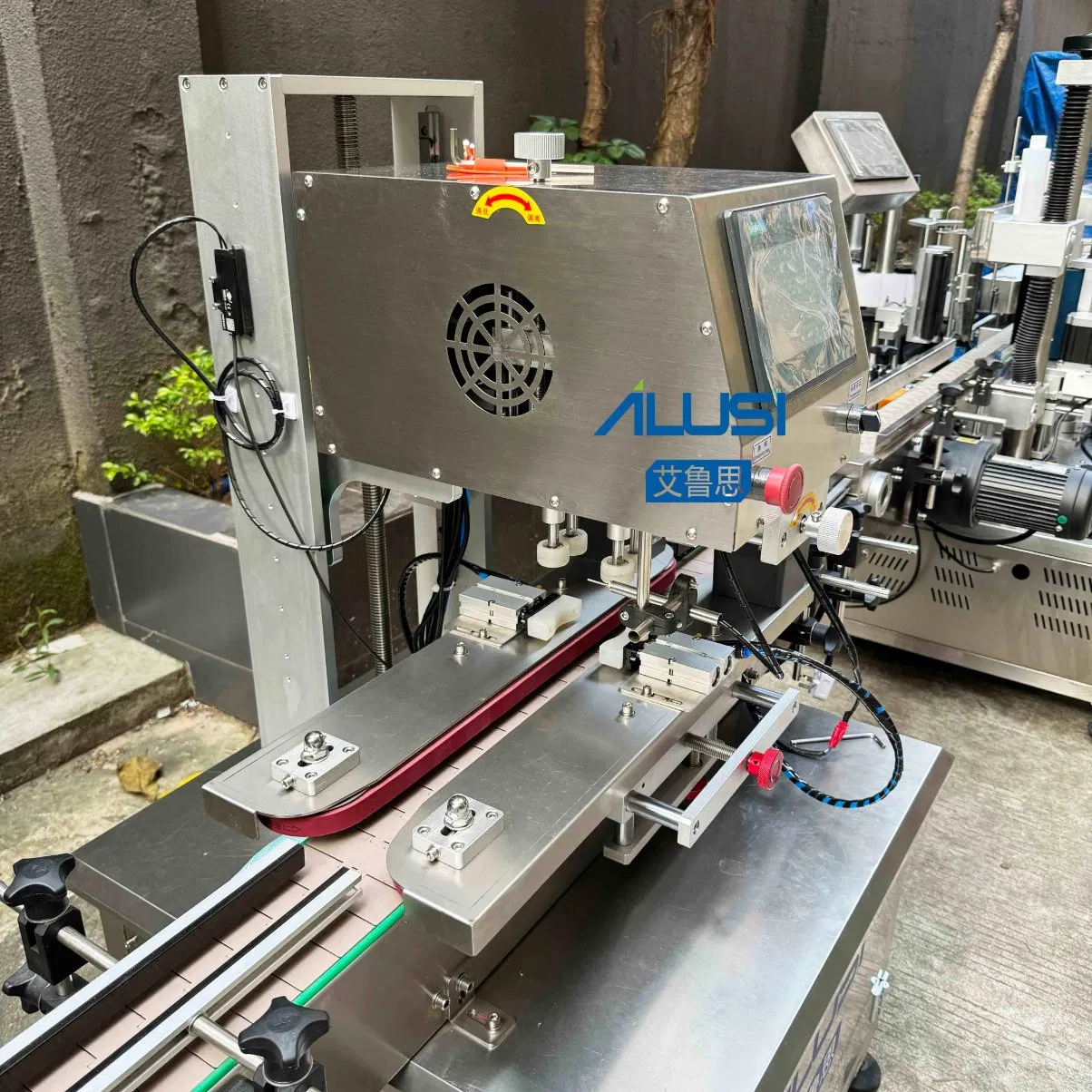

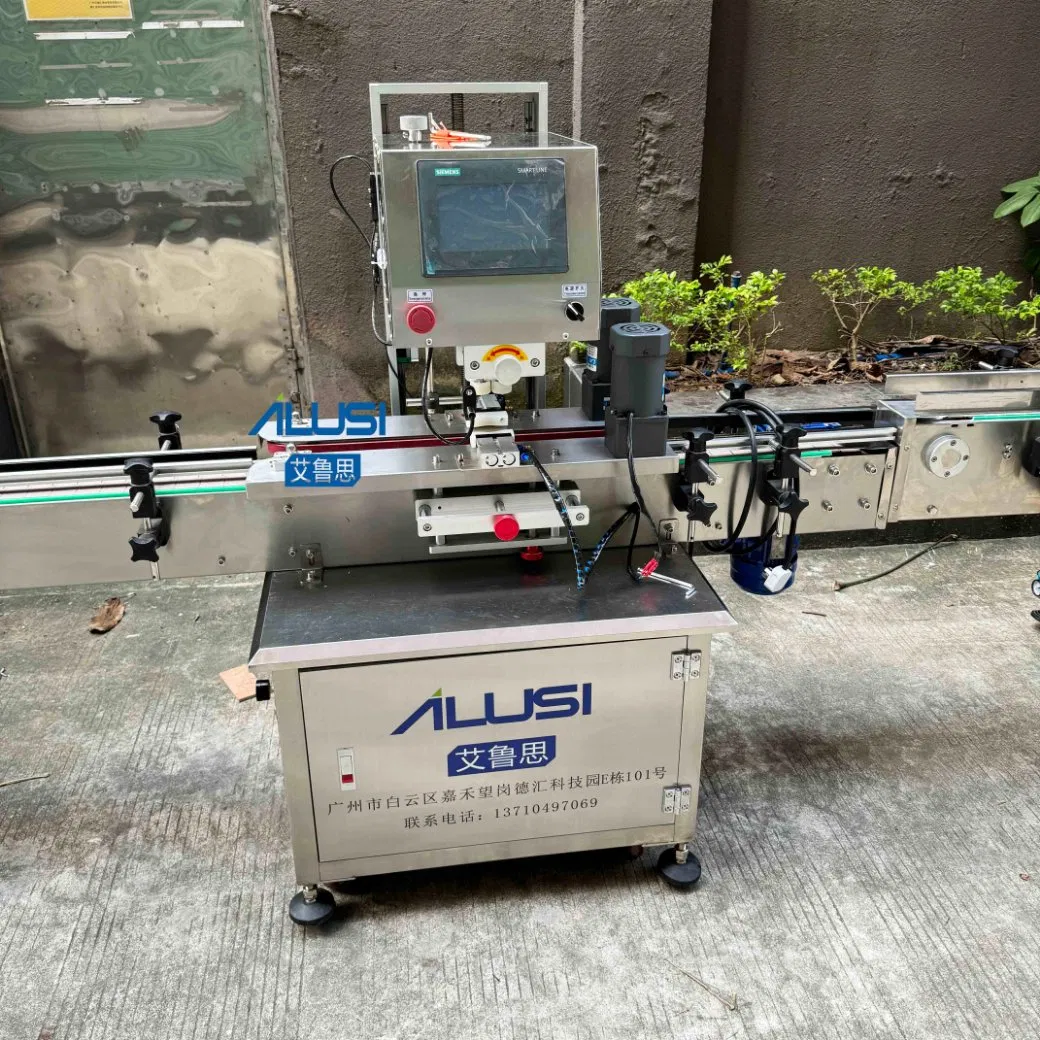

This automatic bottle screw capping machine features electrical control movement and strong stability. With positioning devices, the standard capping is easy to operate, and it is suitable for caps of different shapes and sizes.
| Item | Value |
|---|---|
| Voltage | AC380V / 60Hz |
| Item Name | High Speed Plastic Cap Sealer Capping Machine |
| Function | Screw capping, capper |
| Bottle application | Round bottle, flat bottle, square bottle |
| Applicable bottle Diameter | 40 ~ 115 mm (customized) |
| Applicable bottle Height | 80 ~ 320 mm (customized) |
| Bottle's neck diameter | 20 ~ 55 mm (customized) |
| Production capacity | 2000 ~ 3500 b/H (adjustable) |
| Screw cap rate | ≥99% |

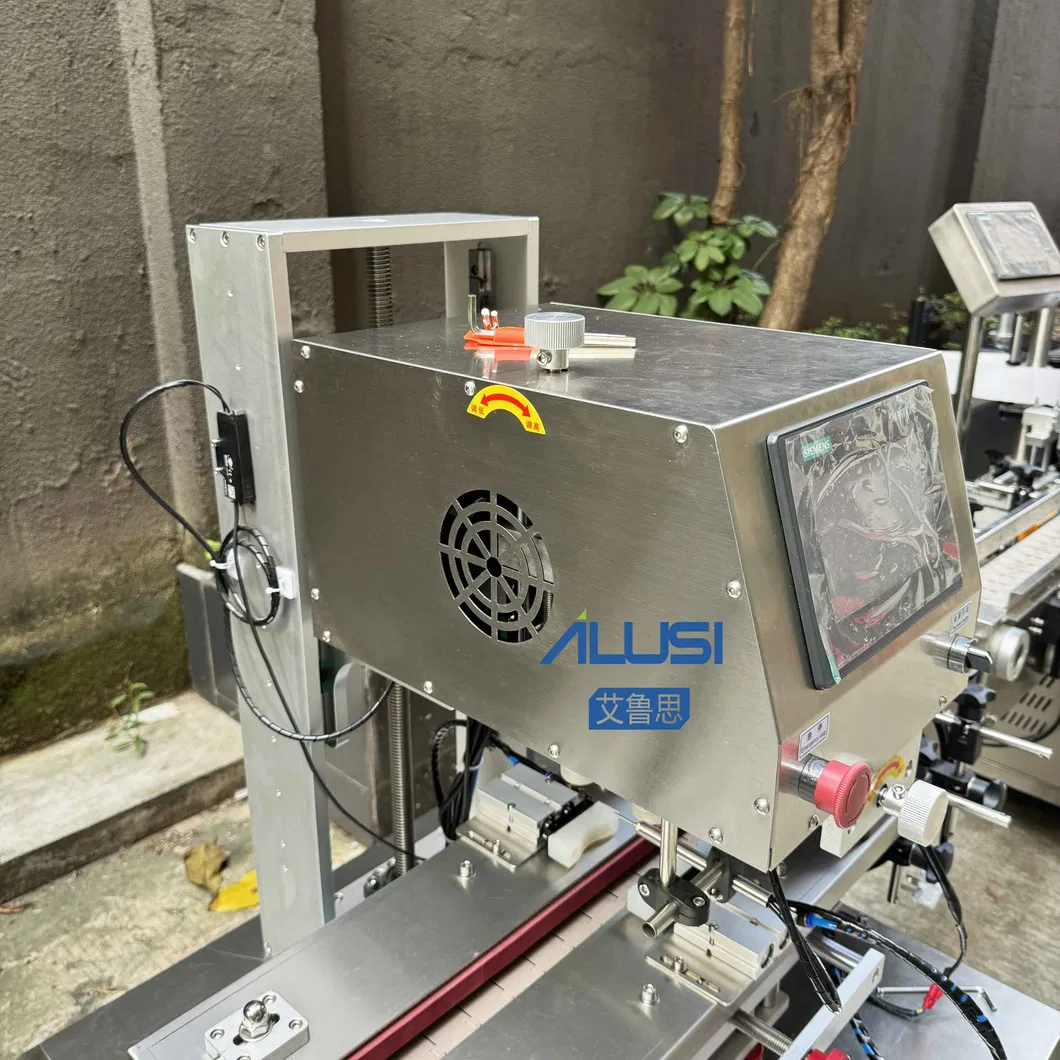

This part can adjust height, width etc. So you can adjust it for different bottles.

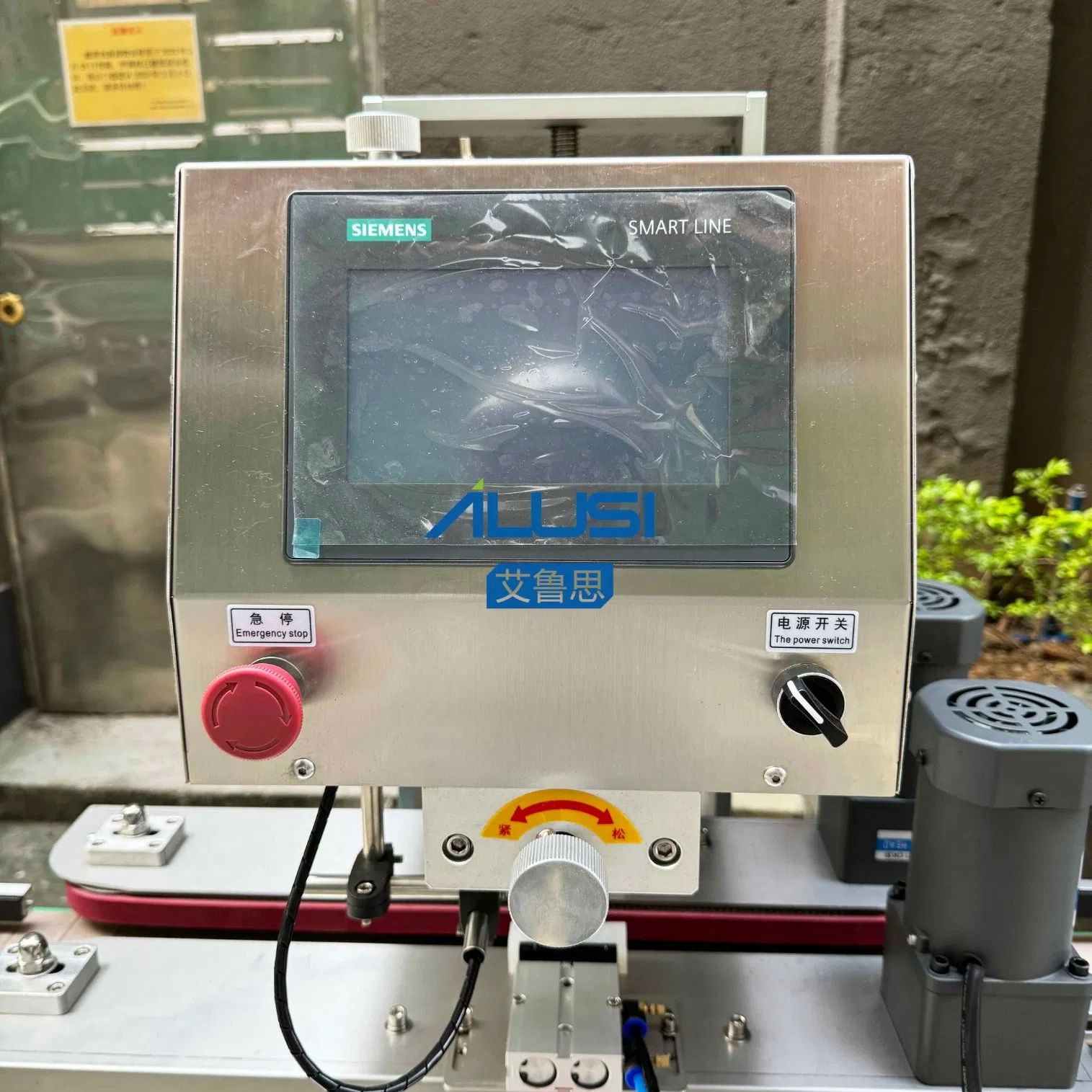

With SIEMENS PLC screen control, you can operate the machine more conveniently and monitor performance in real-time.

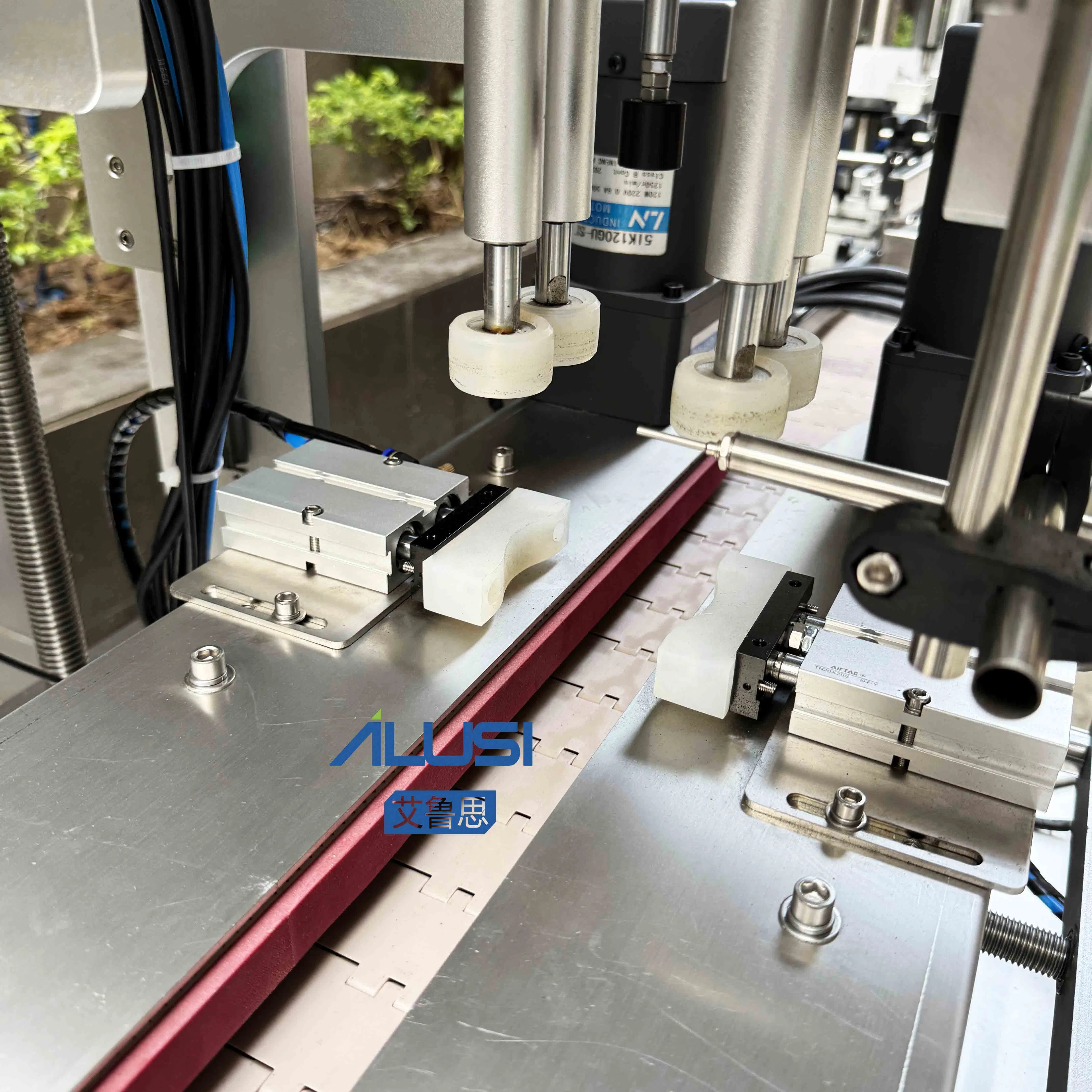

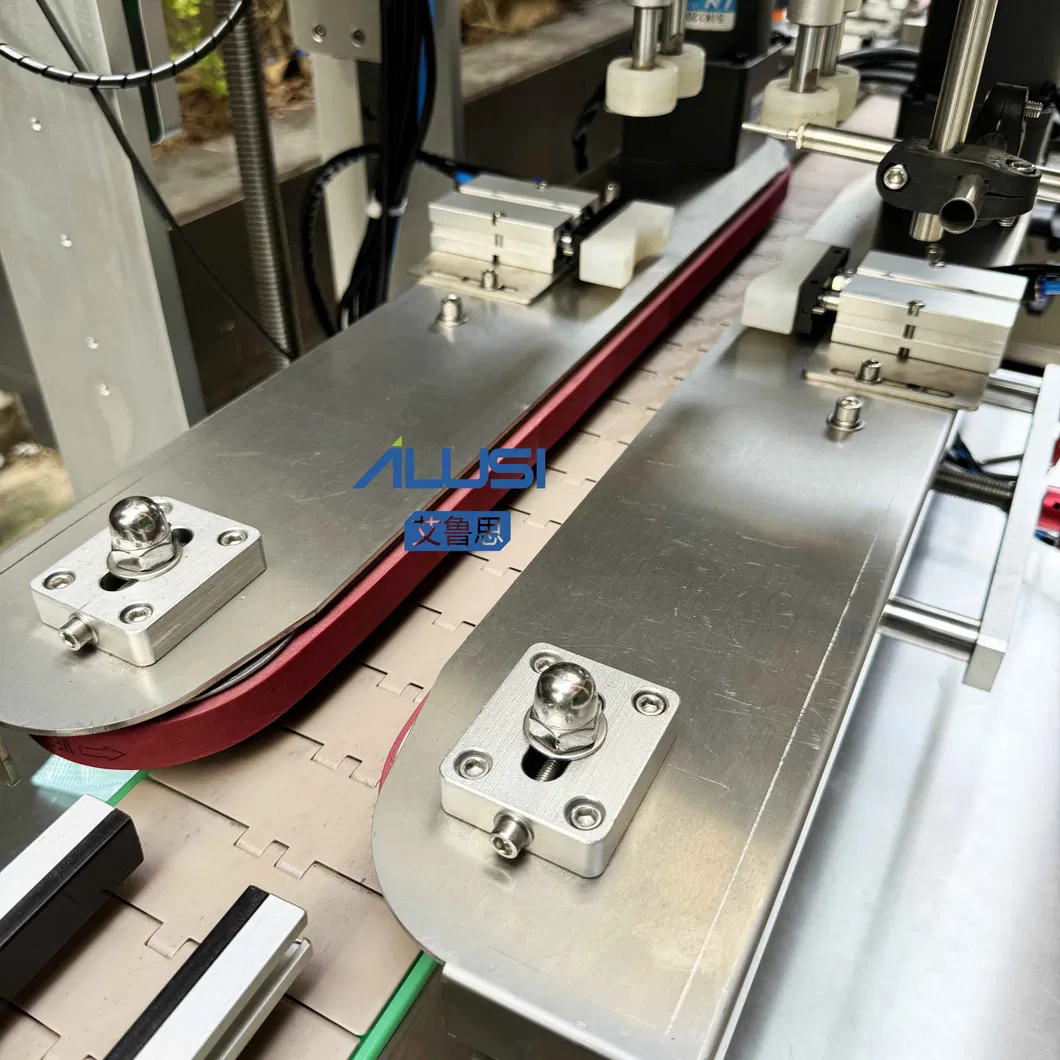

Two nipping belts to fix the bottle position, making the capping process easy and efficient.

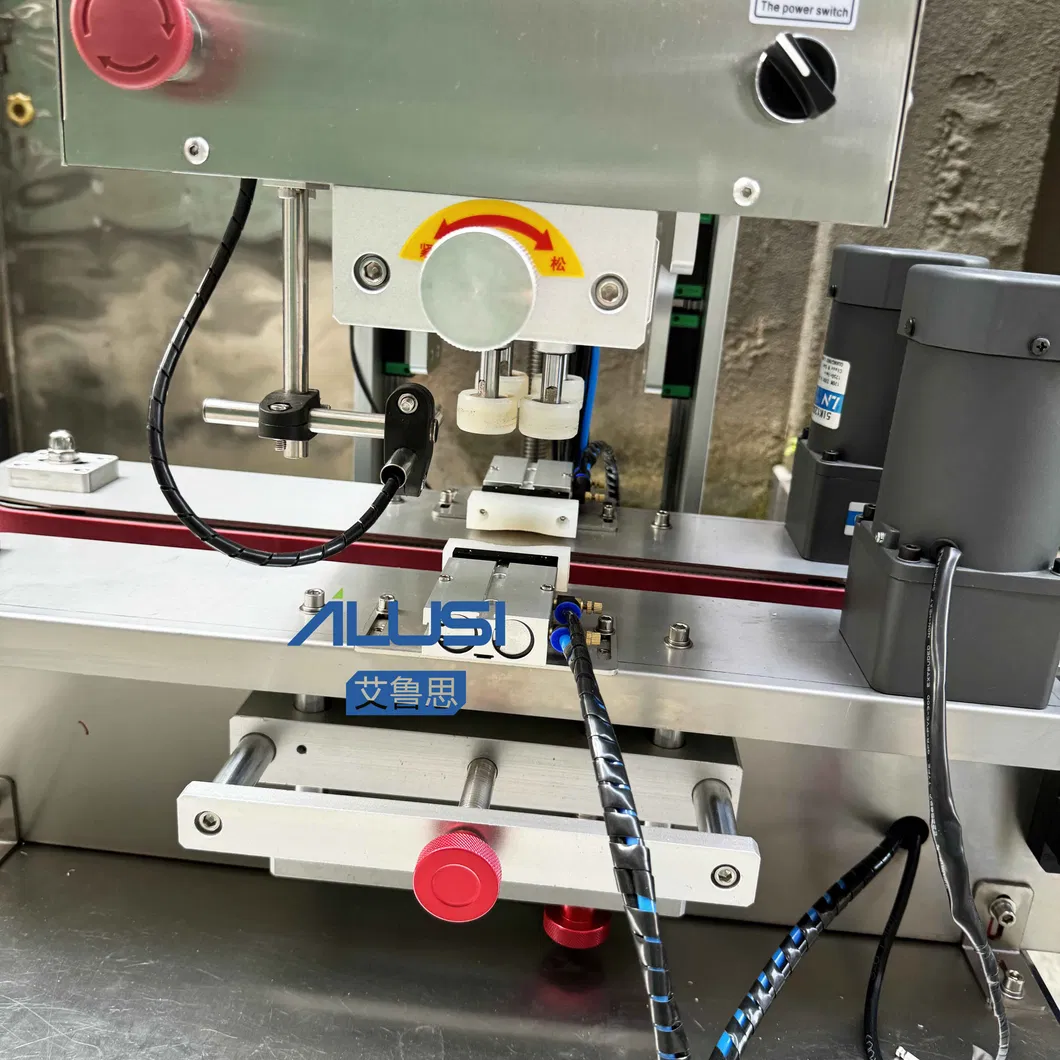

CAPPING CHUCK
Suitable for pump and screw caps.
CONVEYOR CONTROL
Frequency converting speed control.

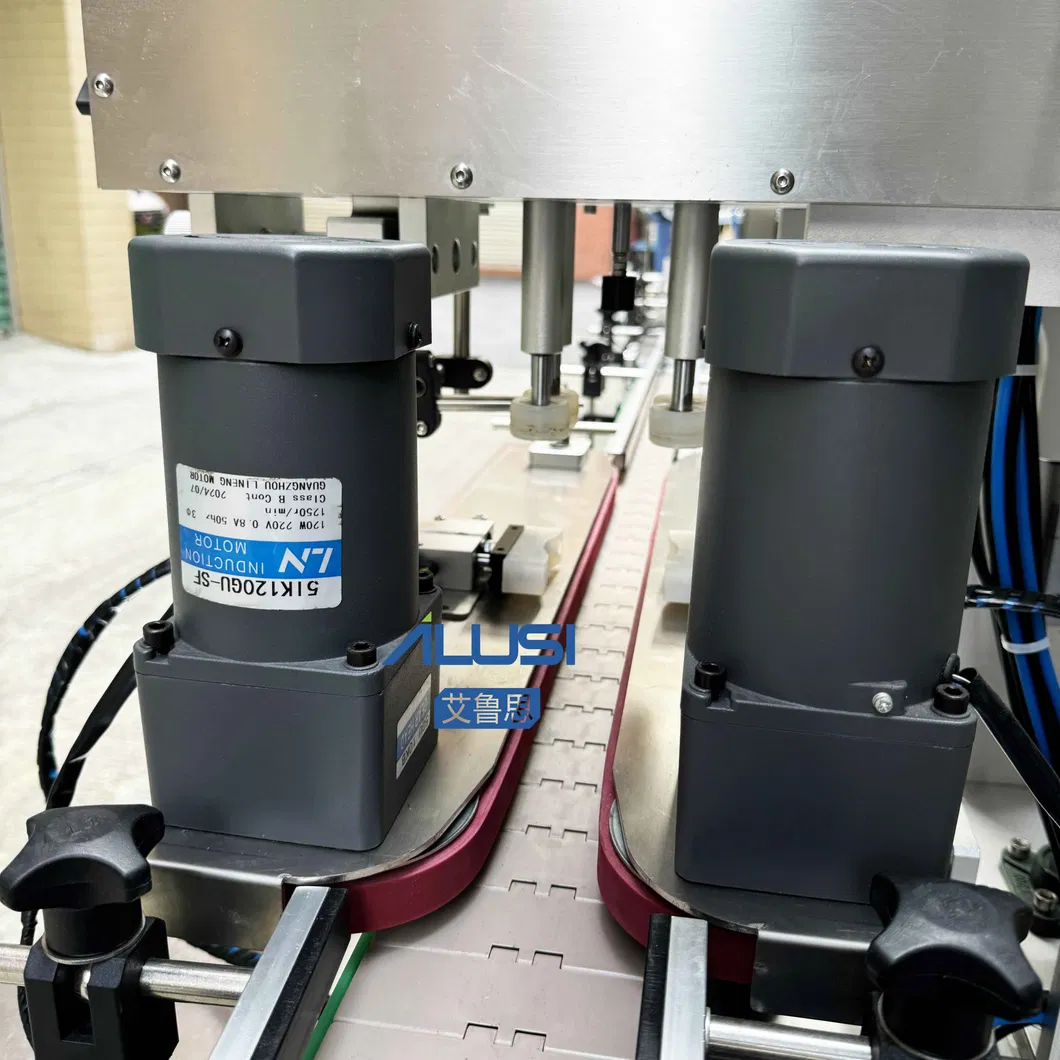

DOUBLE MOTOR
Stable performance for nipping belts.
