Basic Specifications
Type
Volumetric Filling Machine
Filling Valve Head
Multi-Head
Feed Cylinder
Single-Room Feeding
Filling Principle
Atmospheric Pressure
Packaging
Bottle (Plastic/Glass)
Processing Type
Water Bottling Machine
Machine Structure
Monoblock 3 in 1
Cap Type
Plastic Screw / Crown Cap
Voltage
208V-460V, 3phase, 50Hz/60Hz
Product Description

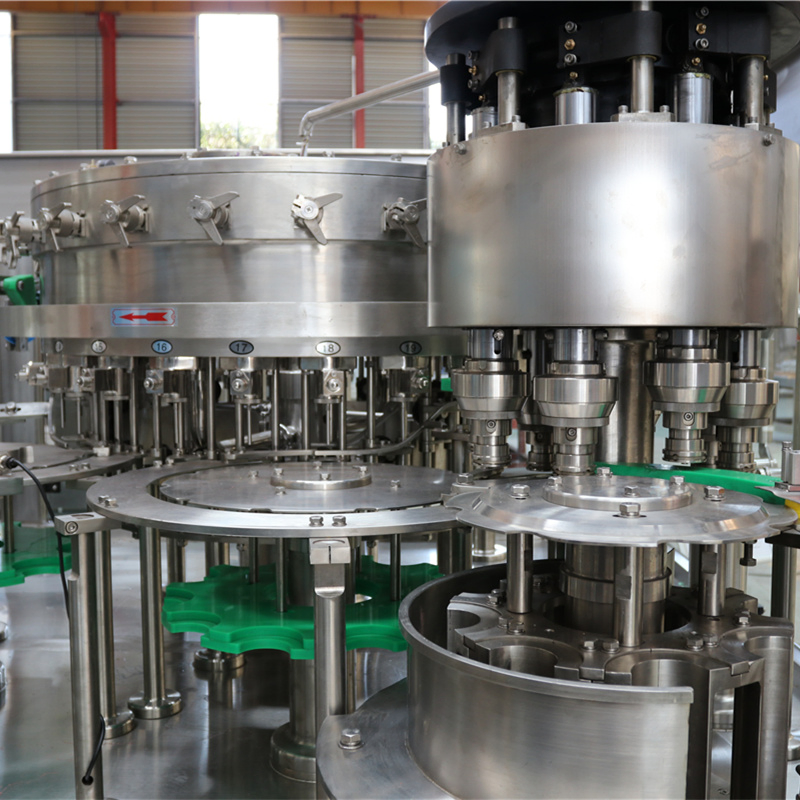

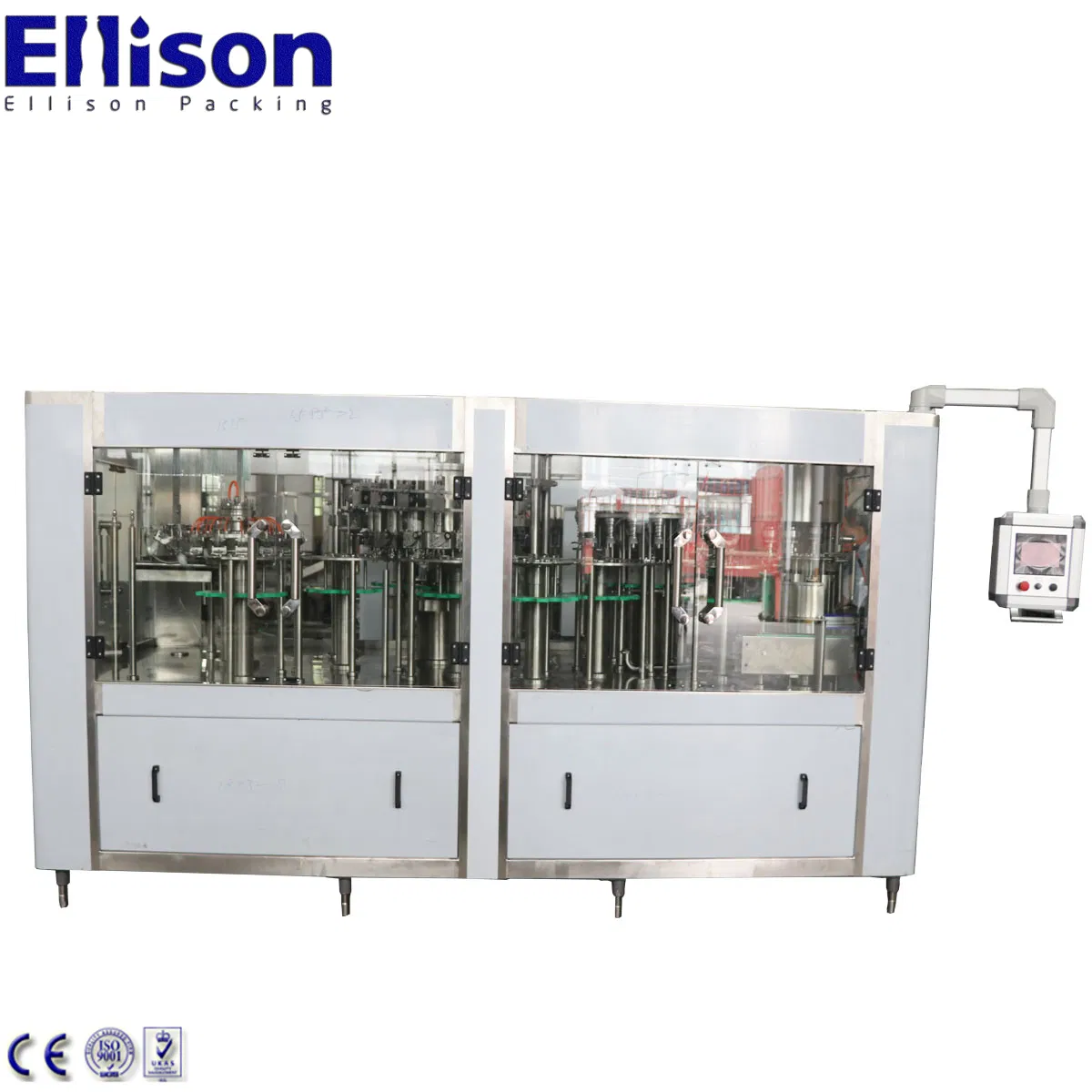

Nowadays the monoblock filling machine is becoming more and more popular due to its stable filling speed, precision filling level, high capacity, compact structure and less changeovers etc. Monoblock filling machine means the structure combines the washing part, filling part and capping part in one unit. It has been the trend to replace the old type of filling machine gradually.
Technical Parameters
| Project Details |
Specifications |
| Application | Carbonated water / Soft Drink / Beer |
| Container Material | Glass Bottle / PET Bottle |
| Filling Volume | 200-2000ml |
| Bottle Dimensions | Diameter Φ50~Φ85mm; Height 105~300mm |
| Filling Accuracy | ± 5ml |
| Processing Sequence | Washing --- CO2 Purge --- Vacuum --- Filling --- Capping |
| Control System | PLC Controlled with Electronic Probes |
Key Features
- Monoblock Design: Integrated Rinsing, Filling, and Capping in one compact unit.
- Neck Holding Technology: Ensures stable bottle transfer and minimizes changeover time.
- Safety Sensors: "No Bottle - No Rinsing", "No Bottle - No Filling", and "No Bottle - No Capping".
- High-Grade Construction: Contact parts made of SUS316 and SUS304 stainless steel.
- Automated Logistics: Separate cap hopper with a capacity of 2000 caps.
Detailed Information

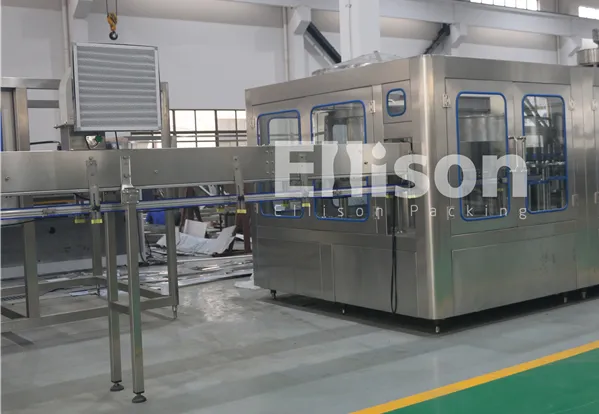

1. Air Conveyor System
Empty bottles are loaded via air conveyor using high-pressure blowers. This allows different bottle sizes to run without manual adjustments.

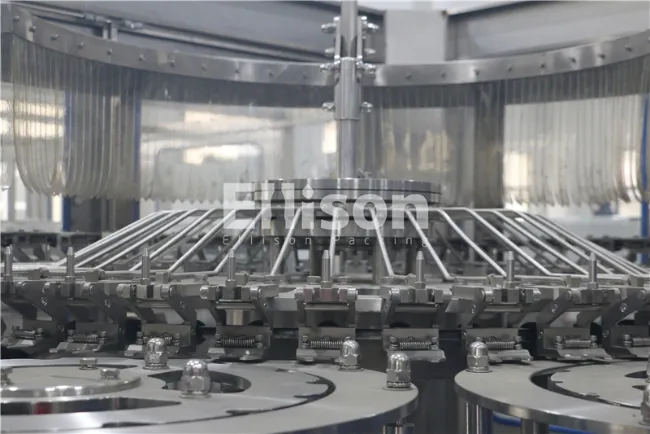

2. Bottle Rinsing
Automatic rinse rotor with spring-loaded grippers. Bottles are inverted and washed for up to three seconds to remove residuals before uprighting for filling.

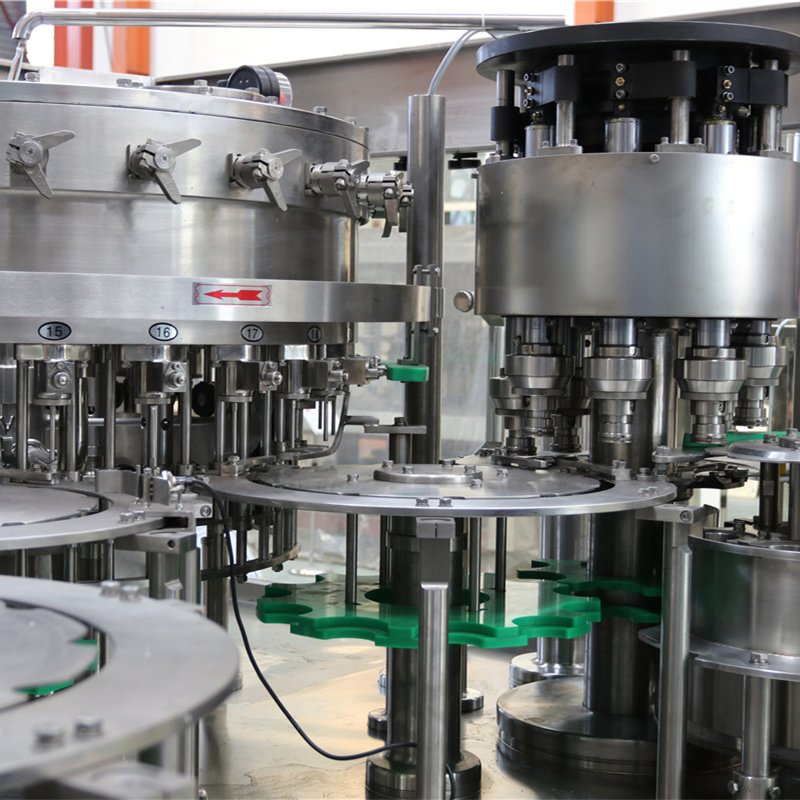

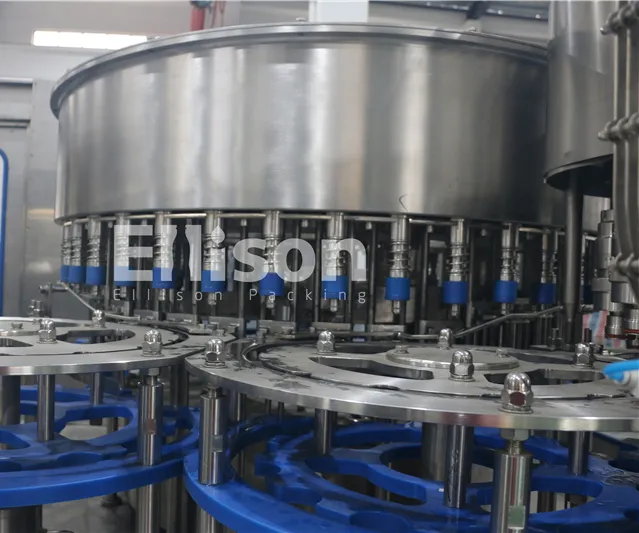

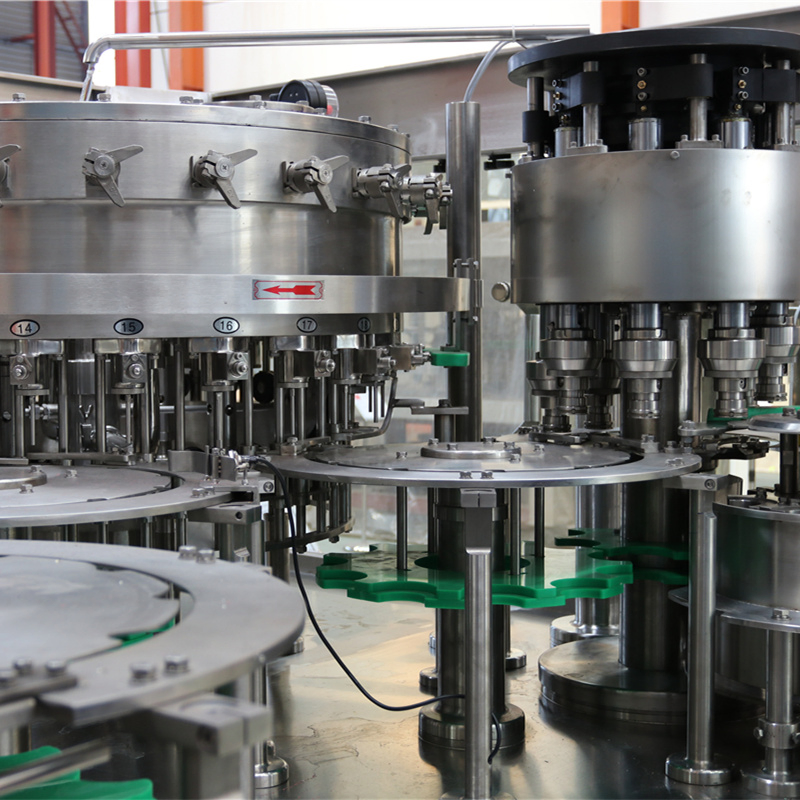

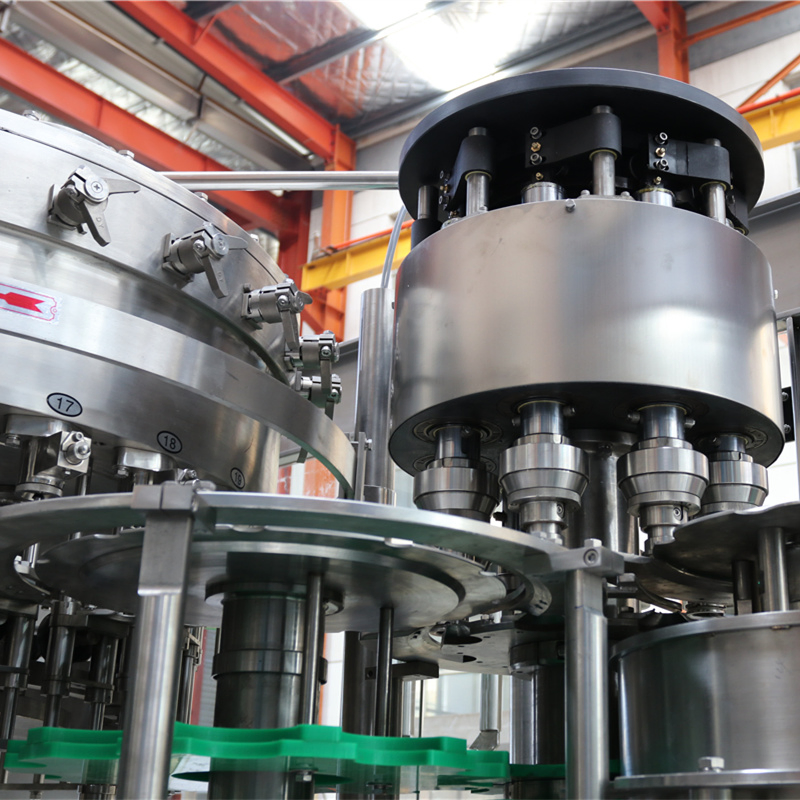

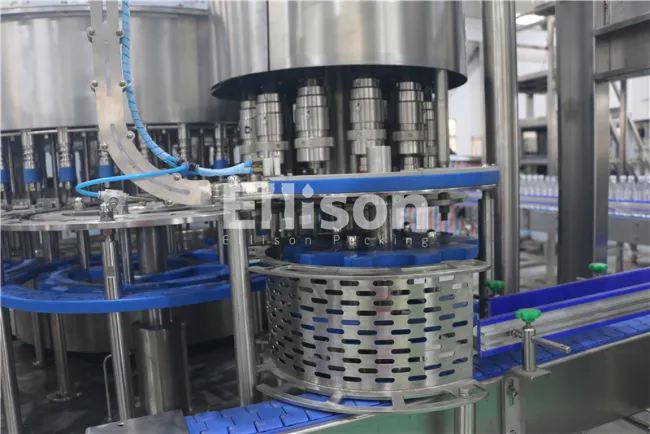

3. Liquid Filling & Capping
Utilizes the internationally accepted VENT PIPE filling principle for accurate levels without spillage. Post-filling, bottles are transferred to the capping rotor where caps are securely applied.

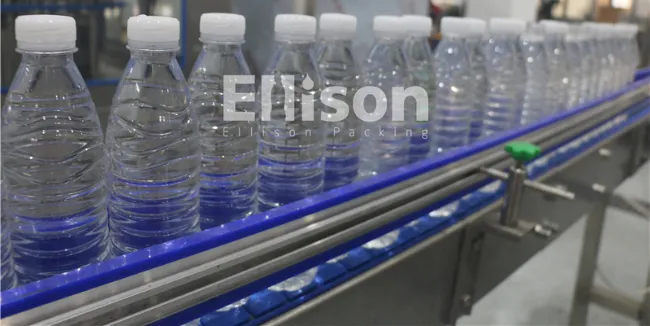

4. Cap Elevator & Output
Caps are stored in a ground-level hopper and elevated automatically based on chute capacity. Finished bottles are discharged onto a SUS304 slat conveyor for inspection and labeling.

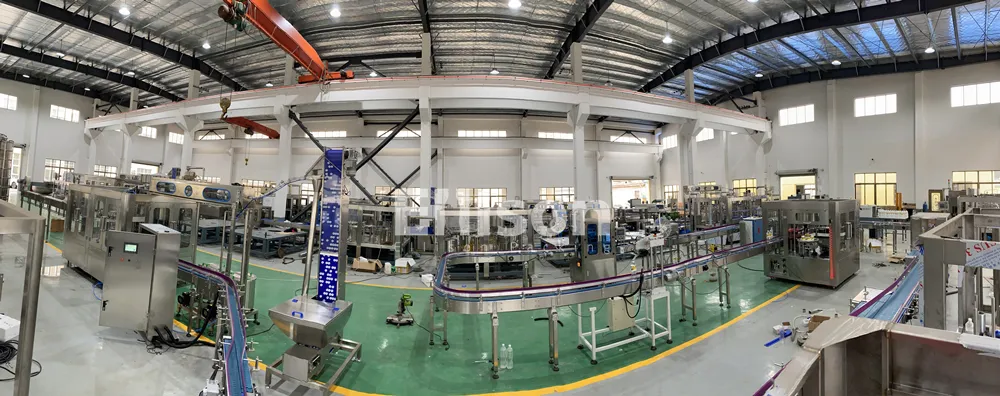

Complete Production Line Solutions
1. Water Treatment: Purifies raw water to standard drinking quality.
2. Juice Preparation: Melting, mixing, and homogenizing for flavored beverages.
3. CIP System: Automatic cleaning for pipes, valves, and vessels.
4. Blow Molding: Forming PET bottles from preforms.
5. Packing System: Labeling, date printing, and shrink wrapping.
Frequently Asked Questions
How can I get an appropriate offer for my project?
Please provide your required production capacity (bph), the type of liquid (water, juice, carbonated), bottle material (plastic/glass), and cap type. For water treatment, a raw water quality report is also helpful.
What if I have no experience in starting a bottling factory?
We provide full support including machine selection based on your budget, factory layout design, and technical workflow planning to get your business started.
How do you ensure the quality of the machines?
We clarify all technical specifications (material thickness, component brands) before ordering. We offer video calls to show our factory and welcome on-site visits to inspect the machines.
How is the installation and commissioning handled?
Technicians are available to travel to your facility for installation and training. The client is responsible for travel expenses, accommodation, and daily technician fees.
Do you provide customized machine services?
Yes, we design machines according to your specific requirements regarding material, power supply, filling type, and bottle shapes, backed by years of industry expertise.
What happens if the quality does not meet my requirements?
We negotiate inspection standards before production. If you are not satisfied during the pre-shipment inspection, we will rectify the issues until the standards are met.
