Basic Specifications
Type
Volumetric Filling Machine
Automatic Grade
Fully Automatic
Filling Valve Head
Two Heads
Feed Cylinder
Peristaltic Pump
Packaging Material
Glass Bottles
Filling System
Magnetic or Peristaltic Pump
Material
Stainless Steel 316 or 304
Product Gallery
Product Description

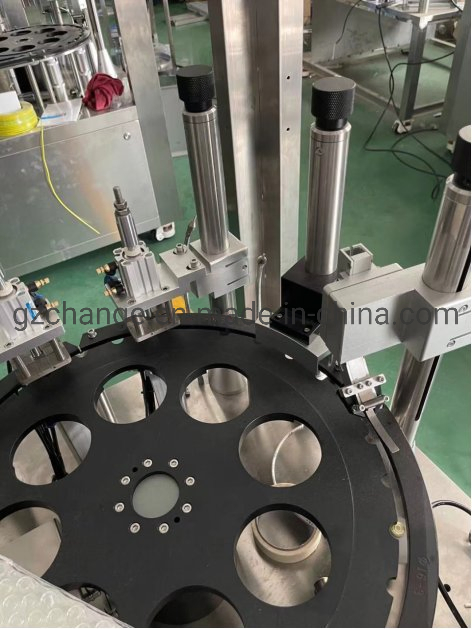

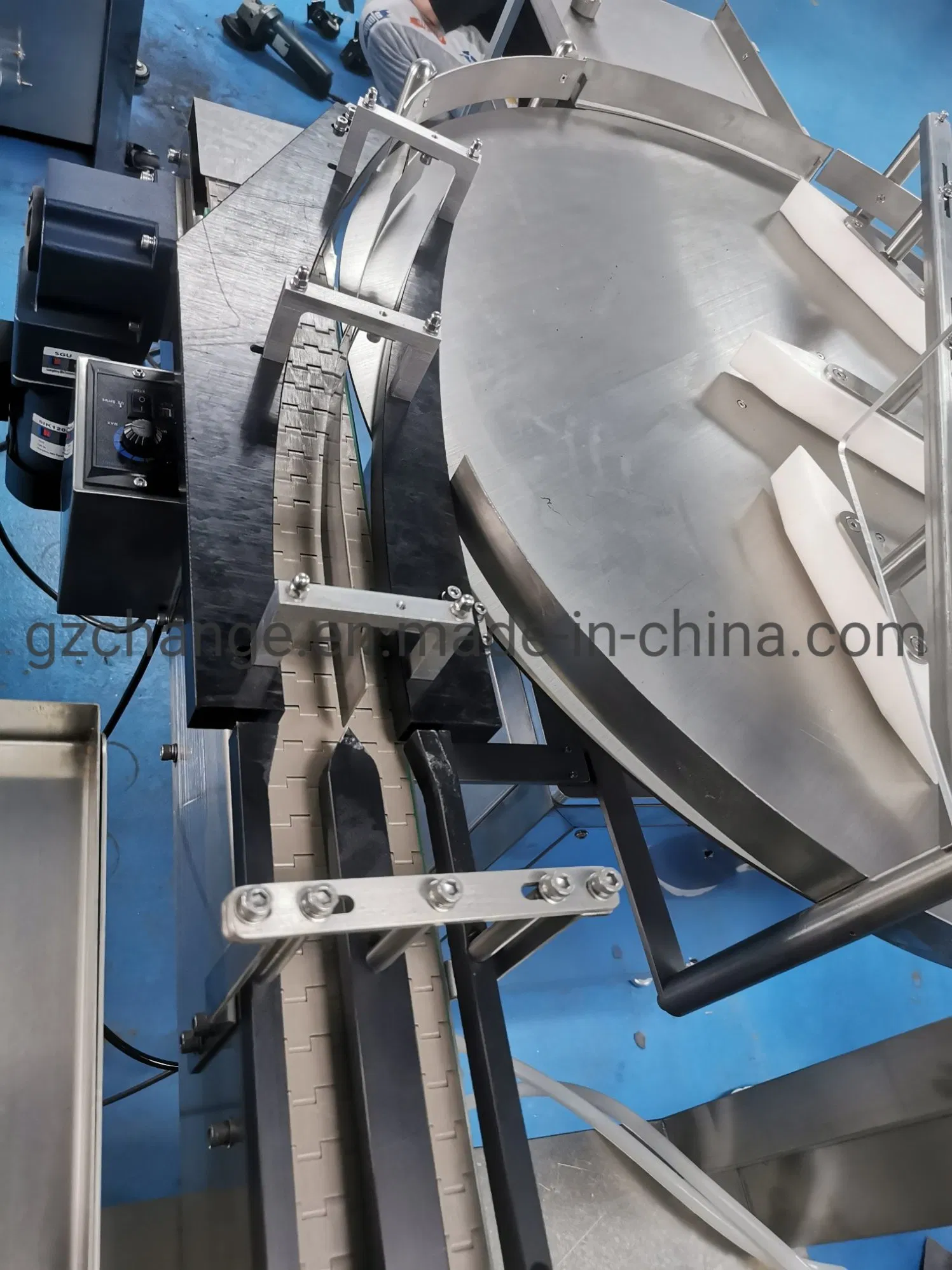

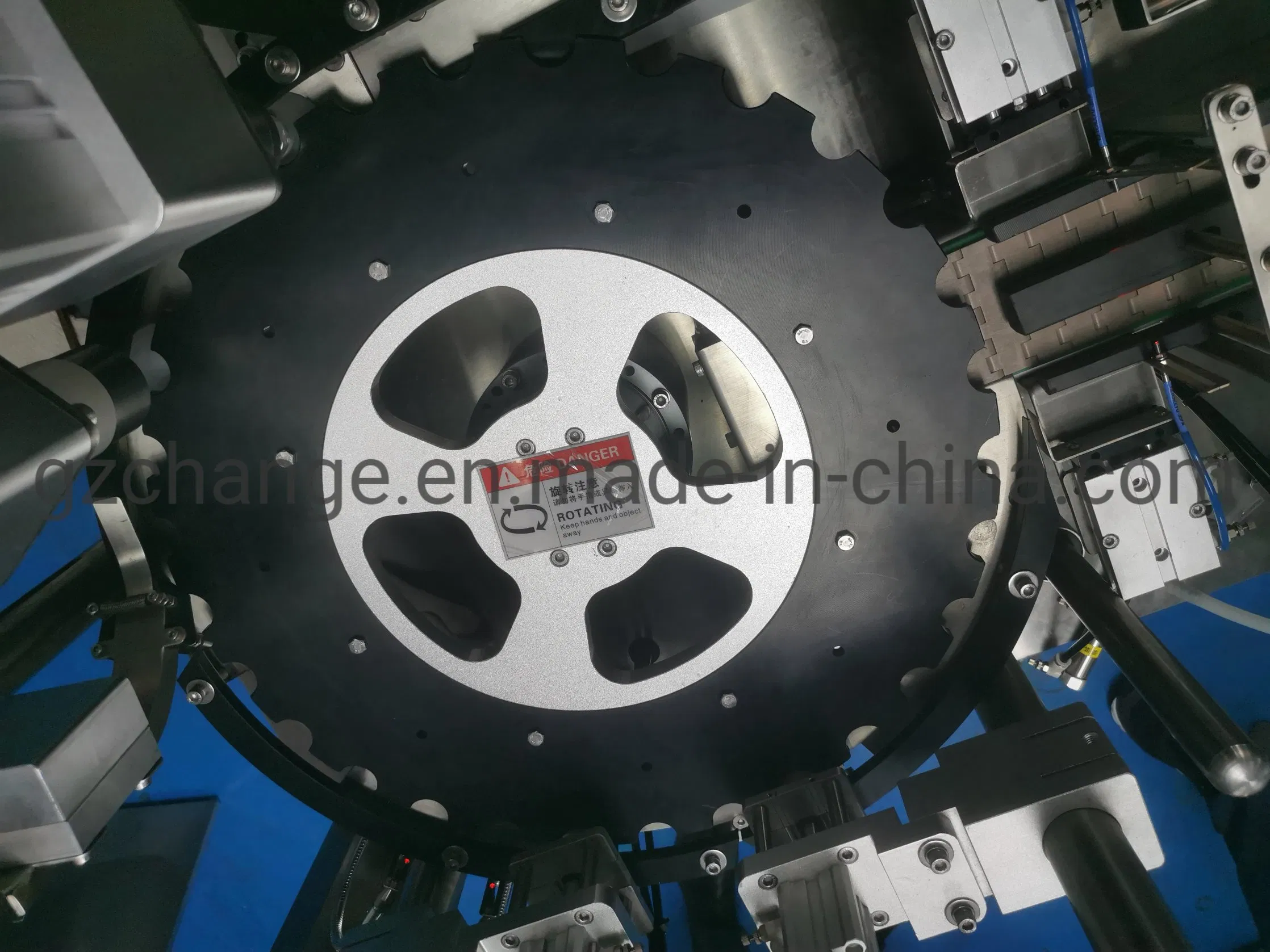

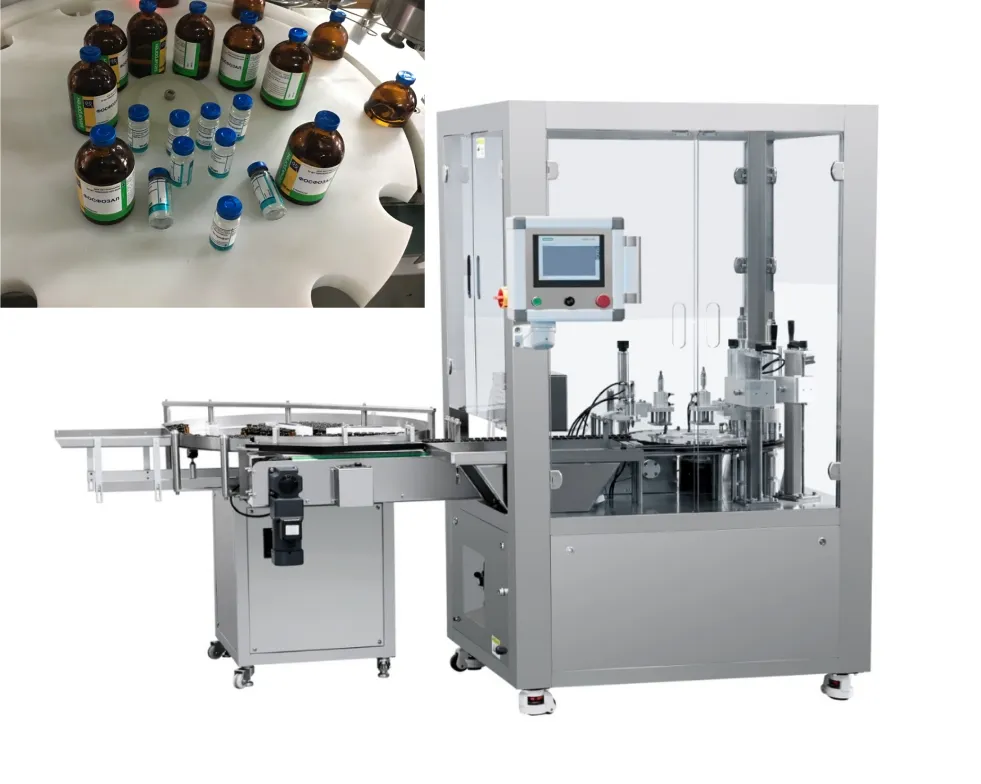

This high-precision monoblock system integrates bottle inlets, 2-peristaltic-pump filling, automatic stopper feeding & pressing, and an auto cap feeding-closing system. It is designed to automatically handle bottle-in, filling, rubber plug pressing, and cap closing. It is widely utilized across the food, chemical, pharmaceutical, and cosmetic industries.
The machine utilizes a PLC program control system paired with a touch screen interface for intuitive operation. Its monoblock design ensures a compact footprint while the graduator bottle positioning provides stability and easy adjustment for various bottle sizes.
Key Features
⚙️

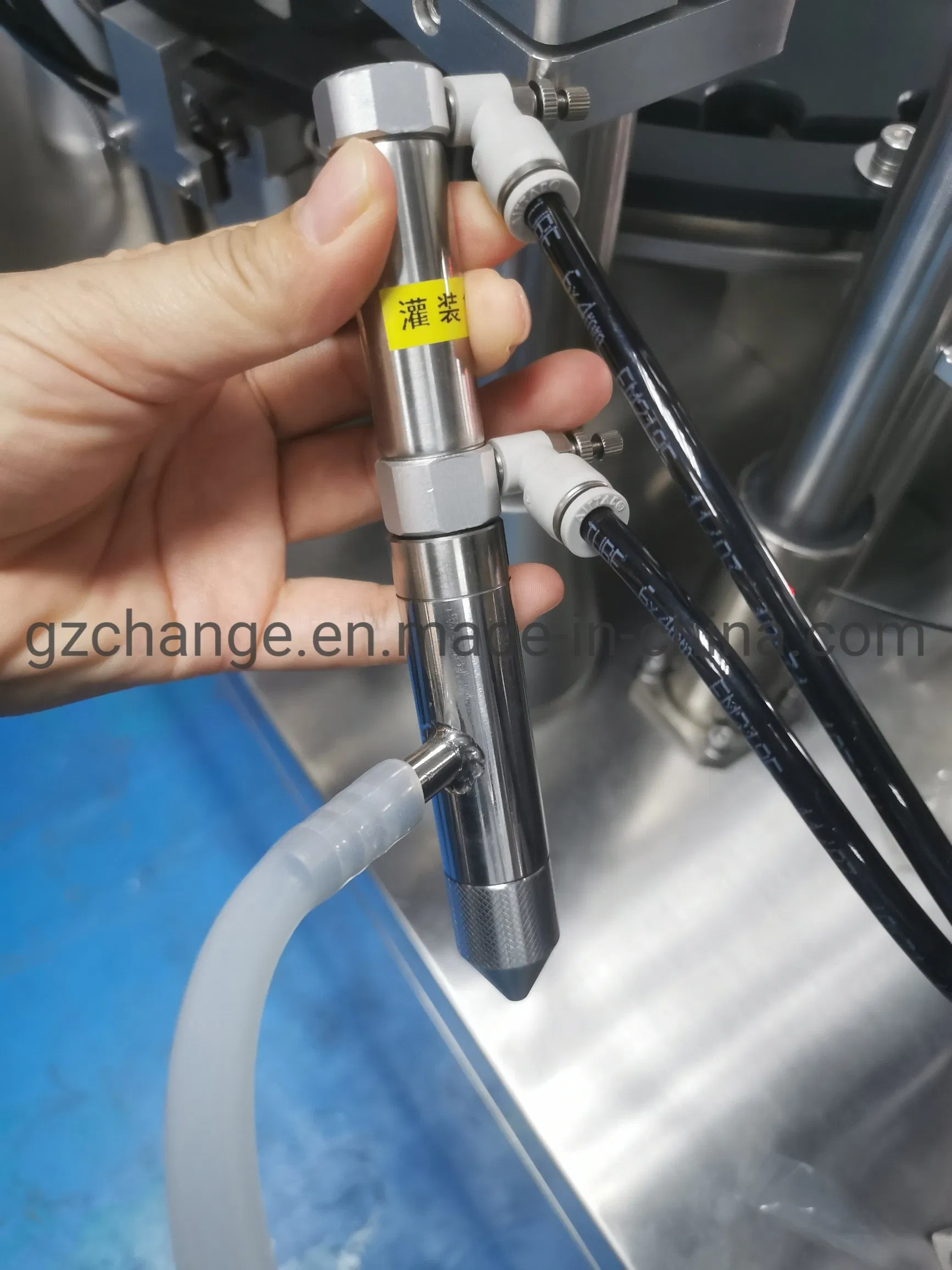

Precision Filling: 2-nozzle peristaltic-pump filling ensures high precision, fast operation, and easy maintenance.
📱
Advanced Control: Equipped with PLC control and frequency conversion. Features include "no filling without bottles" and auto counting.
🛡️
Premium Build: Contact parts are made of SUS316 stainless steel; other parts use SUS304. Fully compliant with GMP and CE standards.
🔧
Flexible Adjustment: Adjustable capping force to prevent damage to caps and bottles. Large adjusting scope for different specifications.
Technical Parameters
| Filling Nozzle | 2, 4 |
| Pressing Head | 1, 2 |
| Capping Head | 1, 2 |
| Filling Scope | 5ml - 150ml (Customizable) |
| Bottles Caliber | 10mm - 40mm (Customizable) |
| Capacity | 800-1000 BPH (100ml) |
| Filling Precision | ≤±1% |
| Air Pressure | 0.4 ~ 0.6MPa |
| Voltage | AC220V 50Hz 1P |
| Power | 1.5kw |
| G.W. | 600 kg |
| Dimension | L2500 × W1200 × H1750 mm |
Logistics & Service
💎 Warranty: One-year after-sales warranty. Engineer site installation and staff training are available upon request.
💳 Payment: 40% deposit by T/T before production, 60% balance before shipment. L/C is also accepted.
📦 Packaging: Standard export wooden case packing for maximum protection.
Frequently Asked Questions
What types of liquids can this machine handle?
The machine is designed for various liquids used in food, pharmaceutical, cosmetic, and chemical industries, specifically optimized for glass vial bottle filling.
How accurate is the filling process?
By adopting a high-precision peristaltic pump system, the machine achieves a filling precision of ≤±1%.
Can the machine accommodate different bottle sizes?
Yes. The filling scope (5ml-150ml) and bottle caliber (10mm-40mm) are customizable, and the graduator system makes it easy to adjust for different specifications.
What are the main construction materials?
To meet GMP standards, all parts in contact with material are made of SUS316 stainless steel, while the rest of the structure is SUS304.
What happens if a bottle is missing on the line?
The machine features an intelligent PLC control system with sensors that ensure "no filling without bottles," preventing product waste and mess.
What kind of after-sales support is provided?
We provide a 1-year warranty and a set of free spare parts. Engineers can be dispatched for on-site installation and staff training under agreed terms.
