| Model NO. | PBTB-160 | Automatic Grade | Automatic |
| Application | Cosmetics, Cleaning, Detergent, Dairy Products | Type | Counting Machine |
| Driven Type | Electric | Classification | Automatic Vertical Round Bottle Labeling Machine |
| Production Capacity | 20-160 Bottles/Minute | Label Length*Width | 20-240*10-180 mm |
| Bottle Size | 15-300 ml | Bottle Height | 30-300 mm |
| Voltage Frequency | 220V AC, 50/60Hz | Power | 1.1 Kw |
| Air Pressure/Consumption | 0.4 MPa / 0.2 M3/h | Weight | 250 Kg |
| Control System | Schneider PLC & HMI | Drive System | Panasonic Servo Motor |

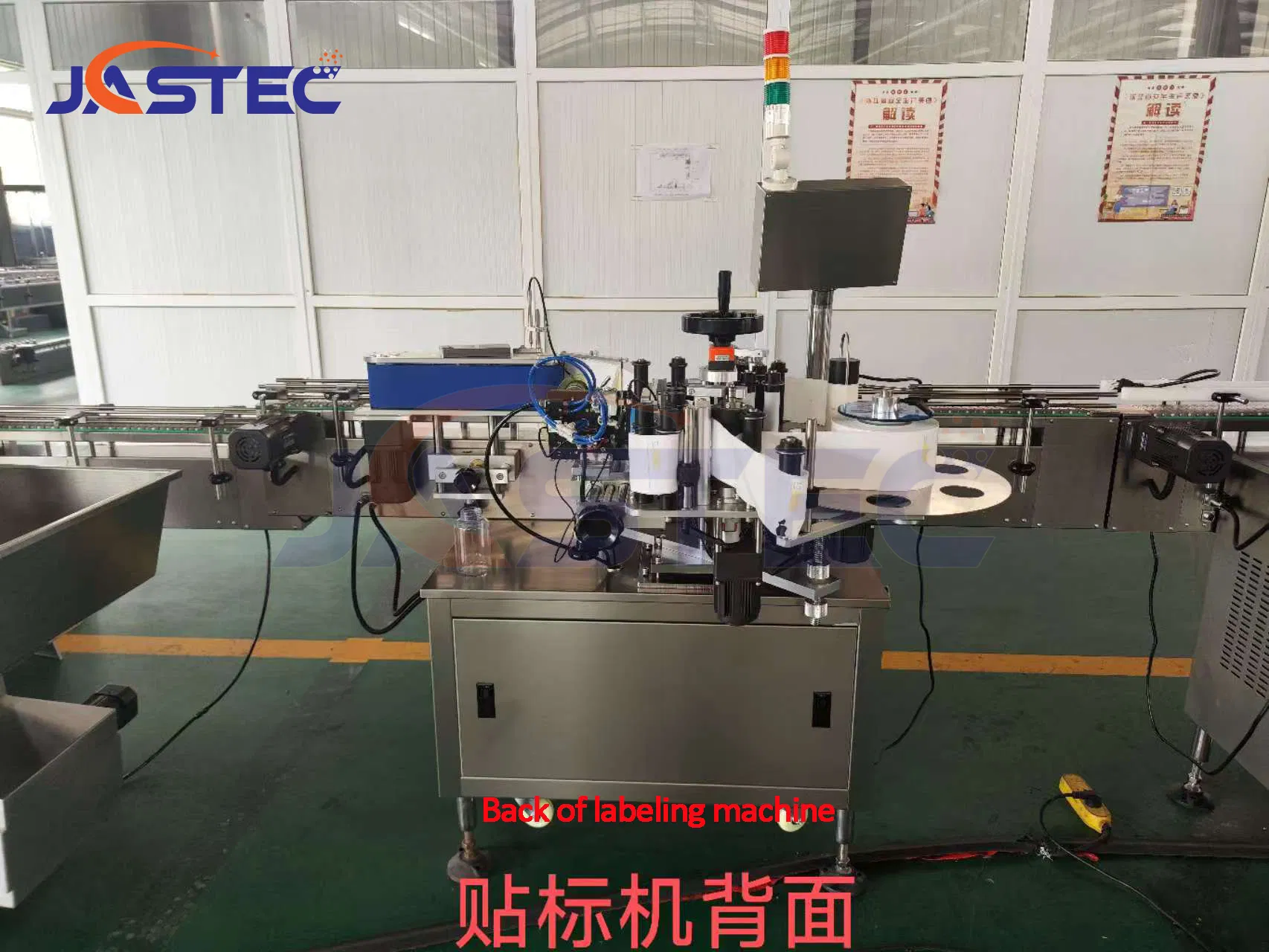

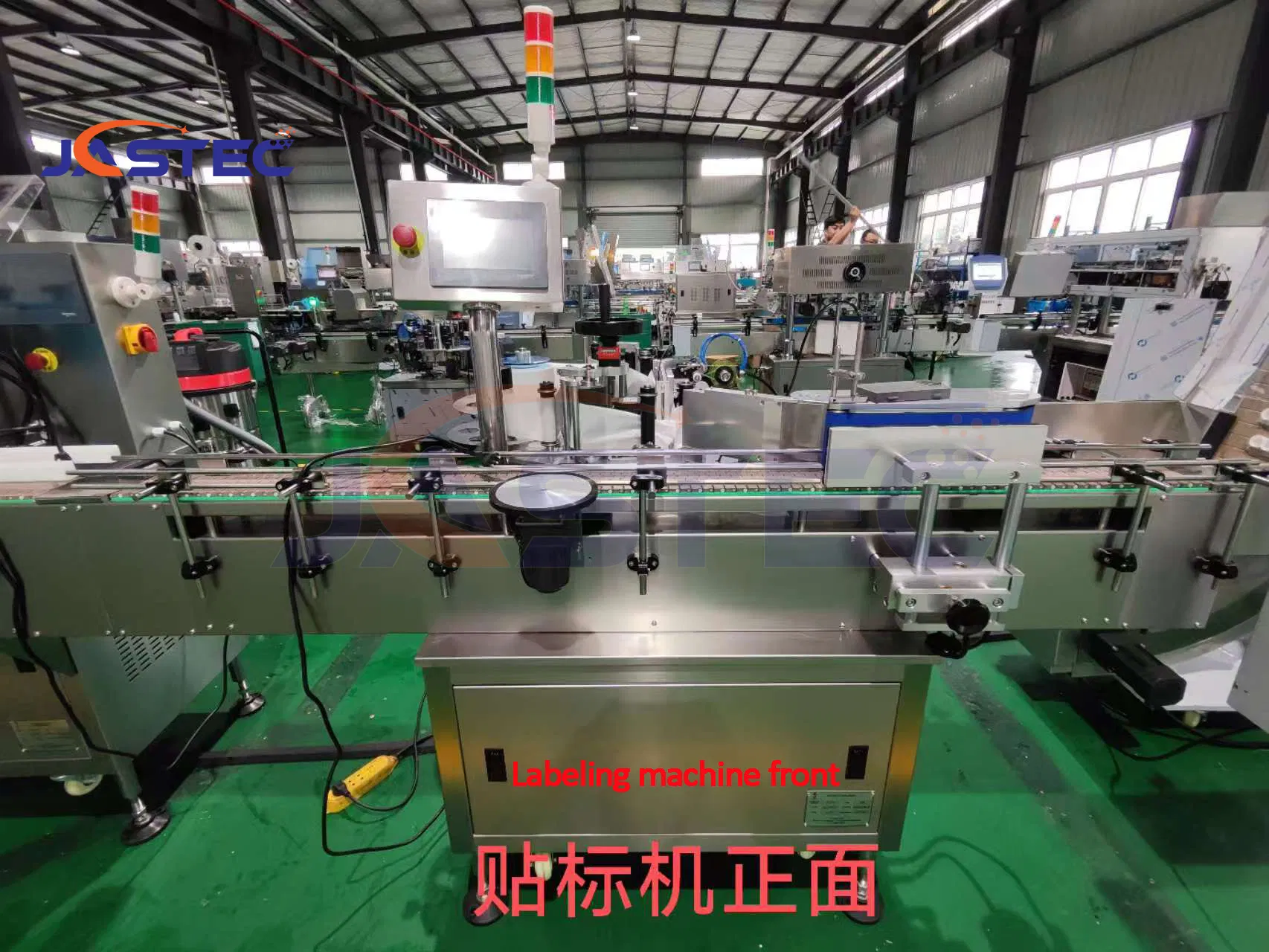

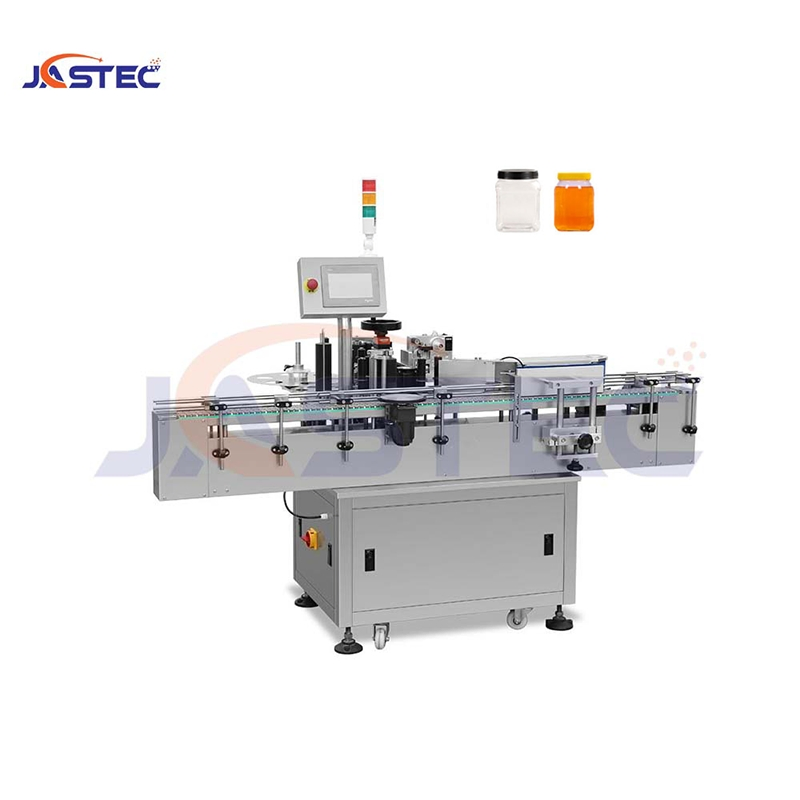

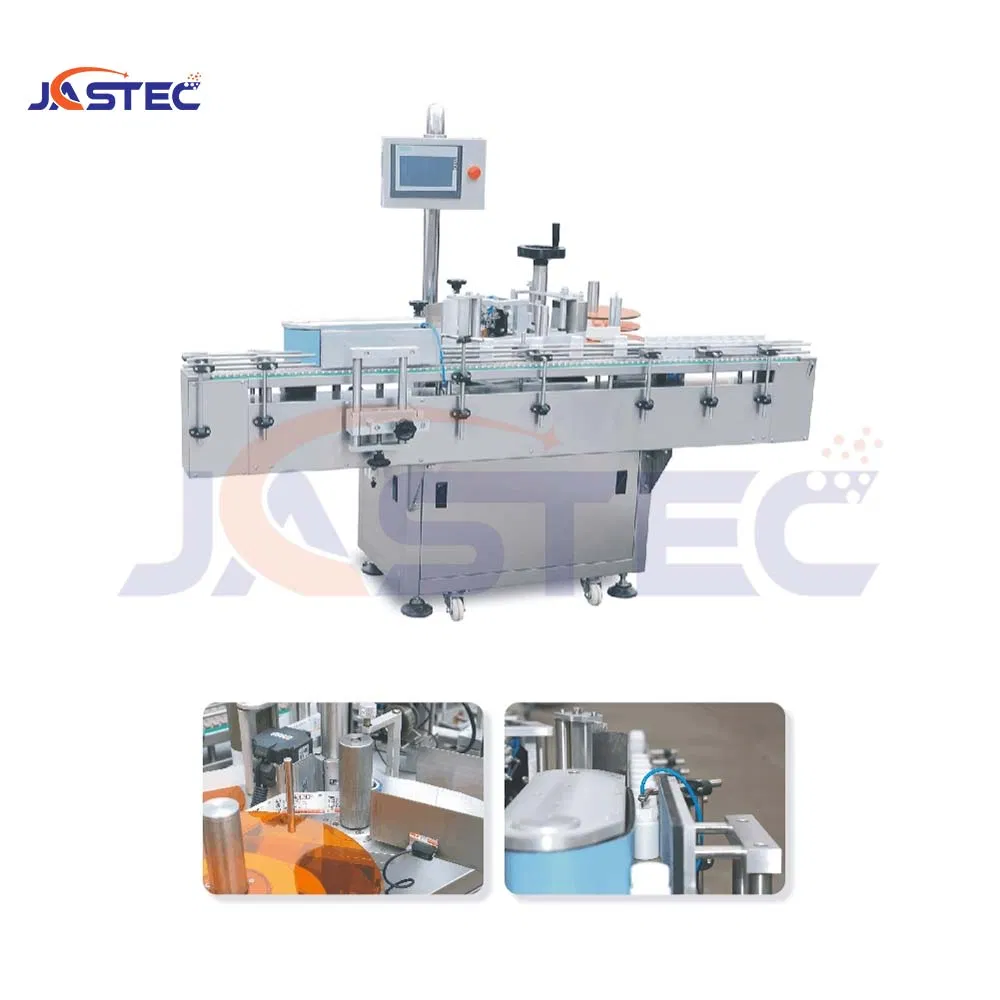

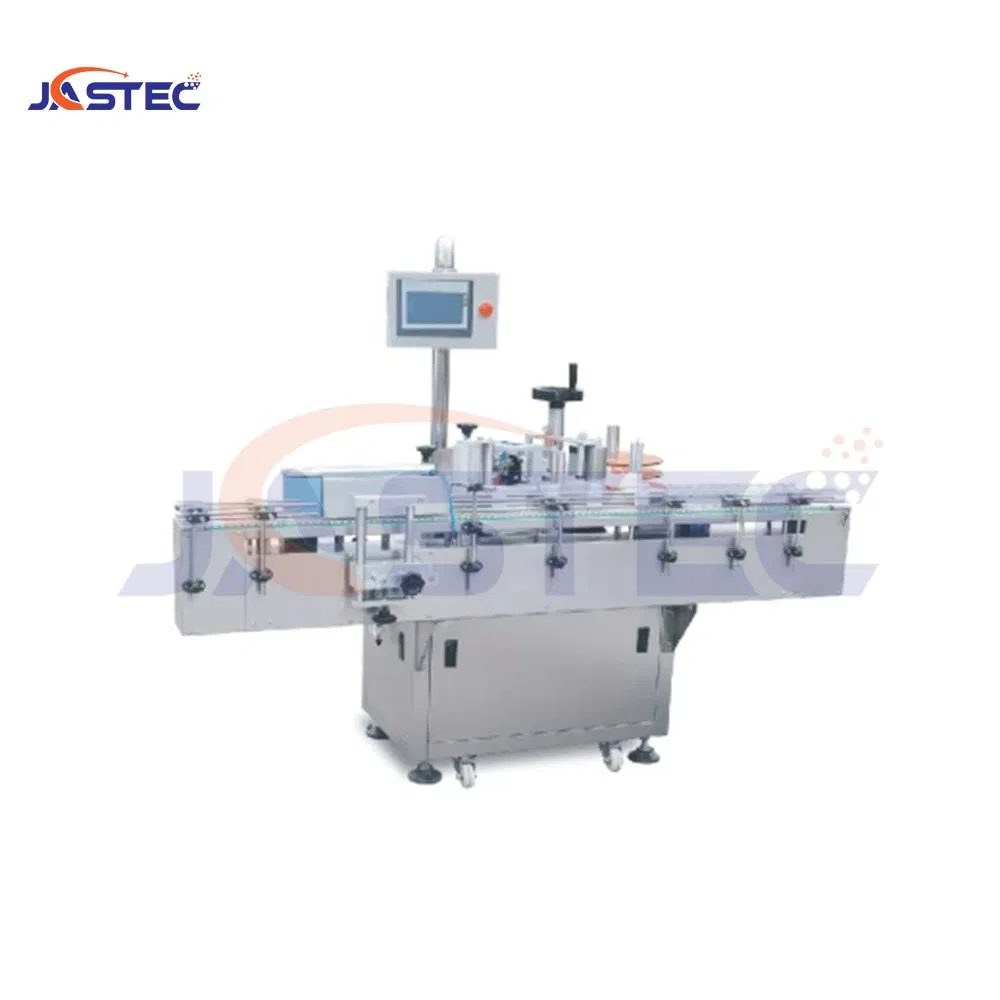

The PBTB-160 Self-Adhesive Labeling Machine is a state-of-the-art automated solution integrating precision mechanics, advanced electronics, and pneumatics. Engineered for high performance and reliability, it features a top-tier control system built around imported Schneider PLC, HMI, and inverter, coupled with precise Panasonic servo motor positioning for the label feeder. This ensures unparalleled labeling accuracy without slippage or deviation.
Operation is simplified through its intuitive human-machine interface, allowing easy parameter adjustments that are saved in real-time. The machine boasts exceptional stability and a rational, easy-to-maintain structure. Key innovations include a new linear roller device to prevent label issues and boost efficiency, an upgraded robust photoelectric frame, and a reliable silicone divider wheel.
| Project | Parameter |
|---|---|
| Production capacity (bottle/minute) | 20-160 (depending on the size of the item) |
| Label length*width (mm) | 20-240 * 10-180 |
| Bottle size (ml) | 15-300 |
| Bottle height (mm) | 30-300 |
| Voltage frequency | 220V AC, 50/60Hz |
| Power (KW) | 1.1 |
| Air pressure / consumption | 0.4 Mpa / 0.2 m³/h |
| Overall dimensions (mm) | 2000 * 1150 * 1650 |
| Weight (Kg) | 250 |

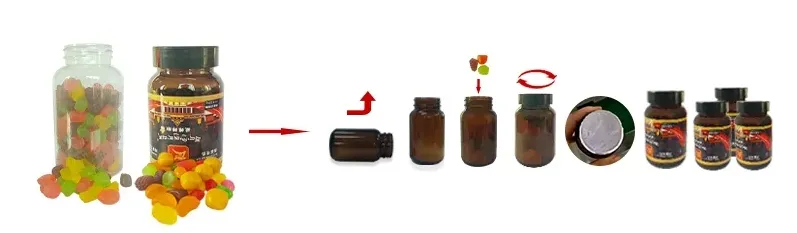

Ideal for: Pharmaceutical Industry (Vials, Containers), Food & Beverage (Jars), Cosmetic & Personal Care (Tubes), and Chemical Industry (Cans).
We provide comprehensive support including product customization, machine layout design, and pre-delivery testing to ensure seamless operation. Our after-sales service includes technical videos, online communication, and professional engineering support for installation and maintenance.

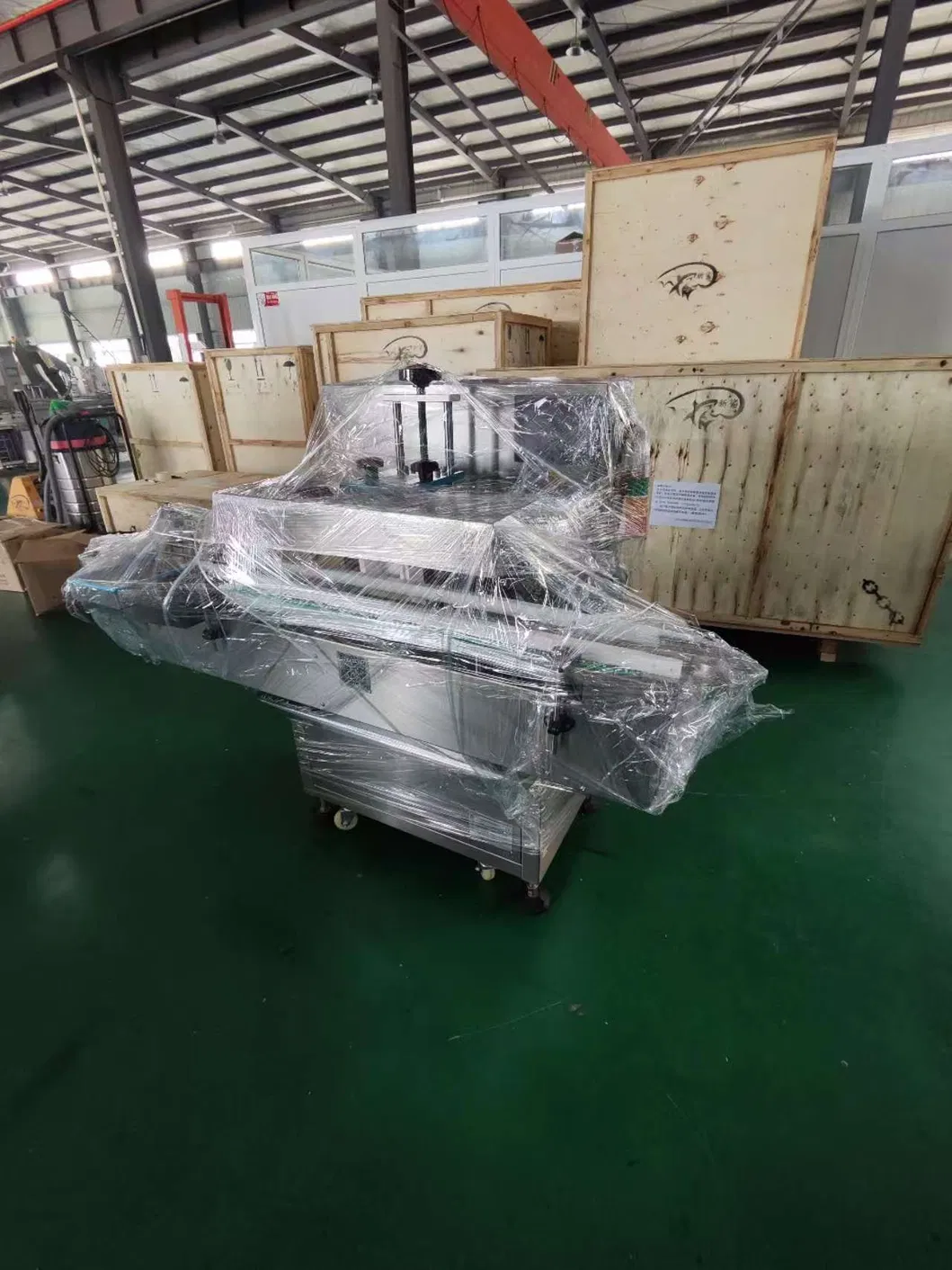

To better ensure the safety of your goods, professional, environmentally friendly, and efficient packaging services using reinforced wooden cases will be provided.
