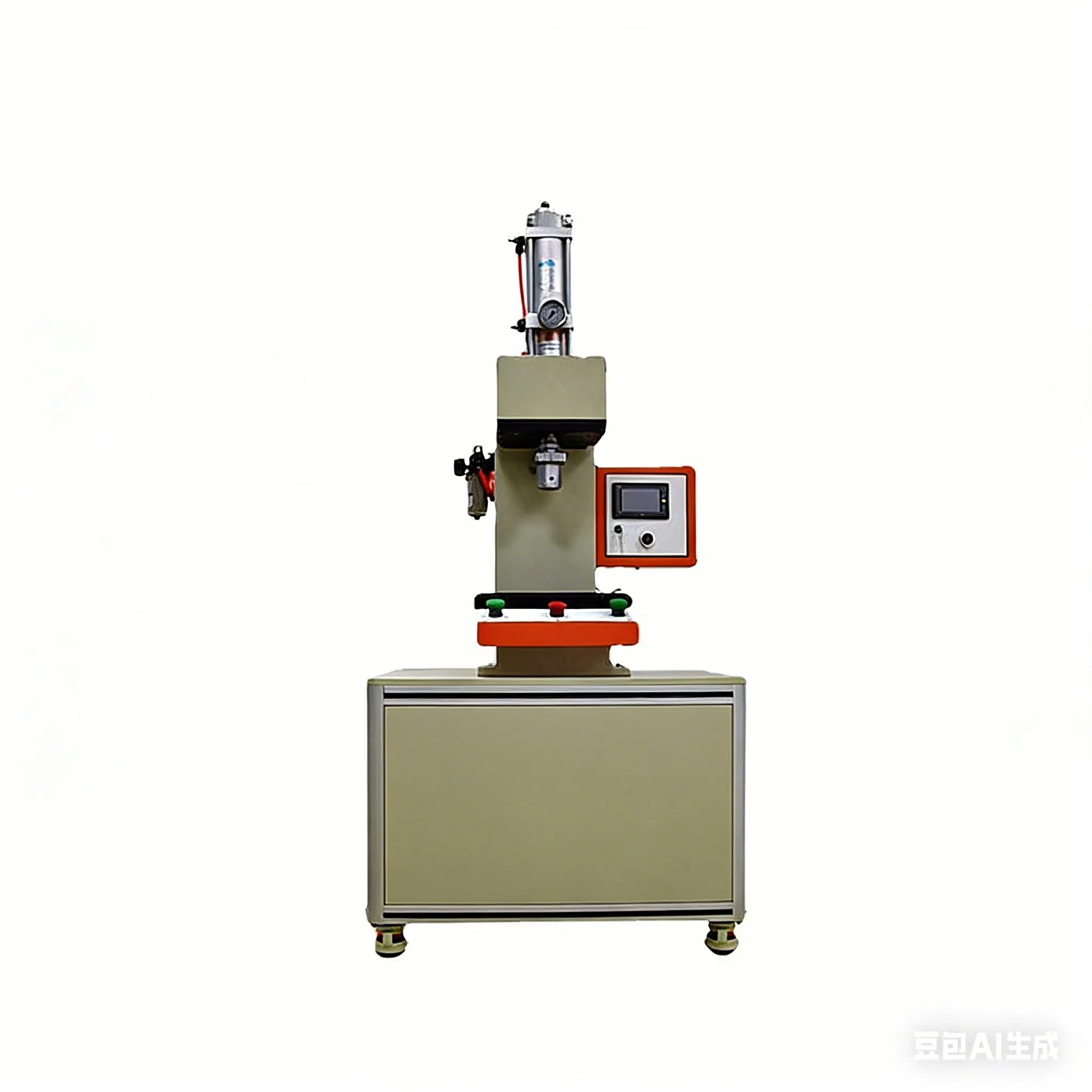

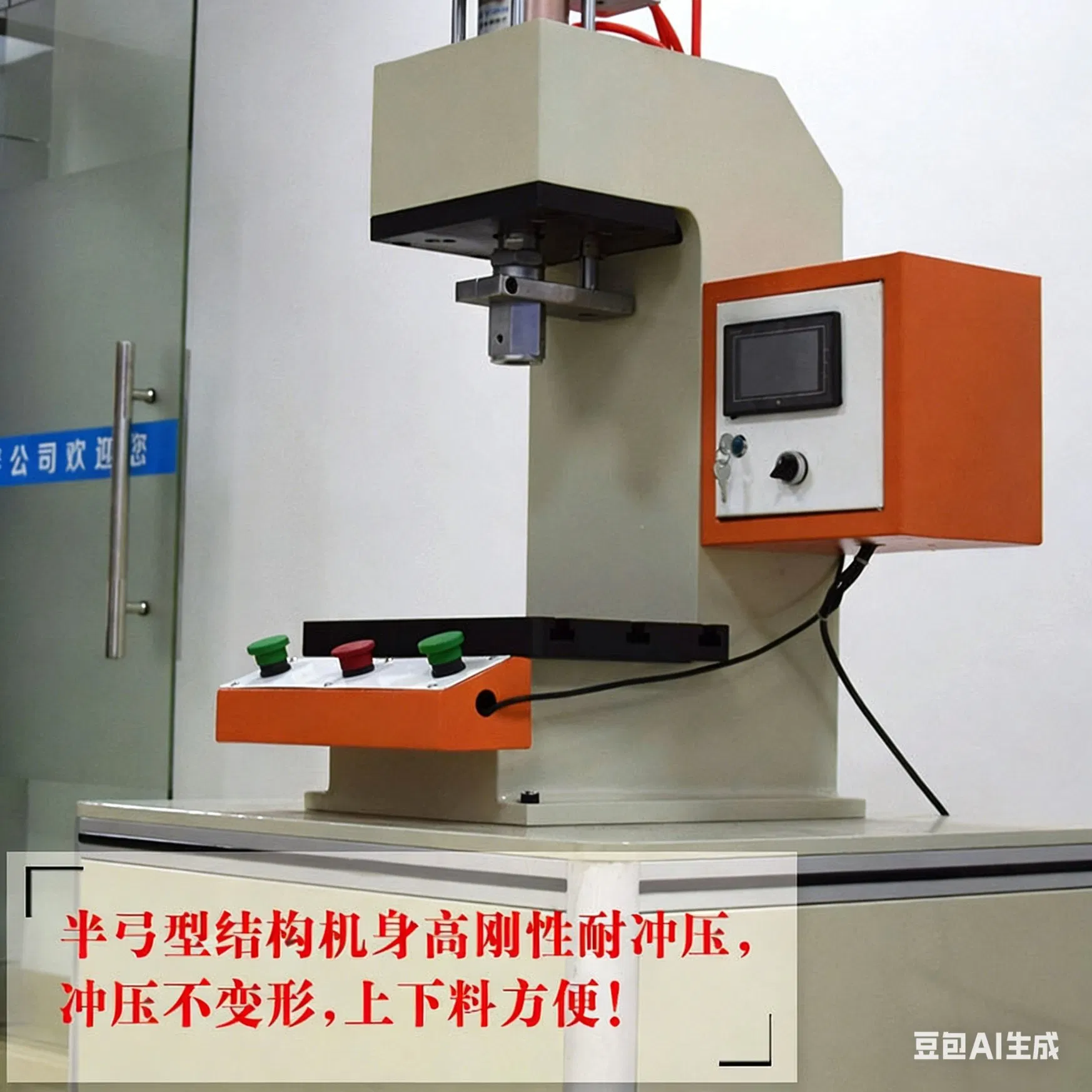

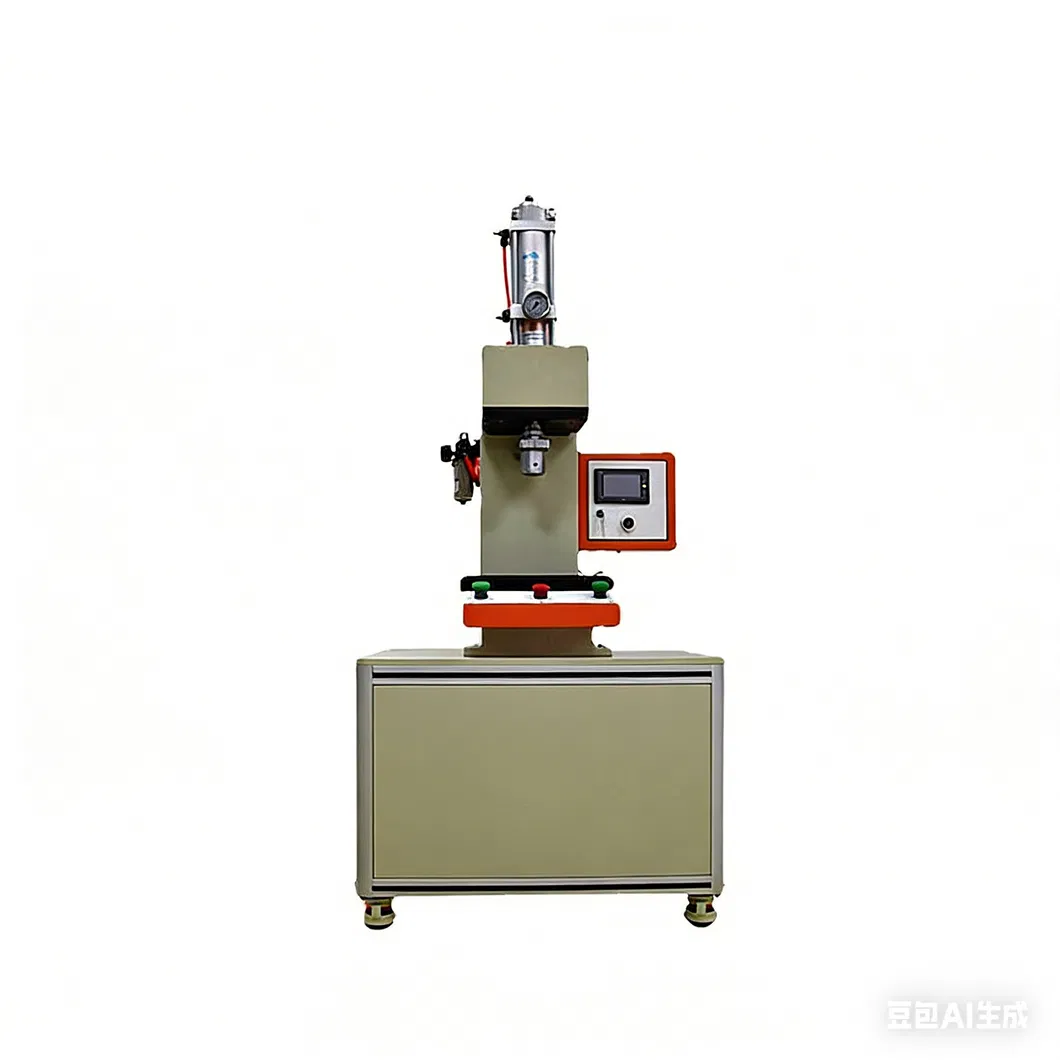

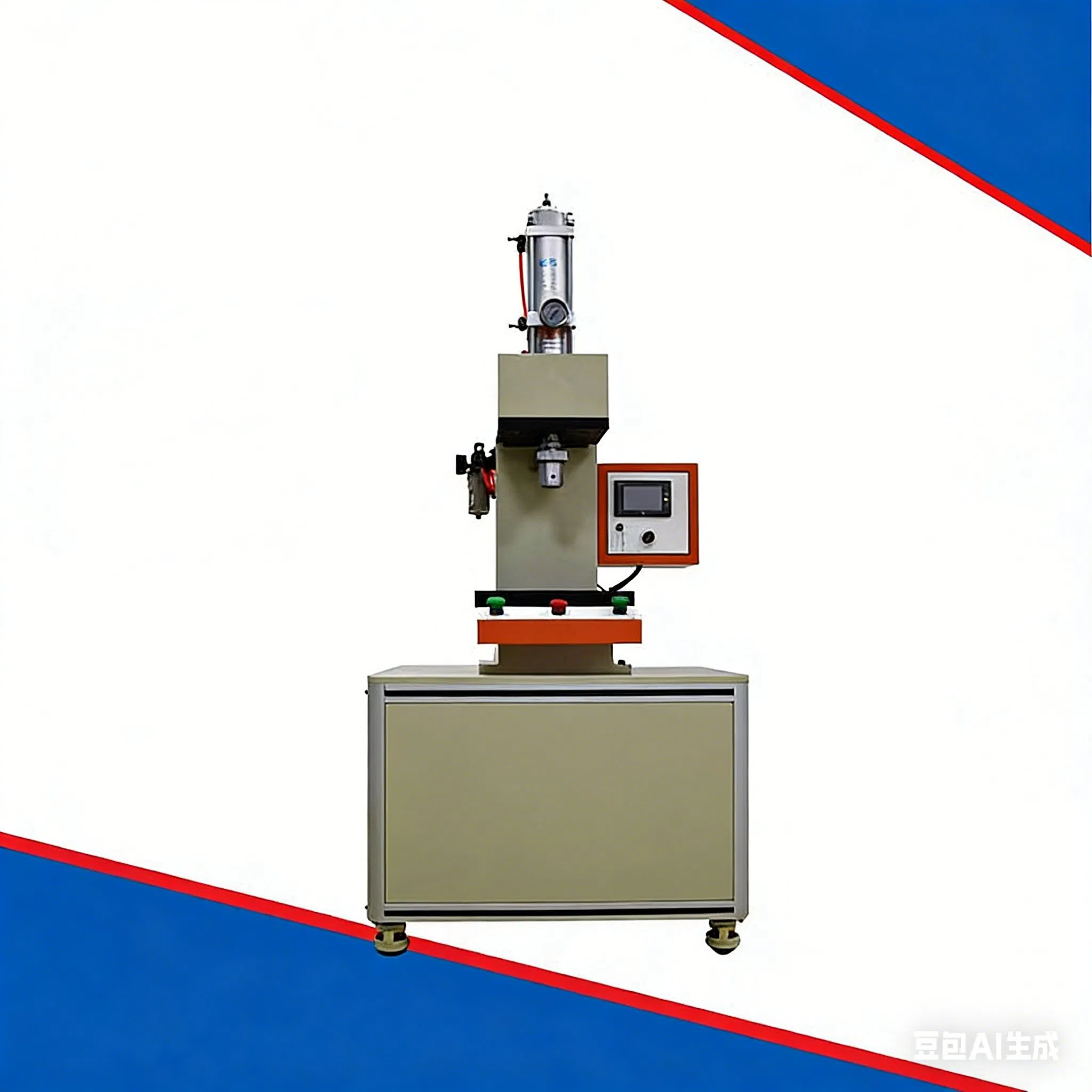

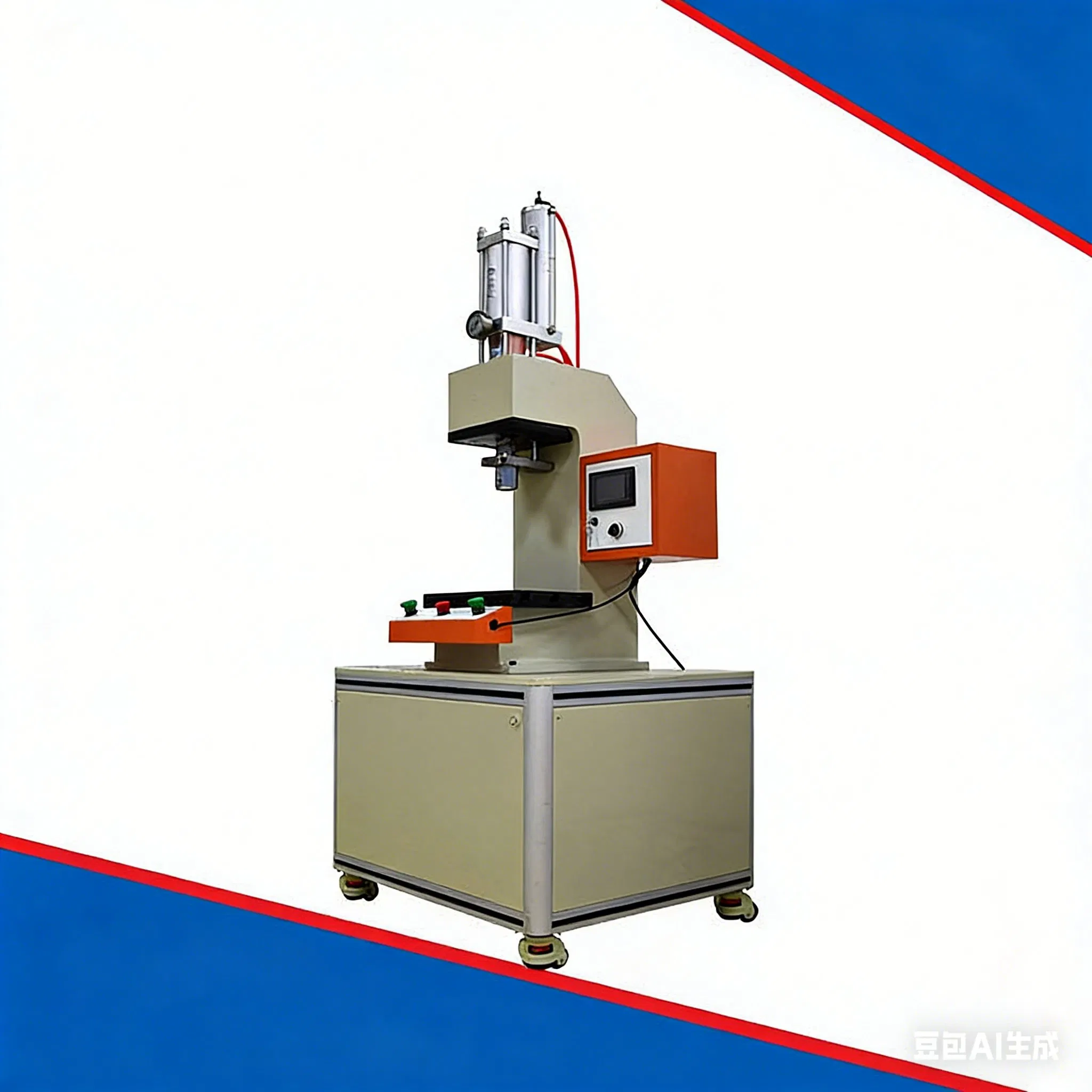

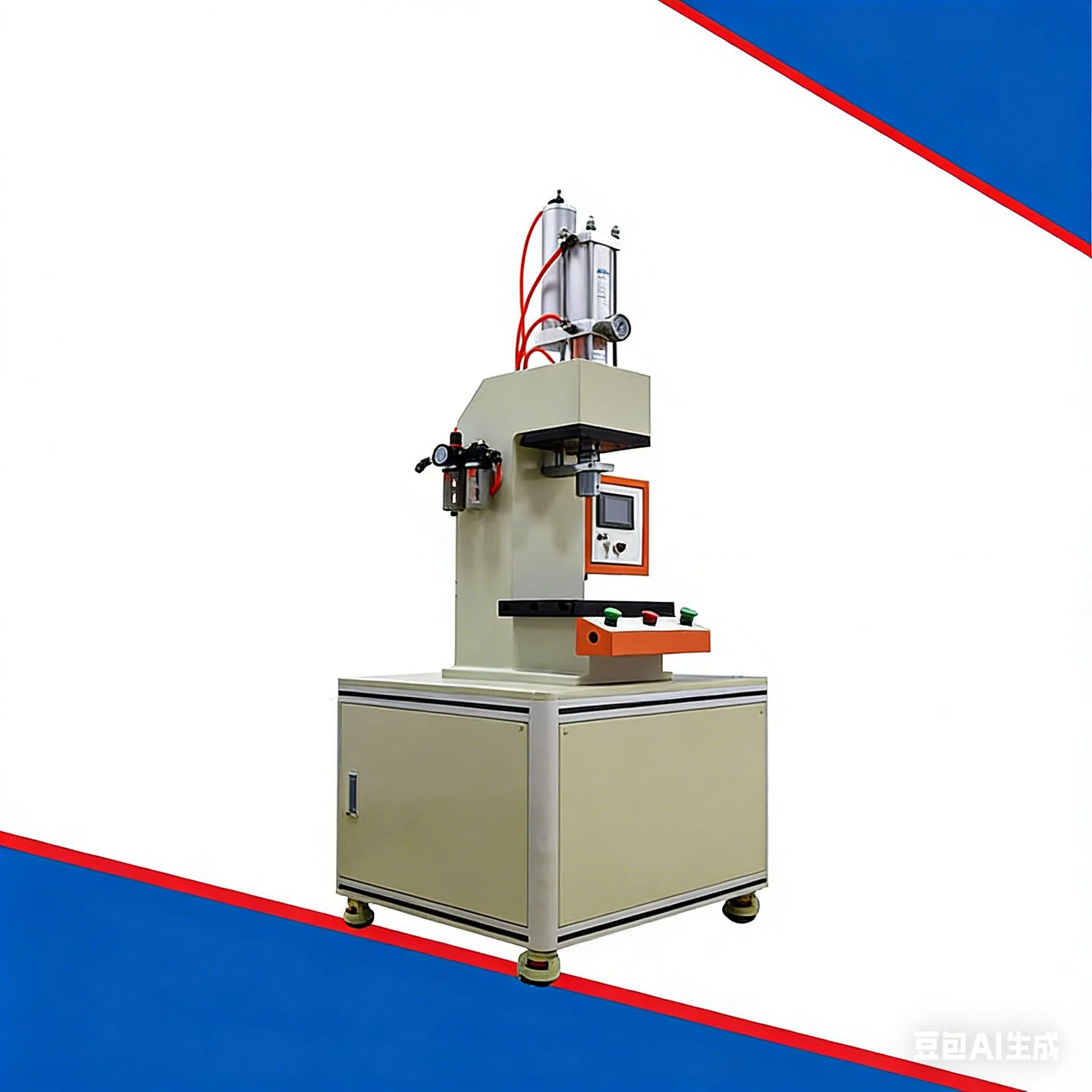

Advanced Semi-Arch Pneumo-Hydraulic Stamping Press for Precision Manufacturing

1 / 5

Advanced Semi-Arch Pneumo-Hydraulic Stamping Press for Precision Manufacturing

Customization:	Available
After-sales Service:	One Year
Warranty:	Technical Guidance

Send Inquiry

Product Description

📊

Basic Information

TypeGeneral Punching Machine

Punch ShapeOpen Punch

Controlling ModeArtificial

Automatic GradeAutomatic

Power SourceMechanical Drive

PrecisionHigh Precision

CertificationISO 9001

ConditionNew

Main Motor Power10kw

SpecificationCustomer Service

TrademarkJW

OriginChina

Production Capacity2000pieces/Year

⚙️

Technical Specifications

No.	Item	Specification
2	Actuating mode	Double action
3	Actuating conditions	4-7kg/cm² compressed air
4	Hydraulic oil	VG68# antiwear hydraulic oil
5	Working temperature	0-60ºC
6	Power	220V
7	Cylinder withstand pressure	12kg/cm²
8	Travel tolerance	+0.20mm 0.00mm
9	Running speed	30~100 times /min
10	Control methods	Electronic control, gas control, hand control, foot control

💡

Product Description & Features

🛠️

Easy Operation and Maintenance: The machine adopts a humanized control system, with simple operation interface, easy to learn and master; the structure is modularized, convenient for daily maintenance and parts replacement.

🛡️

Safe and Reliable: Equipped with multiple safety protection devices (such as emergency stop button, safety door, pressure overload protection), ensuring the safety of operators and equipment.

🔇

Low Noise and Pollution: The pneumatic-hydraulic system operates smoothly, with low noise (below 75dB), no oil leakage, and meets environmental protection requirements.

⏳

Long Service Life: The key components are made of high-quality alloy materials, precision processing and heat treatment, with high wear resistance and fatigue resistance, ensuring long-term stable operation.

💰

Cost-Effective: Compared with pure hydraulic presses, it has lower energy consumption and maintenance cost; compared with pure pneumatic presses, it has higher precision and output force, achieving high performance at a reasonable cost.

🖼️
